2. Installation and project overwiev
2−4
Festo P.BE−SFC−DC−PB−S7−E N en 0604NH

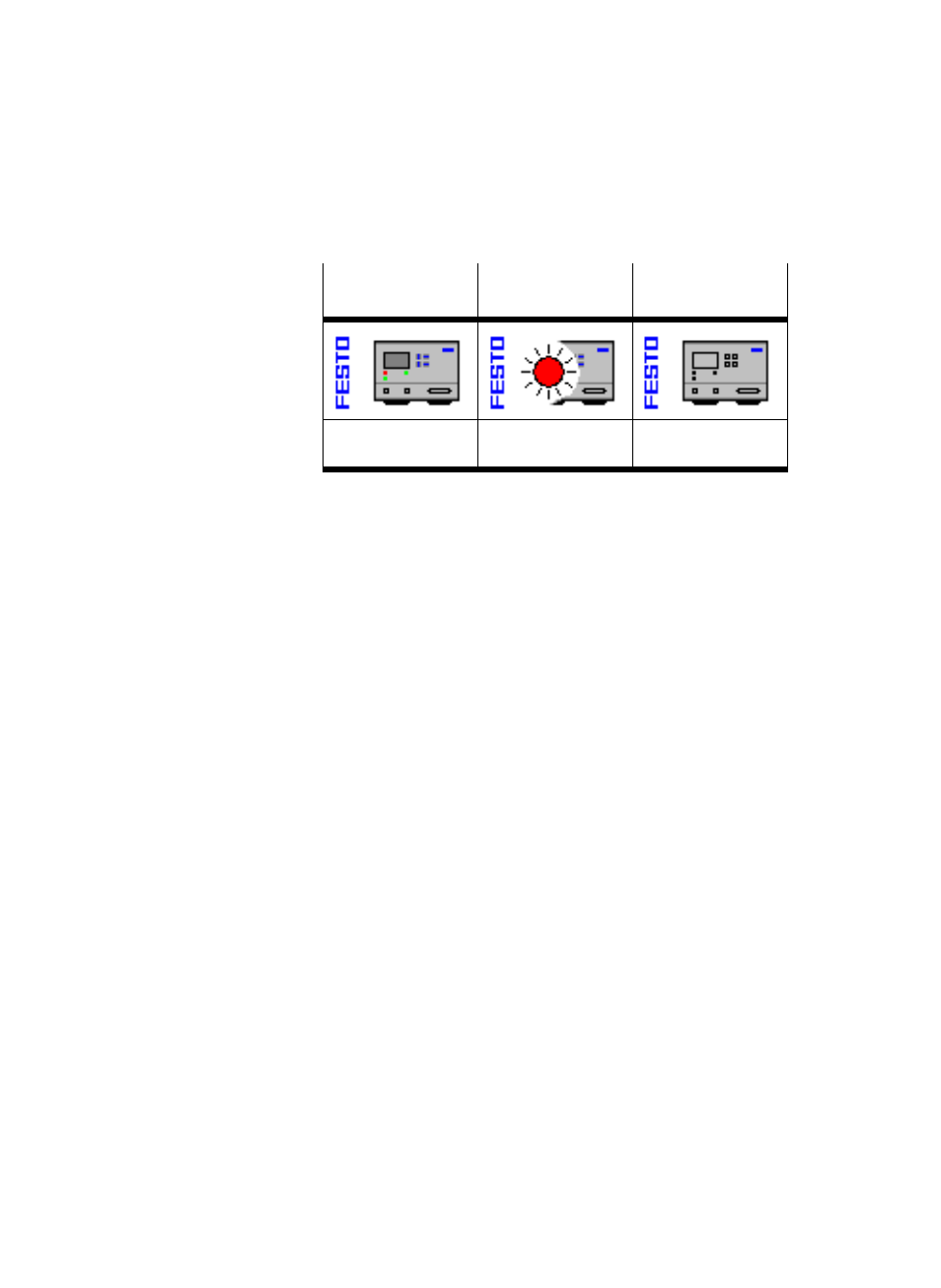

Normal operating
status Diagnostic case Special operating
status
File: sfc−dc_n.dib or
sfc−dc_n.bmp File: sfc−dc_d.dib or
sfc−dc_d.bmp File: sfc−dc_s.dib or
Tab. 2/1: Icon files
2.1.2 I/O configuration
Two configurations are supported by the GSD files:
ć Festo handling and positioning profile standard"
GSD entry as FHPP Standard",
8 bytes of I/O data, consistent transmission
ć Festo handling and positioning profile with parameter
channel"
GSD entry as FHPP Standard + FPC",
2 x 8 bytes of I/O data, consistent transmission
