Maintenance
Shaft surface check
Check the shaft surface for damage. Replace the shaft if it is damaged beyond reasonable
repair.
Rotor
Allowable runouts of the fully assembled rotor are listed in the Shaft and rotor runout
requirements table.
Table 1: Shaft and rotor runout requirements
Characteristic Requirement
Flexibility factor, L 4 /D 2 >1.9x10 9 mm
(3.0x10 6 in.)
Allowable shaft runout, TIR 40 µm
(0.0015 in.)
Component fit to shaft Interference
Allowable rotor radial runout, TIR* 60 um
(0.0025 in.)
*Total indicated runout of impeller hubs and sleeves

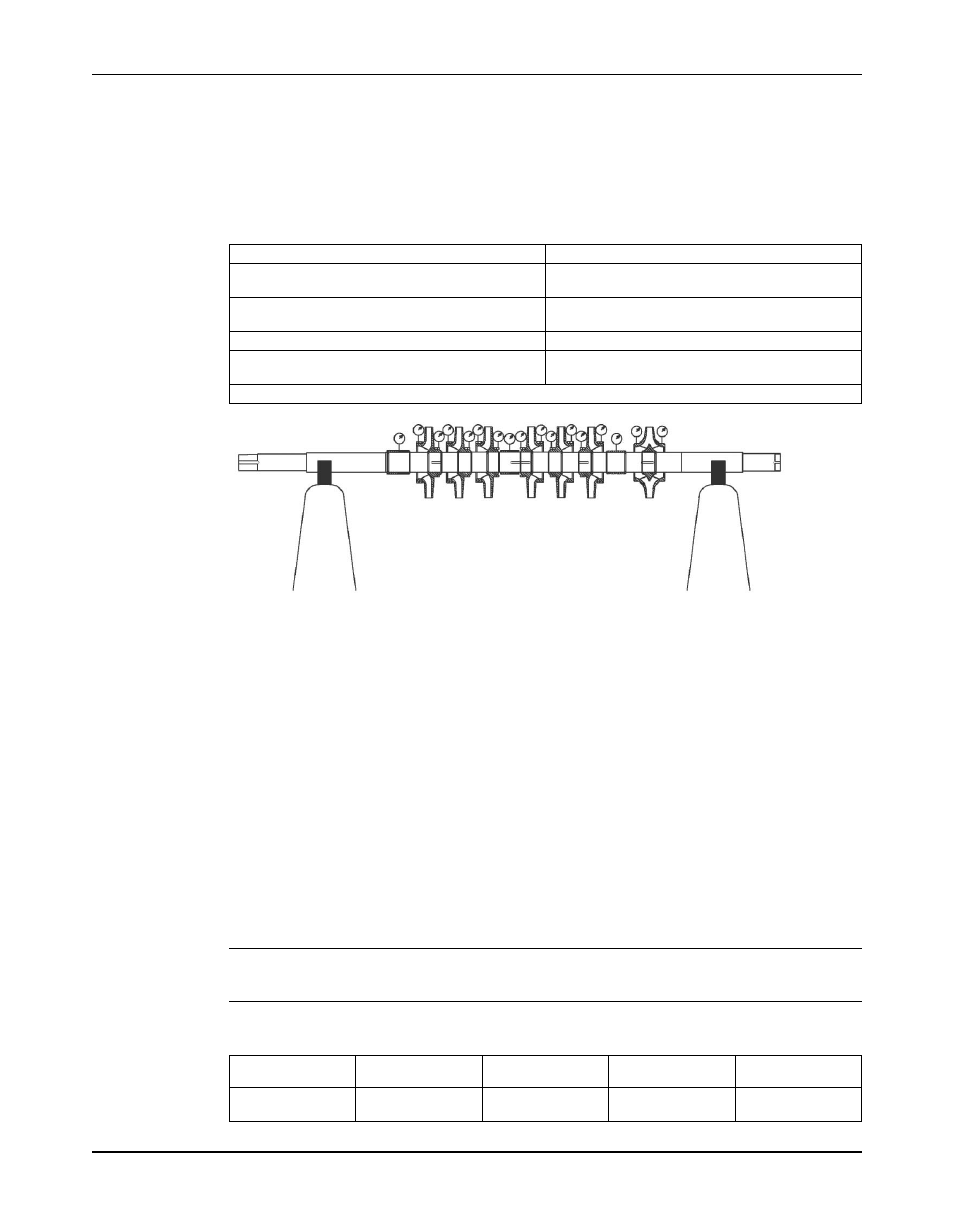

Figure 11: Fully assembled rotor
Bearings inspection
Condition of bearings
Do not reuse bearings. The condition of the bearings provides useful information on operating
conditions in the bearing frame.
Checklist
Perform these checks when you inspect the bearings:
• Inspect the bearings for contamination and damage.
• Note any lubricant condition and residue.
• Inspect the ball bearings to see if they are loose, rough, or noisy when you rotate them.
• Investigate any bearing damage to determine the cause. If the cause is not normal wear,
correct the issue before you return the pump to service.
Replacement bearings
Replacement bearings must be the same as, or equivalent to, those listed in this table.
NOTICE:
Thrust bearings must have machined bronze cages (retainers).
Table 2: Model 3600 ball bearing fits
Bearing numbers are based on SKF/MRC designations.
Pump size Radial bearing Thrust bearing Bearing housing Shaft turn
bore
3x4-8 6311 7311/BECBM 4.7244 2.1664
3x4-9 4.7253 2.1659
Model 3600, API 610 8th, 9th, 10th & 11th Editions (ISO 13709) Installation, Operation, and Maintenance Manual 71
