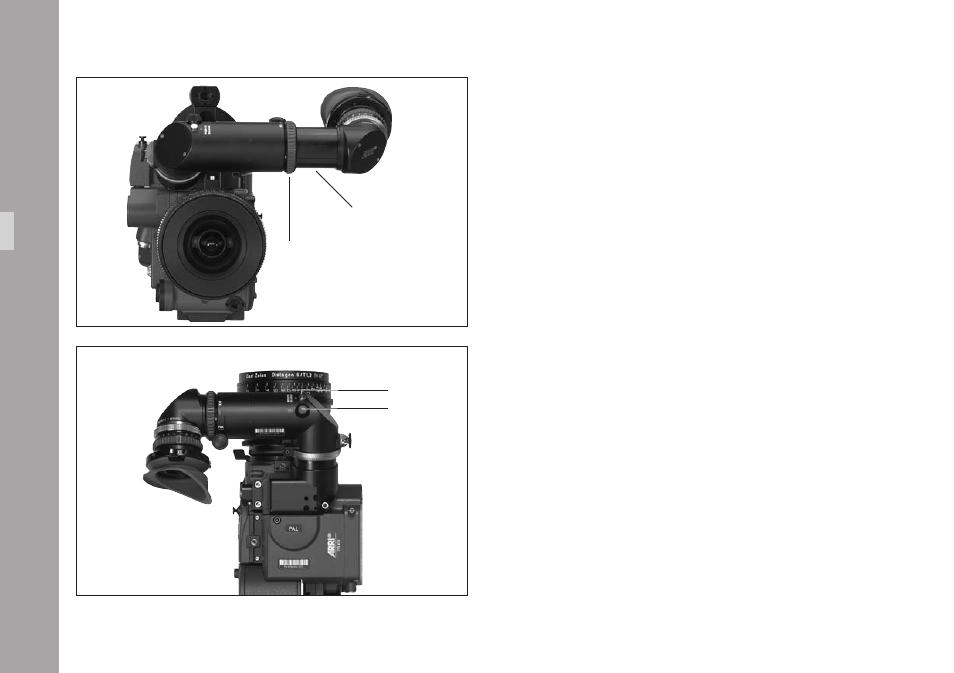

Extending the Viewfinder Arm
The viewfinder arm can be telescoped continuously by
approx. 40 mm.
• Turn the knurled ring a photo towards the “LOOSE”
position.
• Pull the viewfinder arm a photo out to the desired
length.
• Retighten the knurled ring.
Image Orientation Compensation
The viewfinder system is fitted with an automatic image
orientation compensation mechanism.
To enable setting a different image position in certain
situations, the viewfinder system is additionally equipped
with a manually adjustable image orientation mechanism.
Manually Adjusting Image Compensation
• Press the locking key a photo and hold pressed.
• Turn the adjustment knob a photo until the viewfinder
image is in the desired position.
Reactivating Image Compensation
• Turn the adjustment knob a photo until it locks in
position. Do not press the locking key.
Optic
s
locking button
adjustment knob
viewfinder arm
knurled ring
