Removing the Split Bridge Plate
from the Base Plate

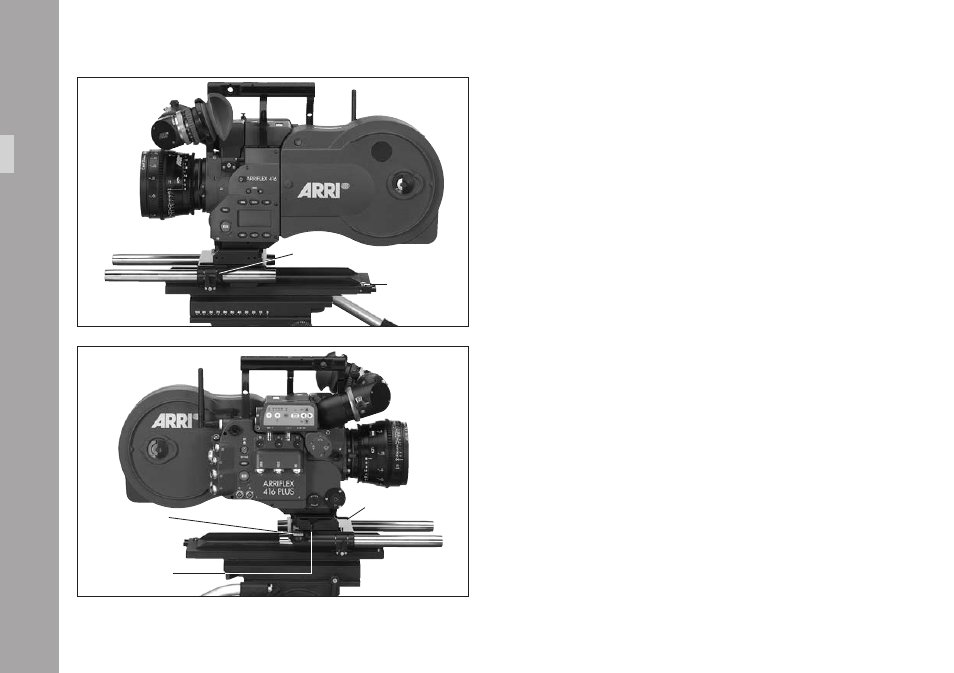

• Before removing the camera, make sure that all cables
are disconnected and that the eyepiece levelling rod is
detached.
• For fast removal of the bridge plate from the base
plate, loosen the sled clamping lever
a
, push in
the stop pin
a
and then pull the camera with
the Sled
a
from the base plate.
sled
release catch
In
stallation
accessory carrier
clamping lever
Removing the Camera from the Tripod
for Hand-held Operation
• Before removing the camera, make sure that all cables
are disconnected and that the eyepiece levelling rod is
detached.
• For fast removal of the camera from the tripod for
hand-held operation, loosen the accessory carrier
clamping lever
a
, push in the release catch
a
and then pull the camera with the Accessory
Carrier
a
away from the Sled.
stop pin
sled clamping lever
