8.2 Viewfinder System

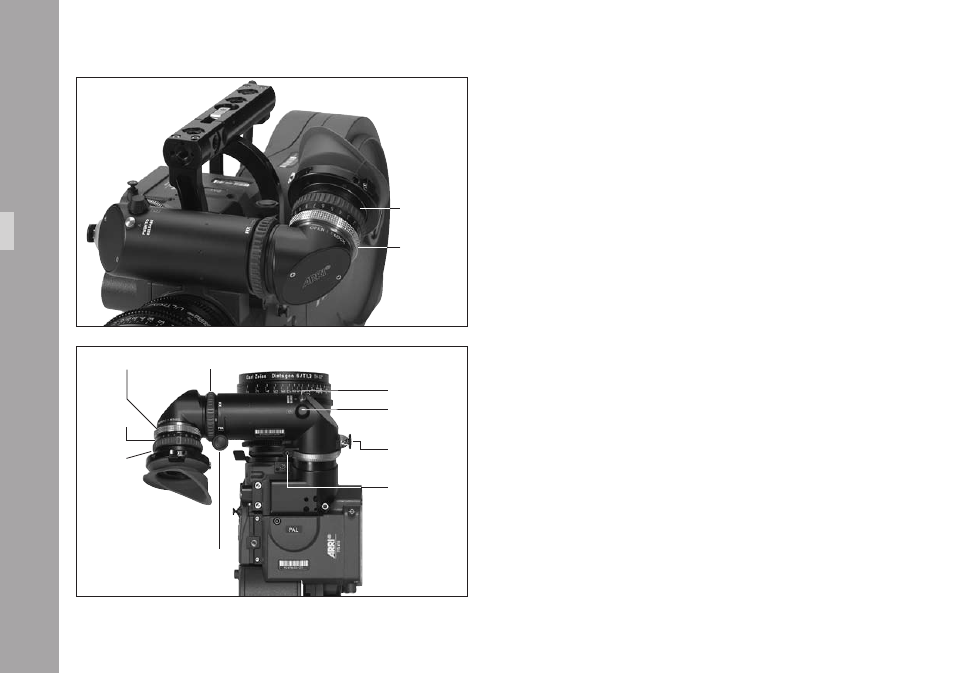

The viewfinder system on the ARRIFLEX 416 can be
swivelled in two axes. The viewfinder image is always
upright and correct left-to-right when the viewfinder is
swivelled within the main axes a photo .
An 80/20 beamsplitter for the video assist is integrated
into the camera body. The viewfinder and the video assist
can be used independently of each other.
The Eyepiece
Removing the Eyepiece
• Hold the eyepiece with one hand and with the other
turn the knurled ring (eyepiece) a photo in the
“OPEN” direction until it unscrews from the eyepiece.
• Remove the eyepiece a photo .
Attaching the Eyepiece
• Position the eyepiece on the viewfinder.
• Move the knurled ring (eyepiece) toward the eyepiece
a photo and turn the ring in the “LOCK” direction until
it tightens.
• Check that the eyepiece is correctly seated.
Optic
s
eyepiece
knurled ring
knurled ring (eyepiece)
diopter scale
eyepiece
knurled ring
knurled knob
locking button
adjustment knob
allen screw
unlocking key
