AT-S67 and AT-S68 User’s Guide
79
2. Type 1 to select Display Port Statistics. The Display Port Statistics
Window in Figure 28 is displayed.

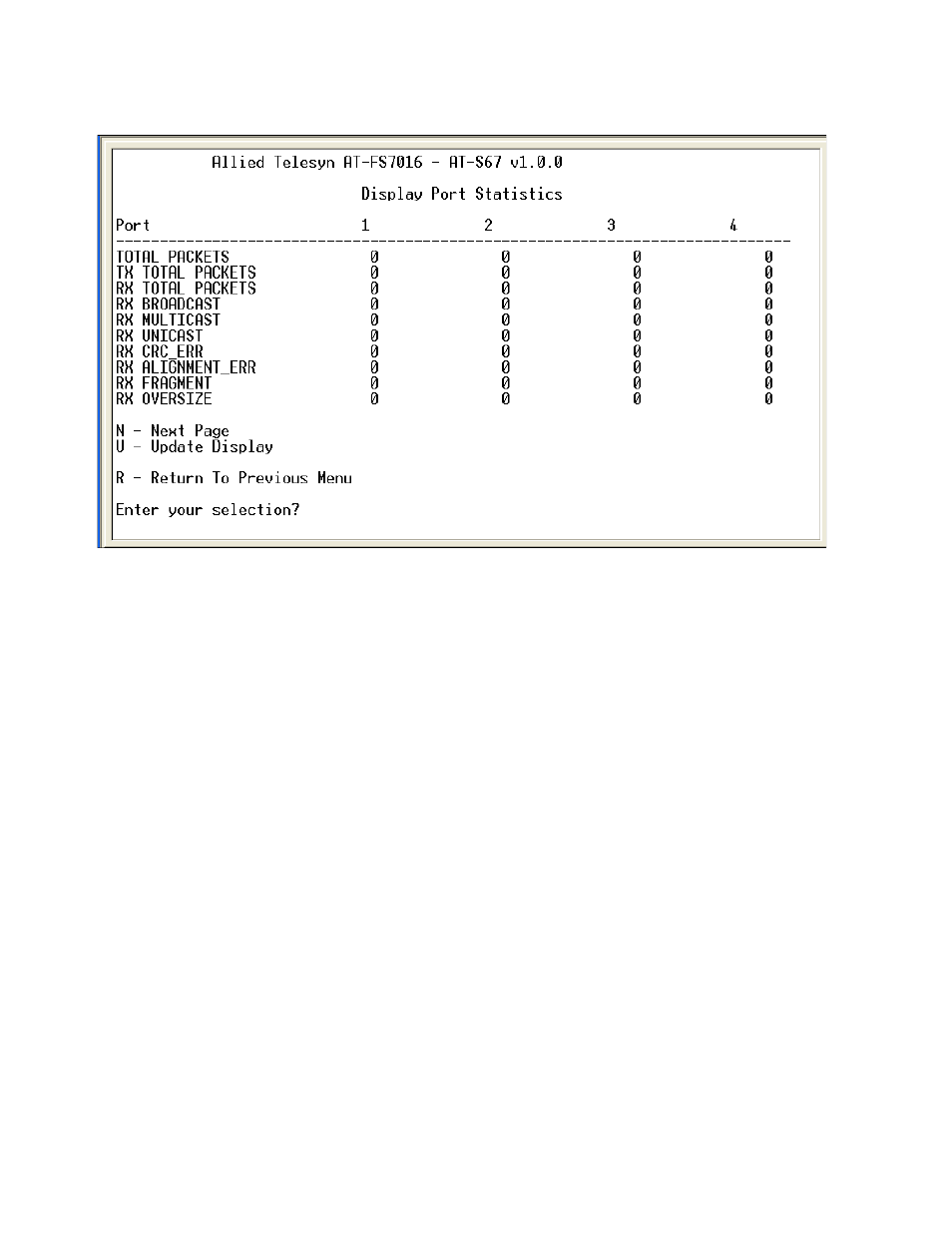

Figure 28 Display Port Statistics Window
The information in this window is for viewing purposes only. The
parameters are described below:
Total Packets
The total number of valid packets received and transmitted on
the port.
TX Total Packets
The total number of packets transmitted out the port.
RX Total Packets
The total number of packets received on the port.
RX Broadcast
The number of broadcast packets received on the port.
RX Multicast
The number of multicast packets received on the port.
RX Unicast
The number of unicast packets received on the port.
