Starting a Local Management Session

The AT-FS7016 and AT-FS7024 Smart Switches features a RS-232
Terminal Port. You can access the HyperTerminal interface through the
RS-232 port on the front of the switch.

Note

A switch does not need an IP address to be managed from a local
management session. You can start a session at any time on either
an AT-FS7016 or AT-FS7024 Smart Switch in your network. Running
a local management session does not interfere with the flow of
Ethernet traffic through the unit.

Starting a Local

Management

Session

To start a local management session, perform the following procedure:

1. Connect one end of a straight-through RS-232 cable with a DB-9

connector to the RS-232 Terminal Port on the switch. Refer to Figure
1.

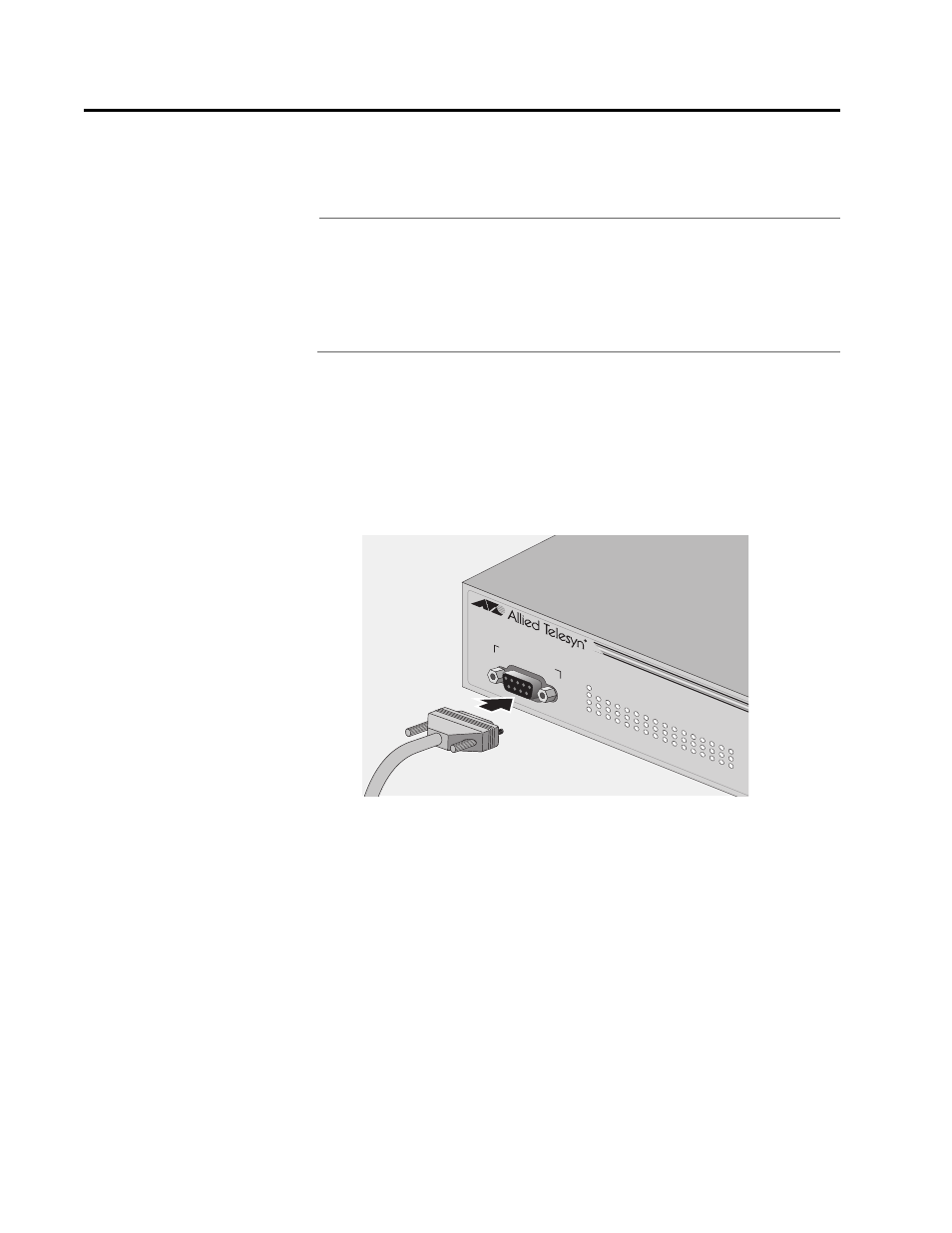

Figure 1 Connecting the RS-232 Cable to the RS-2332 Terminal Port

2. Connect the other end of the cable to the RS-232 port on a terminal

or PC with a terminal emulator program.

3. Configure the terminal or terminal emulator program as follow:

Baud per second: 9600

Data bits: 8

Stop bits: 1

Flow control: None

RS-232

TERMIN

AL PORT

POWER

LINK/ACT

100M

FDX

AT-FS701

16 Port Fast Ethernet Smart Switch
