Port Trunking
32
Displaying Port Trunks
To display a port trunk, perform the following procedure:
1. From the Main Menu, type 1 to select Port Menu. The Port Menu as
shown in Figure 3 on page 18 is displayed.
2. From the Port Menu, type 3 to select Port Trunking. The Port Trunking
Menu in Figure 9 on page 27 is displayed.
3. Type 3 to select Show Trunks. The Show Trunk Groups window in
Figure 12 is displayed.

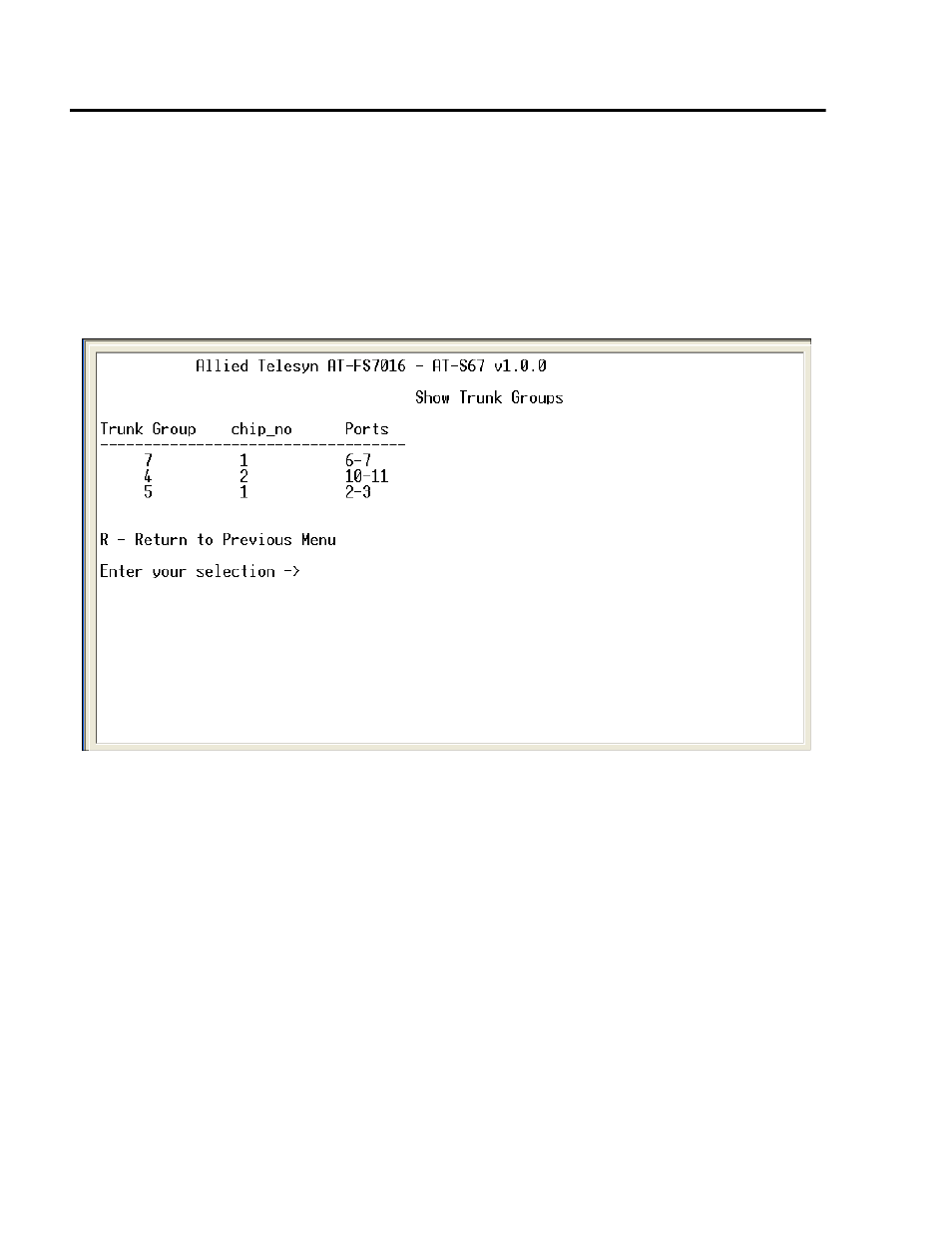

Figure 12 Show Trunk Groups Window
The information in this window is for viewing purposes only.
4. Type R to Return to Previous Menu.
You will be returned to the Port Trunking Menu.
