Virtual LANs
54
Modifying a VLAN
To modify a VLAN, you must know the VID of the VLAN that you want to
modify. To view the VLAN’s ID, refer to Showing VLANs on page 59.
To modify a VLAN, perform the following procedure:
1. From the Main Menu, type 2 to select VLAN Menu. The VLAN Menu in
Figure 17 on page 50 is displayed.
2. From the VLAN Menu, type 2 to select Modify VLAN. The Modify VLAN
Menu in Figure 20 is displayed.

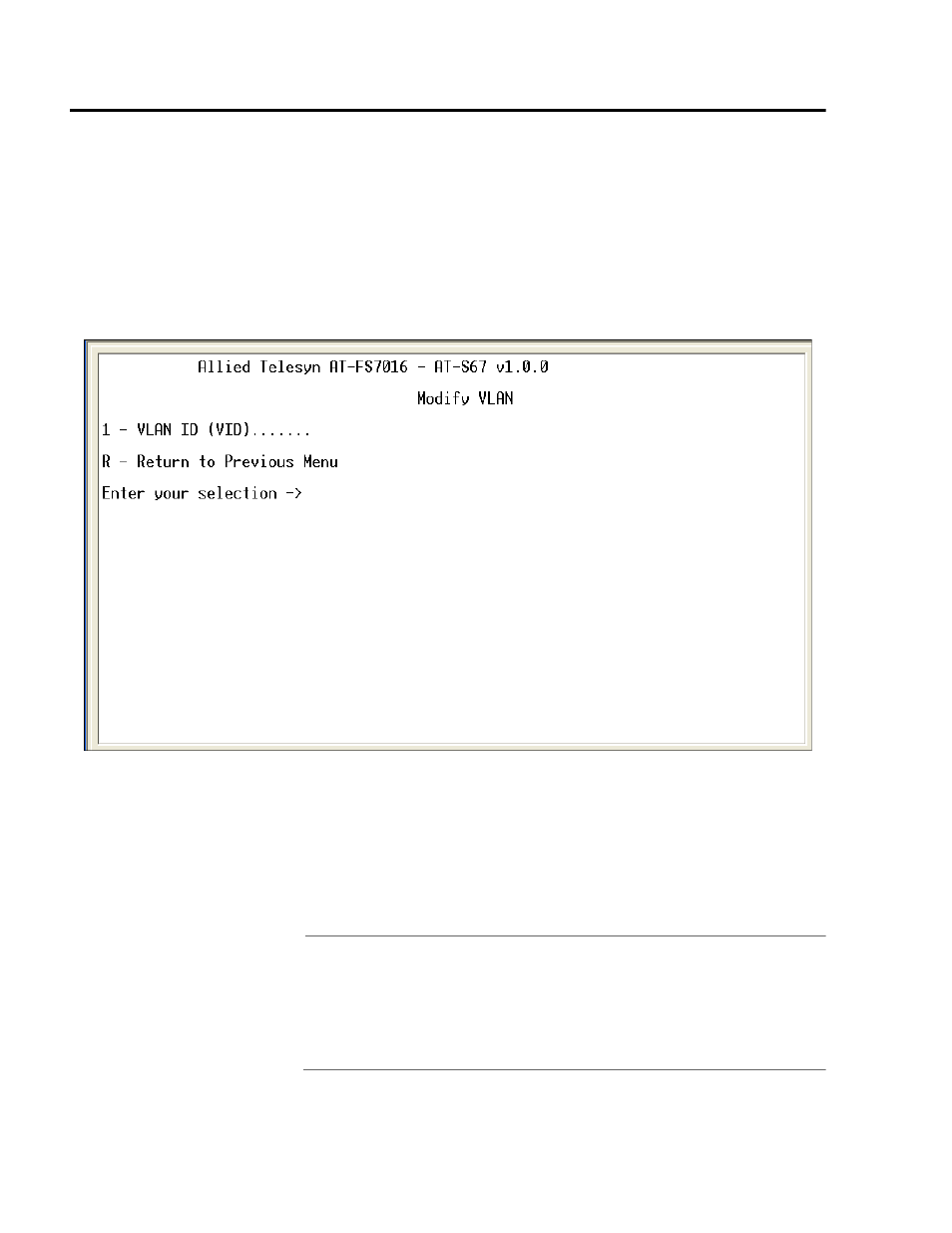

Figure 20 Modify VLAN Menu
3. Type 1 to select VLAN ID (VID). The VLAN ID is used to identify which
VLAN you want to modify. The following prompt is displayed:
Enter new value [1 to 26] ->
Note
If you have forgotten the VLAN ID, type R twice then 2 to show
VLANs. Type N to scroll through the configured VLANs until you
identify the VLAN ID needing modification. Note the VLAN ID and
return to the VLAN Menu by typing R then 1 and then 2 to return to
the Modify VLAN Menu.
4. Enter the VID of the VLAN you want to modify and press .
