AT-S67 and AT-S68 User’s Guide
63
Configuring Port-based QoS
To configure the QoS, perform the following procedure:
1. From the Main Menu, type 3 to select QoS Menu. The QoS Menu
shown in Figure 23 is displayed.

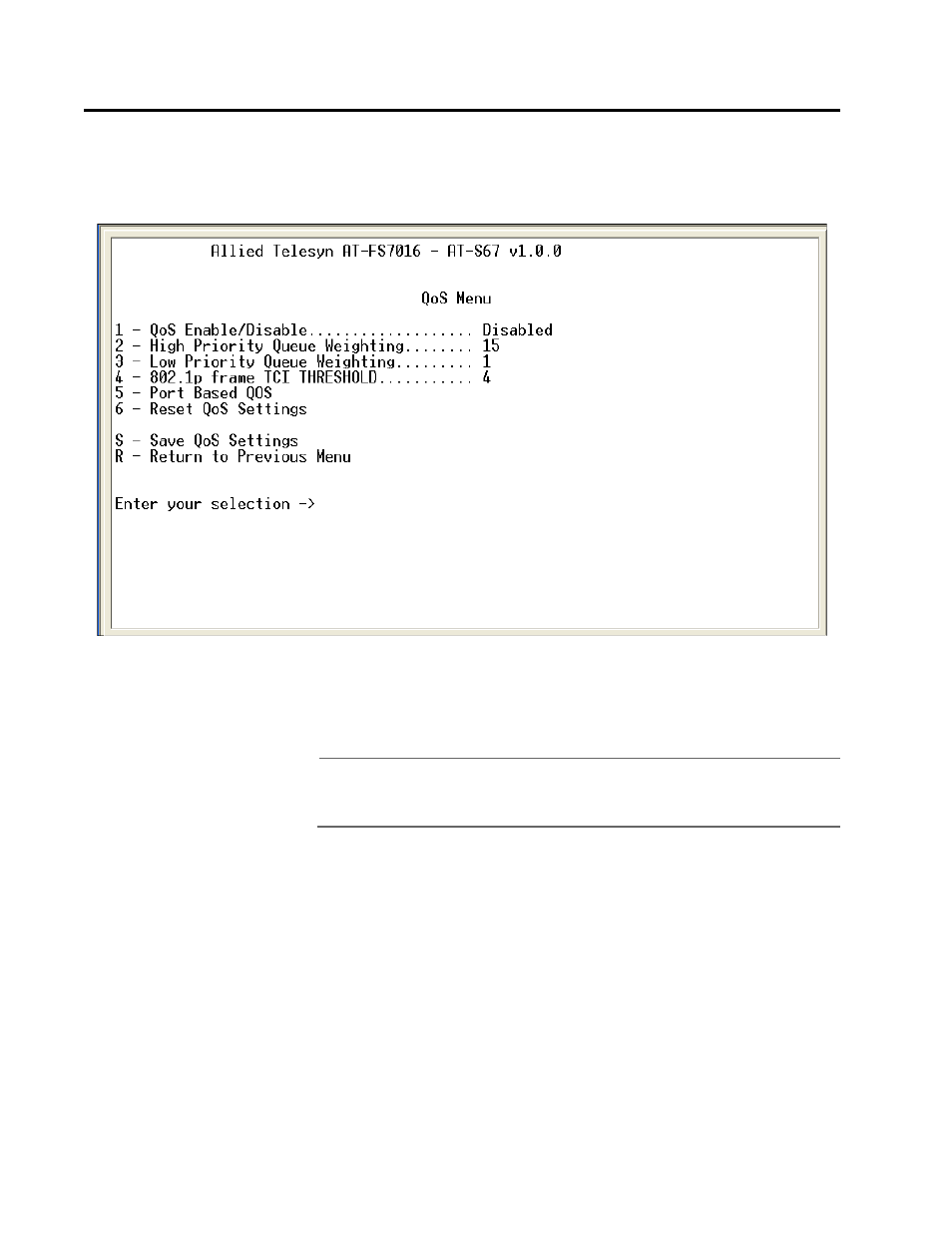

Figure 23 QoS Menu
2. From the QoS Menu, select 1 to enable port-based QoS.
Note
If QoS Enable/Disable is disabled, all tagged and untagged frames
are placed in one queue on the switch.
3. Type 2 to select High Priority Queue Weighting. The following
prompt is displayed:
Enter new value [1 to 15] ->
4. Enter the new value and press .
You will be returned to the QoS Menu.
