Appendix B: Cleaning Fiber Optic Connectors
82
Using a Cartridge-Type Cleaner
Fiber optic cartridge cleaners are available from many vendors and are
typically called “cartridge cleaners,” as shown in Figure 44.

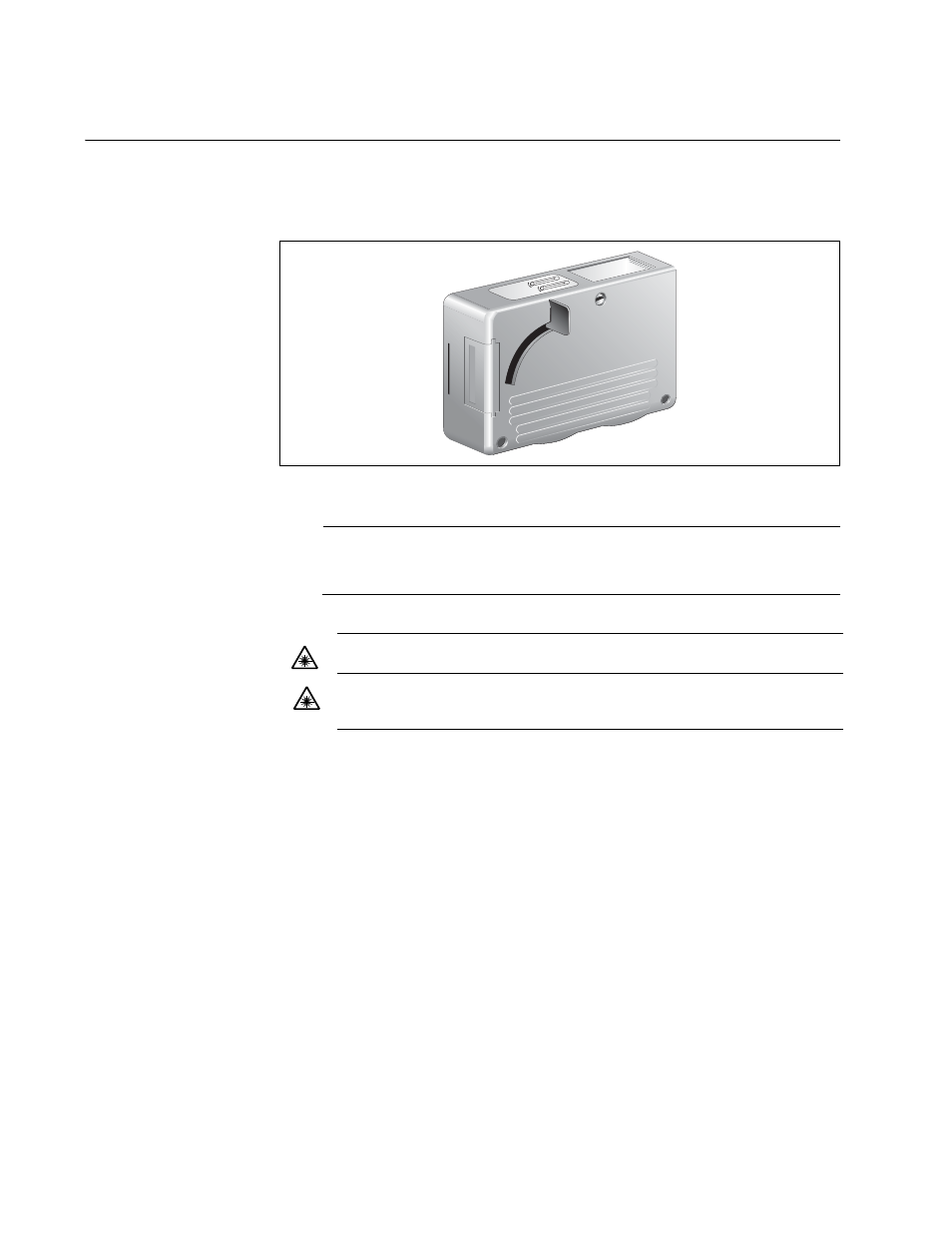

Figure 44. Cartridge Cleaner
Note
Do not use compressed air or aerosol air to clean a fiber optic
connector.
To clean a fiber optic connector using a cartridge cleaner.
1. With one hand, hold the cartridge cleaner and push the lever on the
cleaning cartridge in the direction of the arrow to expose the cleaning
surface, as shown in Figure 45 on page 83.
2. Place the ferrule tip on the exposed cleaning surface and rub the
ferrule in a downward direction, as shown in Figure 45.
Warning: Do not stare into the laser beam.

L2
Warning: Do not look directly at the fiber optic cable ends or
inspect the cable ends with an optical lens.
 E29
TAPE A Wiping Directio
n
PUSH OPEN PUSH OPEN
