Installation
35 510969 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Location Requirements
Select a location with a solid floor. Dryers installed in
residential garages must be elevated 18 inches (46 cm)
above the floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
Leveling legs can be adjusted from inside the dryer
with a 1/4" driver. All four legs must rest firmly on the
floor so the weight of the dryer is evenly distributed.
The dryer must not rock.
The dryer needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown in Figure 25).

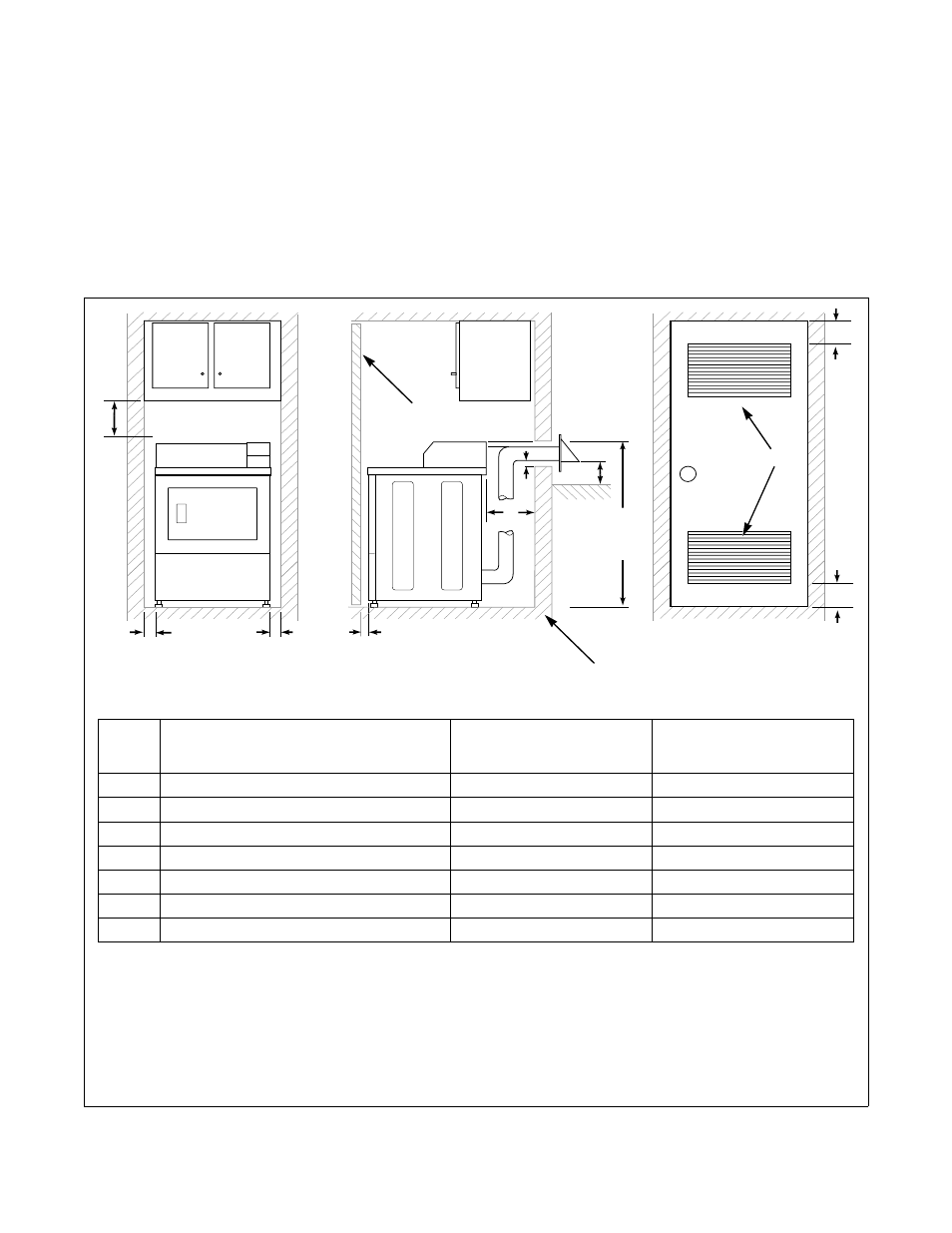

Figure 25
** NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting easier to
connect.
D337I
1 Closet Door 3 Outer Wall of Enclosure
2 Centered Air Openings
(Two openings minimum)
D337I
B
A C
D
A
E
3
FRONT VIEW
(w/o Closet Door)
Area Description
Free Standing/Alcove
Installation
(Refer to Illustration)
Closet Installation
(Refer to Illustration)
A Dryer sides and rear clearance 0" (0 cm) 0" (0 cm)
B Dryer top clearance 12" (30.5 cm) 12" (30.5 cm)
C Dryer front clearance Not Applicable 2" (5.1 cm)
D Exhaust duct clearance to combustible material 2" (5.1 cm) 2" (5.1 cm)
E Weather hood to ground clearance 12" (30.5 cm) 12" (30.5 cm)
F Distance from floor or ceiling to hole edge Not Applicable 3" (7.6 cm)
G* Area of centered air openings in closet door Not Applicable 40 sq. in./open (260 sq. cm)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)
SIDE VIEW
A
FRONT VIEW
(Closet Door)
**42"
(106.7 cm)
F
F
1
2 (G)
