Installation
510969 28 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

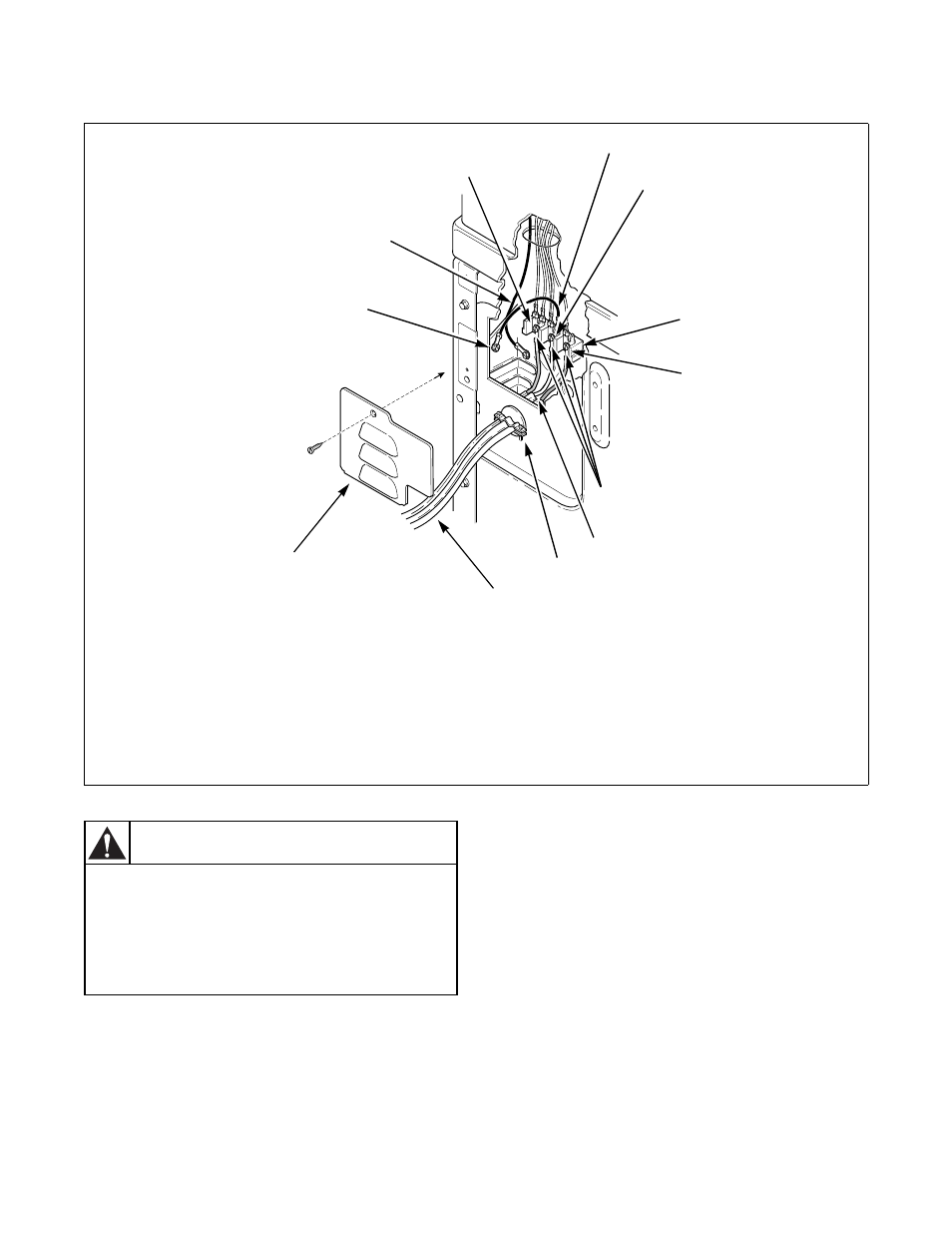

Three-Wire Connection
Figure 19
D682I
1 “L1” Terminal 7 Neutral (White or Center Wire)
2 Ground to Neutral Wire 8 Strain Relief (Not supplied with dryer)
3 Neutral Terminal 9 Power Cord or Direct Wiring (Three-Wire)
4 Terminal Block 10 Access Cover
5 “L2” Terminal 11 Terminal Bracket Ground Screw
6 Slotted Hex Head Screws
(Shipped inside the dryer) 12 Ground Wire
12
1
2
3
4
5
6
7
8
9
10
11
Dryer is shown with the access cover
removed for illustration purposes only. To
reduce the risk of an electric shock, NEVER
operate the dryer with the access cover
removed.
W136
WARNING
