Four-Wire Connection

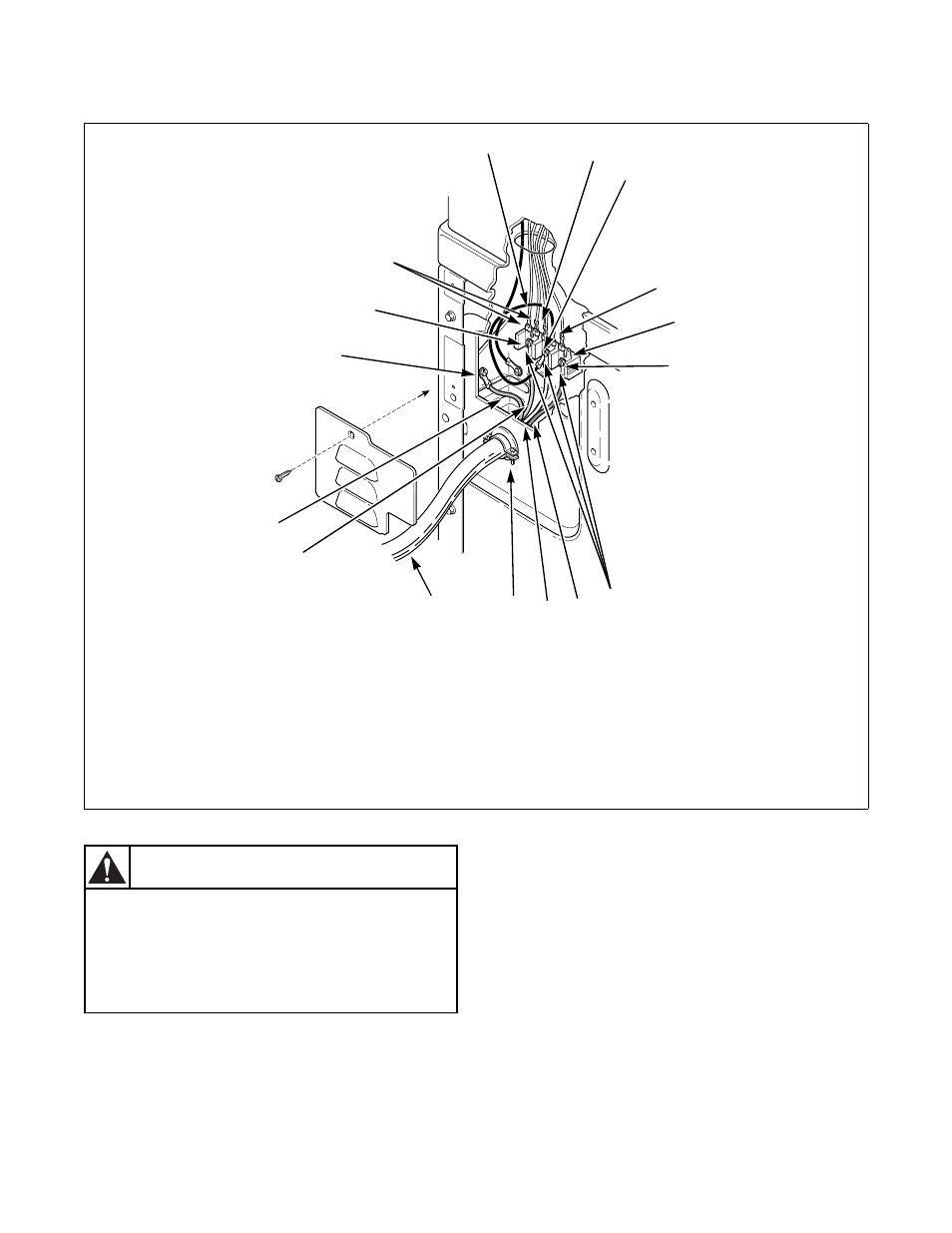

Figure 21
D683I
1 Ground Wire 8 Neutral (White Wire)
2 White Wires 9 Strain Relief
3 Neutral Terminal 10 Power Cord (Four-Wire)
4 Black Wire 11 Red Wire
5 Terminal Block 12 Terminal Bracket Ground Screw
6 “L2” Terminal 13 “L1” Terminal
7 Slotted Hex Head Screws (Shipped inside the
dryer or removed in step 2)
D683I
1
1
2
3
4
5
6
7
8
9 10
11
4
12
13
11
Dryer is shown with the access cover
removed for illustration purposes only. To
reduce the risk of an electric shock, NEVER
operate the dryer with the access cover
removed.
W136
WARNING
