Figure 4
4. Reinstall coin slide in dryer meter case. Refer to
Figure 5.
NOTE: The position of the accumulator arm is
between the push and pull extension of the slide
extension.
5. CHECK DRYER OPERATION – Connect
electrical power to dryer. Place required number
of coins in coin slide. Push slide in and observe
through service door opening in meter case if the
slide extension is contacting the accumulator
actuator arm and moving arm back with slide
travel.
When slide is pushed all the way in (accumulator
arm will be rotated to the back) and slide is
retracted, the accumulator actuator arm should
remain back until the slide extension is moved
forward and again contacts the actuator arm to
return the arm to the starting forward position.
Refer to Figure 5.
6. After completing the dryer check, reinstall
service door on top of meter case.
NOTE: When reinstalling service door, front of
door must be inserted at about a 45° angle in order
to engage notched tabs with internal rib at top of
meter case.

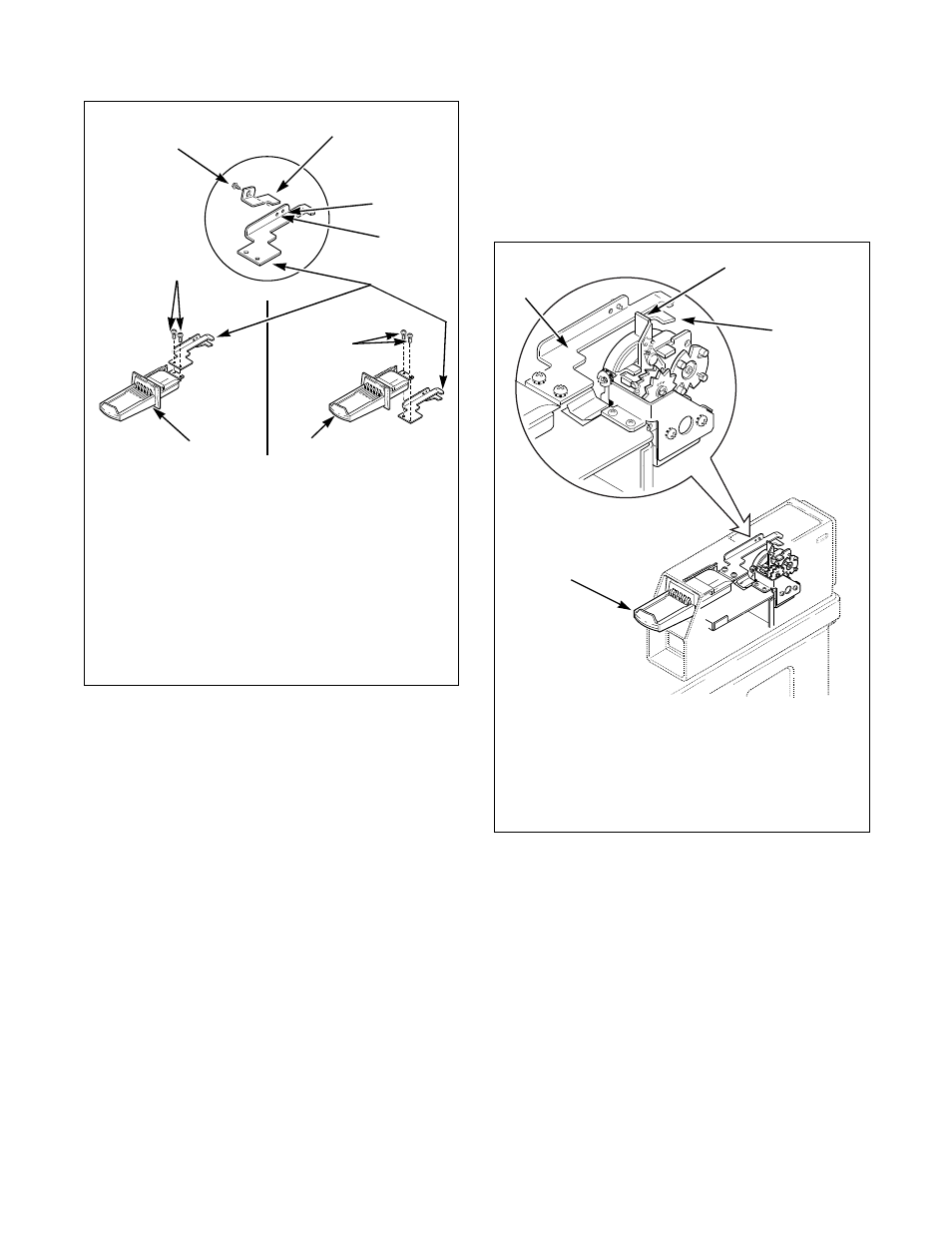

Figure 5
DRY1967K
1 501796 Slide Extension Modifier
2 Hole “A”
3 Hole “B”
4 506114 Slide Extension
5 03950 Phillips Head Screws and
Lockwashers
6 Coin Slide
7 501086 Self-Tapping Screw
DRY1967K
2
1
3
4
5
5
6 6
7
COMET, TOKETTE AND
MONARCH COIN SLIDES
GREENWALD AND
ESD COIN SLIDES
DRY1968K
1 Accumulator Actuator Arm
2 501796 Slide Extension Modifier
(If required)
3 Coin Slide
4 506114 Slide Extension
1
2
3
4
