Installation
510969 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Before You Start
Tools
For most installations, the basic tools you will need
are:

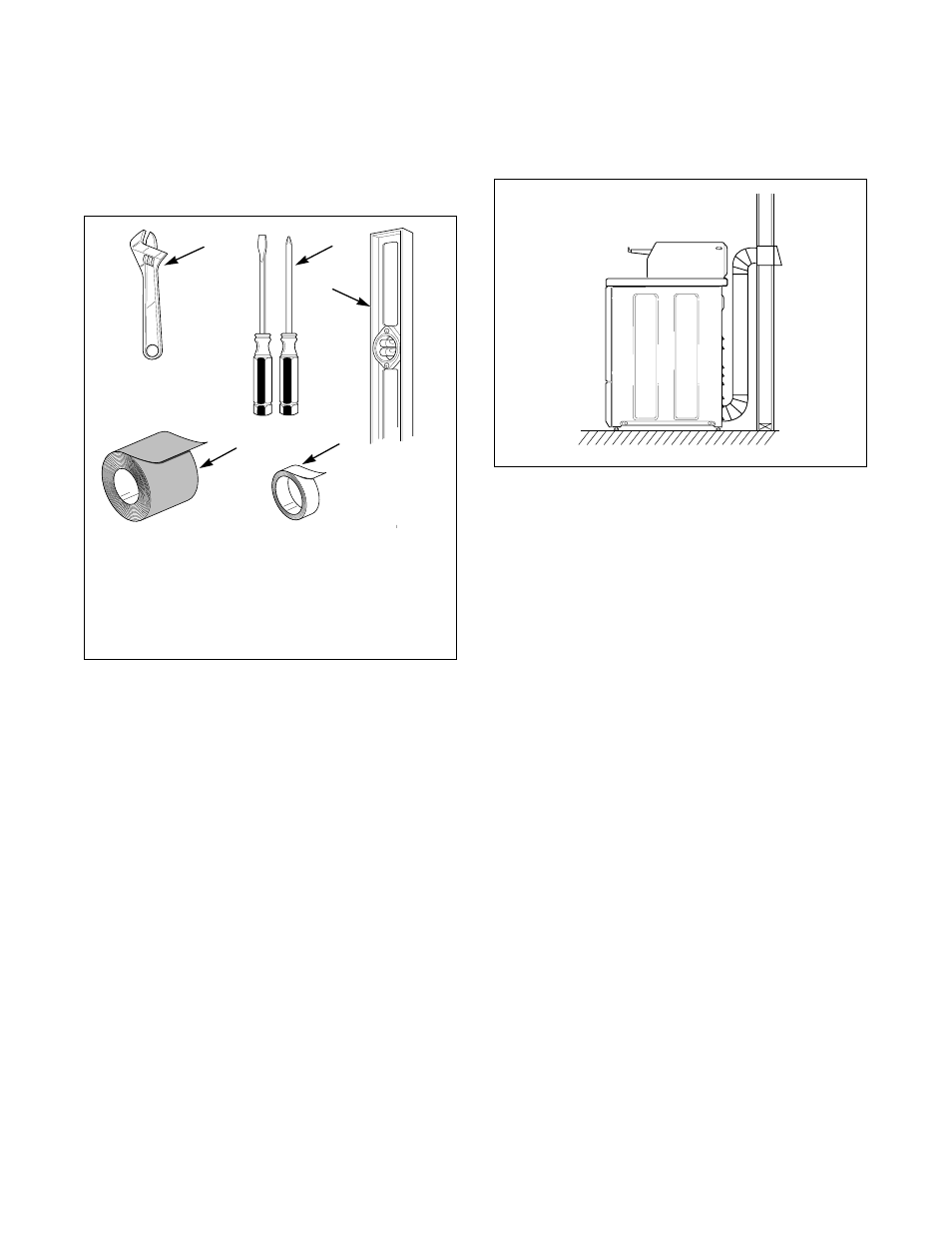

Figure 7
Gas
Dryer is equipped for Natural Gas with a 3/8" N.P.T.
gas supply connection. For more detailed information,
refer to section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply. For more detailed information, refer to section
on Location Requirements.
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
Figure 8
NOTE: For more detailed information, refer to
section on Dryer Exhaust Requirements.
Electrical
● ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 or 120/208
Volt, 60 Hertz, 30 Amp, AC single Phase
electrical supply.
● GAS DRYER
Dryer needs a 120 Volt, 60 Hertz, 15 Amp,
polarized 3-slot effectively grounded receptacle.
NOTE: For more detailed information, refer to
section on Electrical Requirements.
❂
D818I
1 Wrench
2 Screwdrivers
3 Level
4 Teflon Tape
5 Duct Tape
1 2
3
4
5
D333I
