Installation
15 510969 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Additional Dryer Security
Located on the service door of the dryer is a flat
Phillips head screw. During shipment, this screw is
used to attach the service door to the meter case. For
additional security, this screw can be reinstalled inside
the control hood of your dryer. Following is the
procedure for installing this screw:
1. Remove the Phillips head screw from service
door. (Refer to Figure 6.)
2. Remove two screws holding control panel to
control hood.
3. Tilt control panel forward and lay on a protective
pad to prevent scratching of cabinet top.
4. Insert Phillips head screw down through double
“D” hole in left rear corner of cabinet top (inside
control hood) until it engages retainer nut located
on left rear corner gusset of cabinet.
5. Finger tighten screw.
IMPORTANT: Do not use a power driver to
tighten screw. Torque of a power driver could over-
tighten screw causing damage to cabinet assembly.

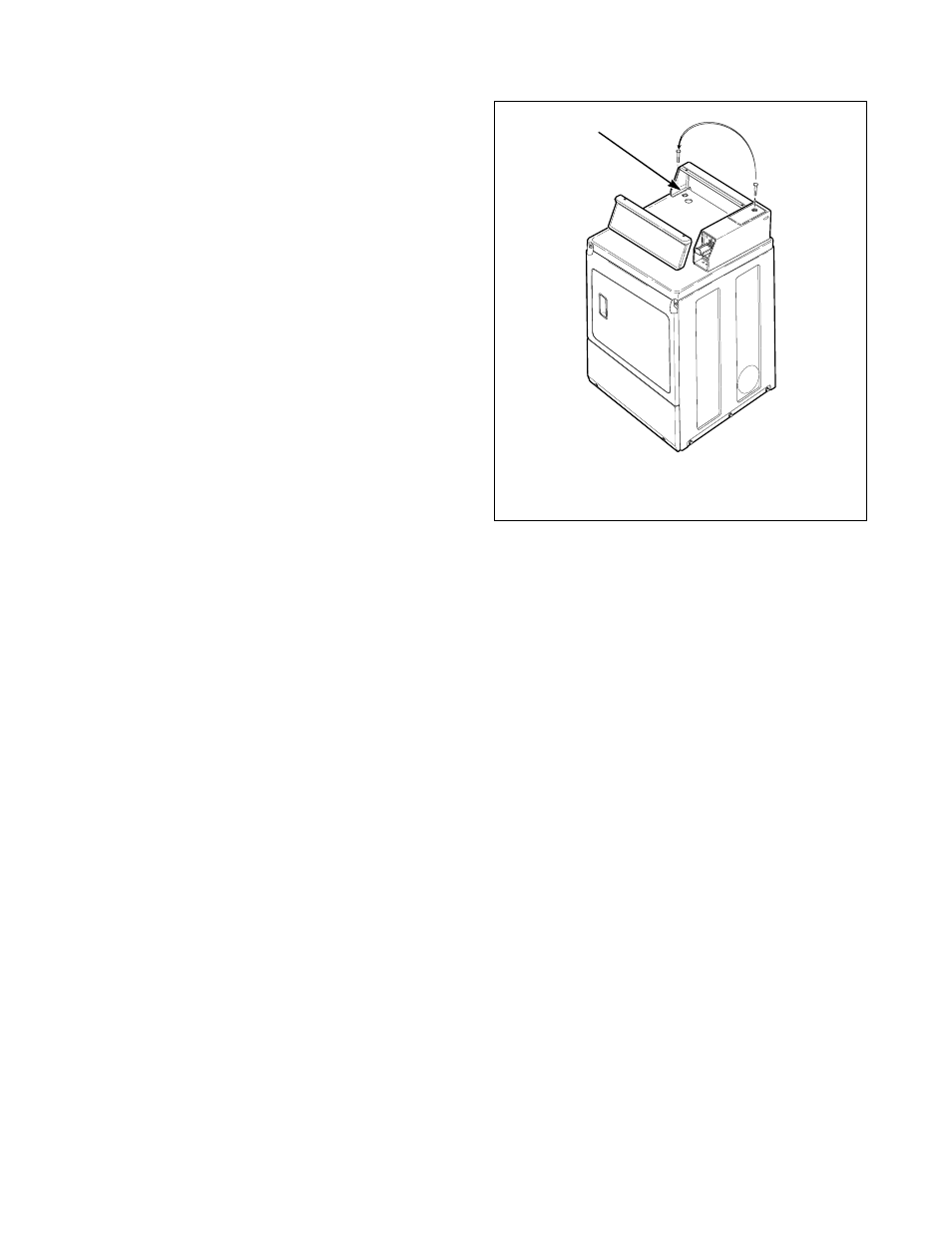

Figure 6
D687I
1 Double “D” Hole
D687I
1
