All Models
After the dryer has operated for approximately five
minutes, observe burner flame. Adjust the air shutter
to obtain a soft, uniform blue flame. (A lazy, yellow-
tipped flame indicates lack of air. A harsh, roaring,
very blue flame indicates too much air.) Adjust the air
shutter as follows:
1. Loosen the air shutter lockscrew.
2. Turn the air shutter to the left to get a luminous
yellow tipped flame, then turn it back slowly to
the right to obtain a steady soft blue flame.
3. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, the exhaust air or exhaust pipe should be
warm.

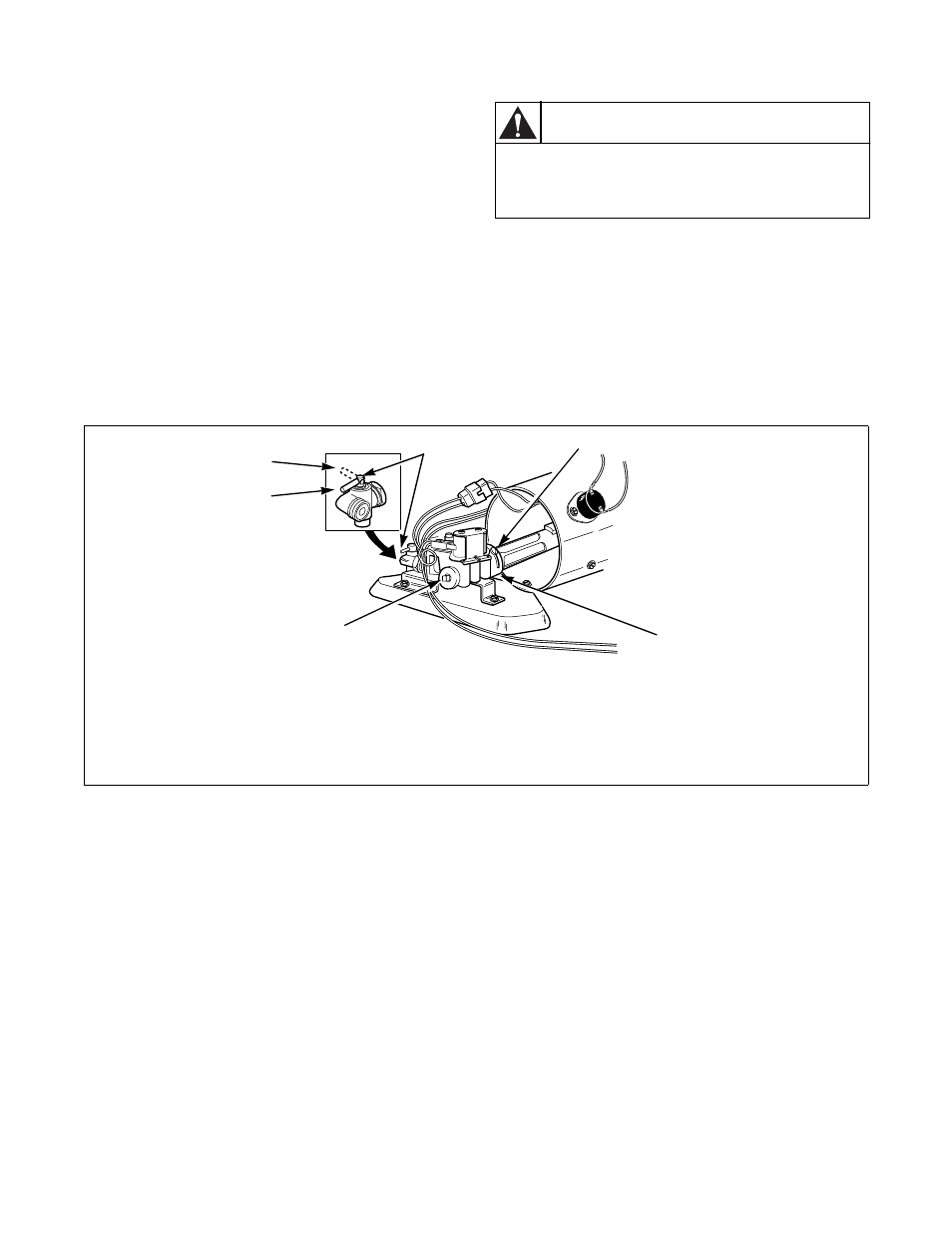

Figure 16
For personal safety, lower front panel must
be in place during normal operation.
W046
WARNING
D700I
1 Closed Position 5 1/8" (3.1 mm) Pipe Plug
(For checking manifold pressure)
2 Shut-Off Valve Handle
3 Air Shutter Lockscrew 6 Open Position
4 Air Shutter
3
4
5
2
1
6
