Dryer Slide Extension
(Coin Slide Models Only)
Short Vault Slide Extension
1. Assemble coin slide extension, No. 503733, to
top side of coin slide using two Phillips head
screws and lockwashers, No. 03950. Tighten
firmly. Refer to Figure 2.
2. Install slide extension modifier, No. 501796, as
follows:
NOTE: Dryers equipped with Greenwald coin
slides (except for Greenwald Comet Slide or
Greenwald Tokette Slide) do not require the use of
the slide extension modifier.
● ESD Coin Slide – Mount slide extension
modifier, No. 501796, to the underside of slide
extension, No. 503733. Align the hole in the slide
extension modifer with hole “A” in the slide
extension and install self-tapping screw, No.
501086. Tighten firmly. Refer to Figure 2.
● GREENWALD Comet Slide, GREENWALD
Tokette Slide or MONARCH Coin Slide –
Mount slide extension modifier, No. 501796, to
the underside of slide extension, No. 503733.
Align the hole in the slide extension modifier
with hole “B” in the slide extension and install
self-tapping screw, No. 501086. Tighten firmly.
Refer to Figure 2.

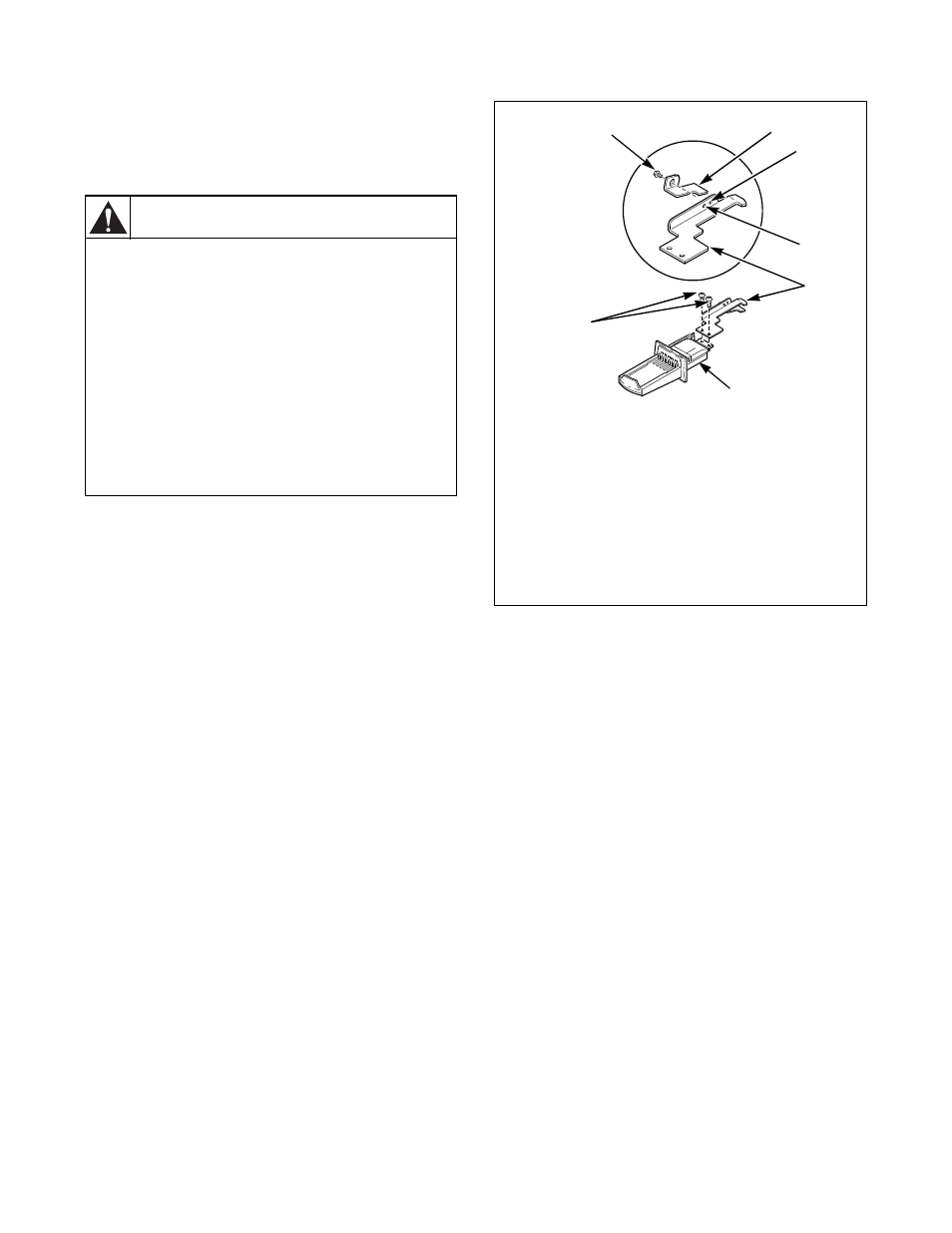

Figure 2
3. Reinstall coin slide in dryer meter case.
4. CHECK DRYER OPERATION – Connect
electrical power to dryer. Place required number
of coins in coin slide. Push slide in, and observe
through service door opening in meter case. The
slide extension should be contacting the
accumulator actuator arm and moving back with
slide travel.
When slide is pushed all the way in, slide is
retracted. Accumulator actuator arm should
remain back until slide extension is moved
forward and contacts actuator arm again,
returning arm to starting position. Refer to
Figure 3.
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the
dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s)
before servicing.
• Never start the dryer(s) with any guards/
panels removed.
• Whenever ground wires are removed
during servicing, these ground wires
must be reconnected to ensure that the
dryer is properly grounded.
W001R1
WARNING
D019K
1 501086 Self-Tapping Screw
2 501796 Slide Extension Modifier
3 Hole “A”
4 Hole “B”
5 503733 Slide Extension
6 Coin Slide
7 03950 Phillips Head Screws and
Lockwashers
3
2
4
5
6
7
1
