Figure 3
5. After completing the dryer check, reinstall
service door on top of meter case.
NOTE: When reinstalling service door, front of
door must be inserted at about a 45° angle in order
to engage notched tabs with internal rib at top of
meter case.
Long Vault Slide Extension
1. Remove the coin slide out through front of meter
case.
2. For Comet, Tokette and Monarch coin slides:
Assemble the slide extension, No. 506114, to the
top side of the coin slide using the two Phillips
head screws and lockwashers, No. 511419, and
tighten firmly. Refer to Figure 4.
For Greenwald and ESD coin slides:
Assemble the slide extension, No. 506114, to the
bottom side of the coin slide using the two Phillips
head screws and lockwashers, No. 511419, and
tighten firmly. Refer to Figure 4.
3. Install slide extension modifier, No. 501796, as
follows:
NOTE: Dryers equipped with a Greenwald coin
slide (except for the Greenwald Comet Slide or the
Greenwald Tokette slide) do not require the use of
the slide extension modifier.
●
ESD Coin Slide – Mount the slide extension
modifier, No. 501796, to the underside of the
slide extension, No. 506114. Align the hole in the
slide extension modifier with hole “A” in the
slide extension and install the self-tapping screw,
No. 501086, and tighten firmly. Refer to
Figure 4.
●
GREENWALD Comet Slide, GREENWALD
Tokette Slide or MONARCH Coin Slide –
Mount the slide extension modifier, No. 501796,
to the underside of the slide extension,
No. 506114. Align the hole in the slide extension
modifier with hole “B” in the slide extension and
install the self-tapping screw, No. 501086, and
tighten firmly. Refer to Figure 4.

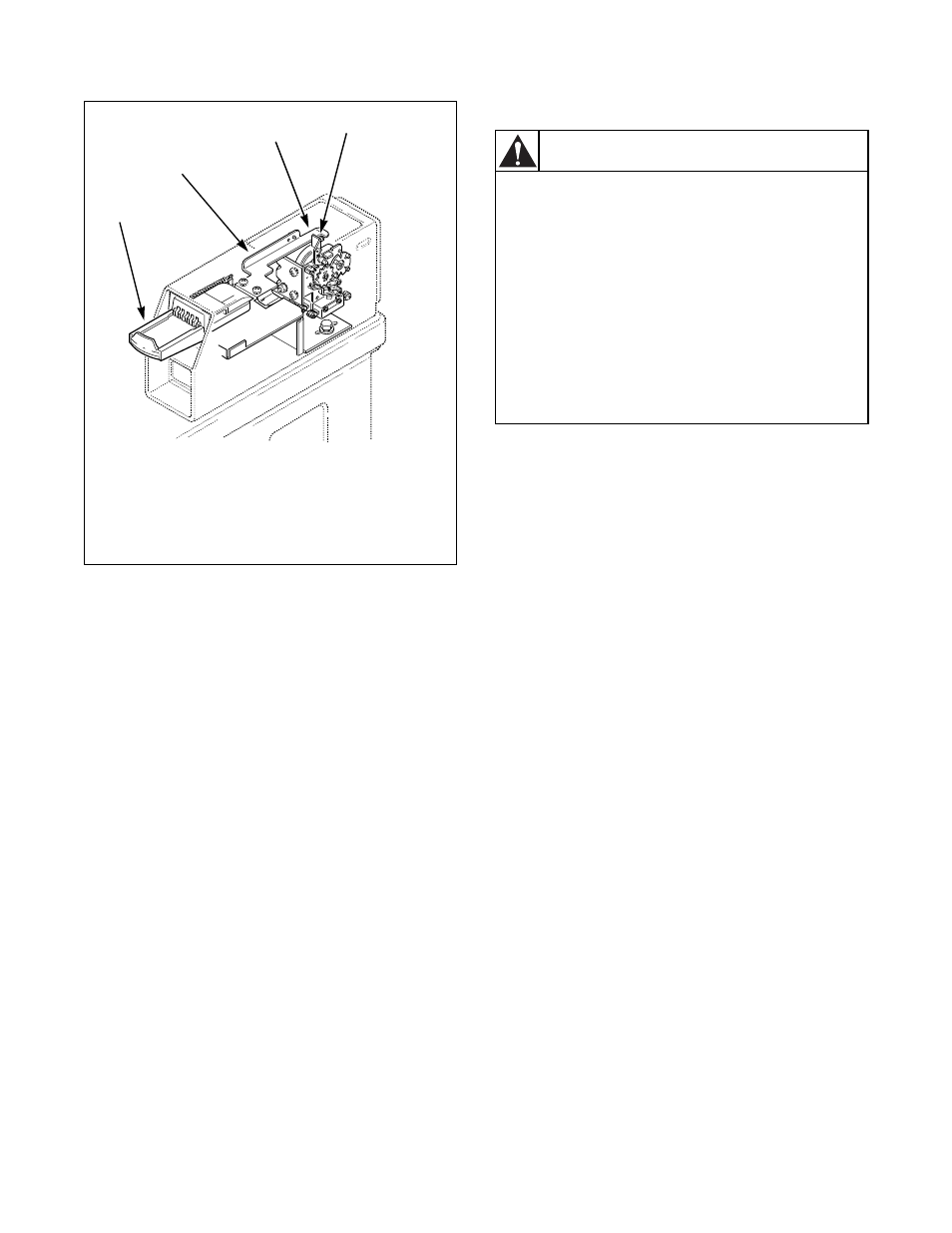

DRY1925N
1
Coin Slide
2
Slide Extension
3
Accumulator Actuator Arm
4
Slide Extension Modifier
4
3
1
2
