Introduction to the 34980A
1
34980A User’s Guide
5

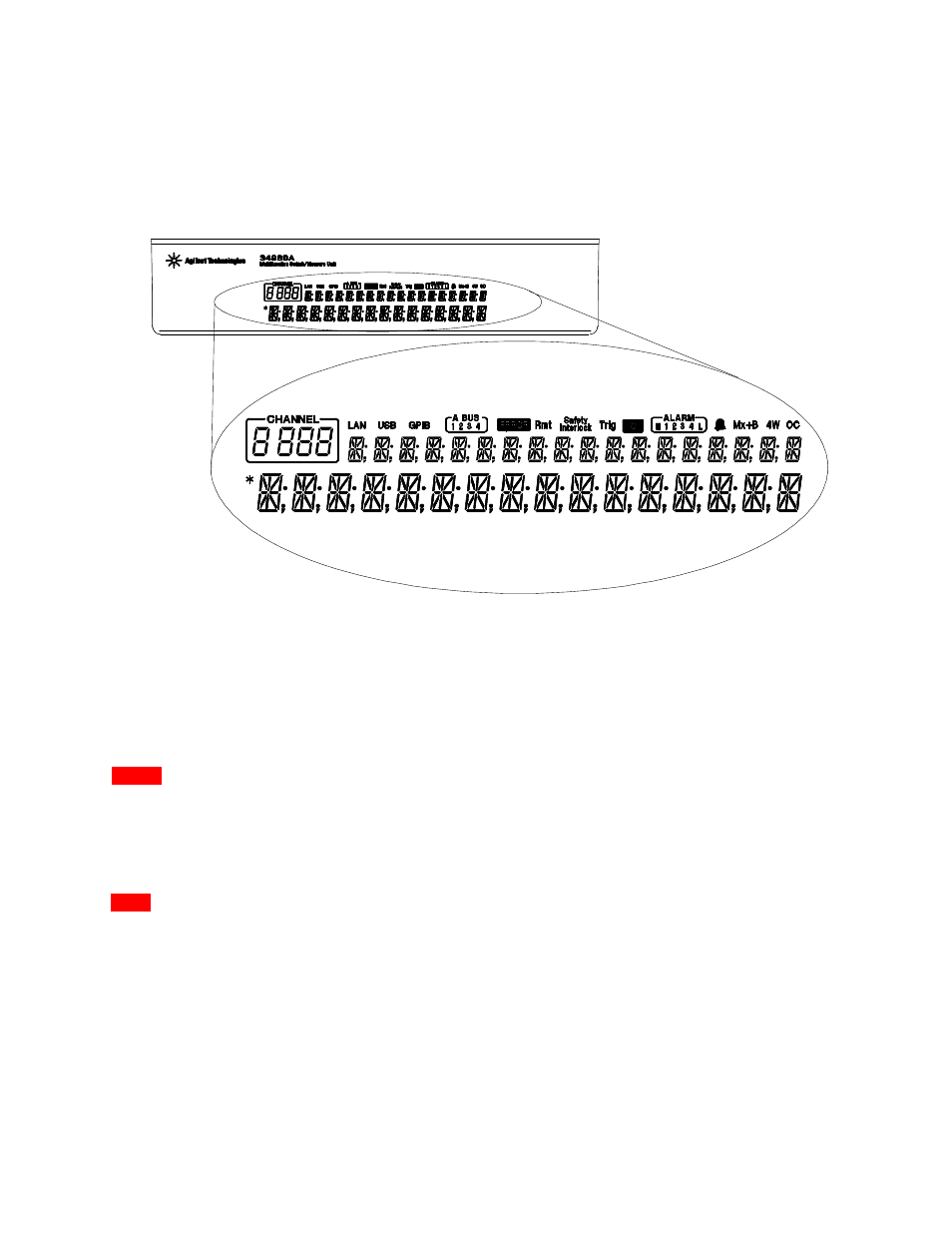

Annunciator Display Indicators
Display Indicator
Definition
LAN
Communicating with the 34980A over LAN
USB
Communicating with the 34980A over USB
GPIB
Communicating with the 34980A over GPIB
ABUS [1234]
Analog Bus Connectivity. Normally, designated ABus connected on any module in mainframe.
During scan, if ABus 1 and ABus 2 are indicated, they will be used at some point during the scan
An error has been generated and is in the error queue
Rmt
Remote. Running a program puts the display into “remote” and disables the front panel keys.
Pressing the LOCAL button takes you out of “remote” mode and enables the front panel keys.
Safety Interlock
ABus safety interlock. Terminal block or cables have been removed from the D-sub connector of a
module. For more information, see
and
Trig
Waiting for external or manual trigger during scans
Over-temperature condition. One or more general purpose (34937A/34938A) modules have reached
their over-temperature limits.
ALARM (H1234L)
Additional functionality to be implemented
Bell Symbol
Additional functionality to be implemented
Mx+B
Scaling enabled on channel. This appears on display after you select scaling function via front panel
or remote interface
4W
4-wire measurement specified on channel. This appears on display after you select the 4-wire
function via the front panel or remote interface.
OC
Offset Compensation specified on channel. This appears on display after you have selected the
offset compensation function via the front panel or remote interface.
*
(left side of display)
Measurement is in progress
HOT
ERROR
