34931A D-Sub Connectors
Matrix 1
Matrix 2

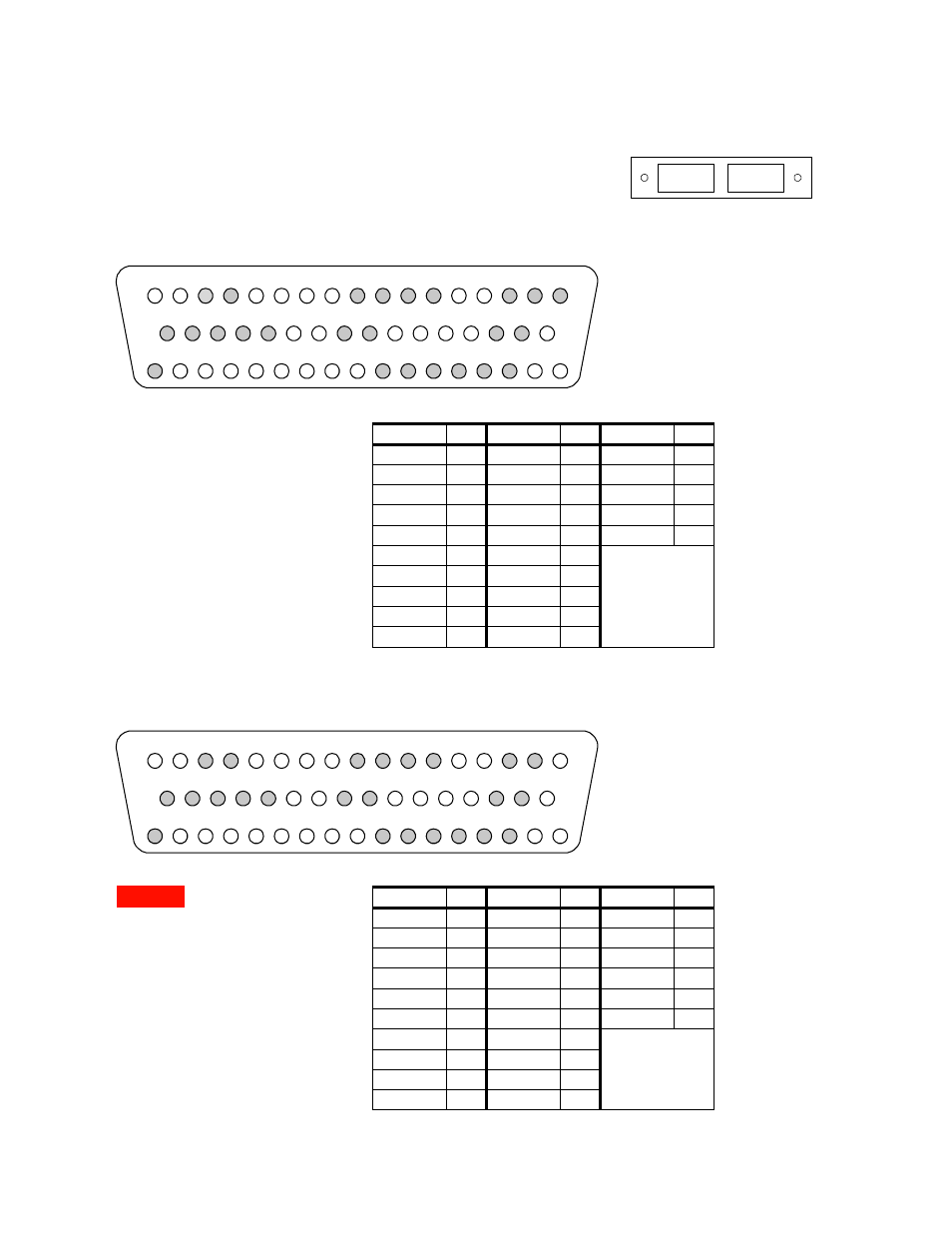

For orientation, the D-sub connector
end of the module is facing you.
Matrix 1 Matrix 2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
NC C4H C4L NC NC R4H R4L C5H C5L NC NC NC NC C7H C7L NC NC
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
C2L NC NC NC NC NC C2H NC NC R2H R2L C8H C8L NC NC GND
NC NC C3H C3L C1H C1L R3H R3L C6H C6L NC NC NC NC NC R1H R1L
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
NOTE: In this diagram and the table
below, R represents “row,” and C
represents “column.”
Description Pin Description Pin Description Pin
R1H 49 C2H 23 C7H 13
R1L 50 C2L 24 C7L 14
R2H 27 C3H 35 C8H 29
R2L 28 C3L 36 C8L 30
R3H 39 C4H 1 GND 33
R3L 40 C4L 2 No Connect pins:
3-4, 9-12, 15-22,
25-26, 31-32, 34,
and 43-48.
R4H 5 C5H 7
R4L 6 C5L 8
C1H 37 C6H 41
C1L 38 C6L 42
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
NC NC C3H C3L C1H C1L R7H R7L C6H C6L NC NC NC NC NC R5H R5L
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Interlock C4H C4L NC NC R8H R8L C5H C5L NC NC NC NC C7H C7L NC NC
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
C2L NC NC NC NC NC C2H NC NC R6H R6L C8H C8L NC NC Interlock
NOTE: In this diagram and the table
below, R represents “row,” and C
represents “column.”
Description Pin Description Pin Description Pin
R5H 49 C2H 23 C7H 13
R5L 50 C2L 24 C7L 14
R6H 27 C3H 35 C8H 29
R6L 28 C3L 36 C8L 30
R7H 39 C4H 1 Interlock 17
R7L 40 C4L 2 Interlock 33
R8H 5 C5H 7 No Connect pins:
3-4, 9-12, 15-16.
18-22, 25-26, 31-32,
34, 43-48
R8L 6 C5L 8
C1H 37 C6H 41
C1L 38 C6L 42
WARNING:: As a safety feature,
interlock pins (17 and 33) must be
shorted to enable the Analog Bus
relays, which are on Matrix 2, to close.
The optional 34931T terminal block
shorts these pins for you. This feature
protects inadvertent routing of high
voltages from the Analog Buses to the
D-sub connector of the module.
