Matrix Switch Modules
5
34980A User’s Guide
143
1
2
3
4
1
2
3
4
1
2
3
n*
n - 1
1
2
3
n*
n - 1
*n can be 8 or 16
8 or 16 Columns
8 Rows
Module 1
Module 2

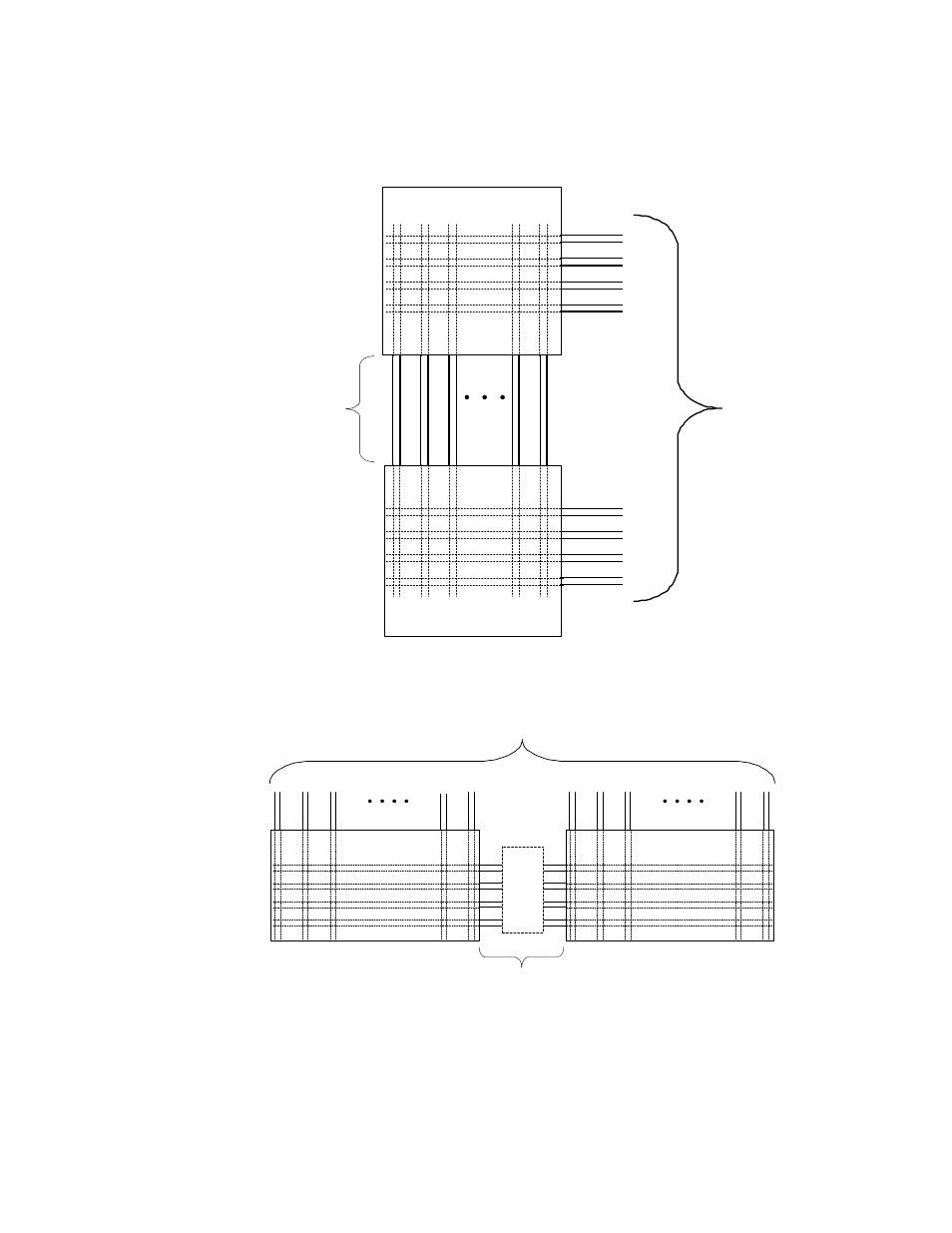

Increase number of rows by
connecting through
columns
1
2
3
4
1
2
3
4
1
2
3
n
*
n
- 1
1
2
3
n
*
n
- 1
Analog
Buses
4 Rows
*n can be 8 or 16
Module 1
Module 2
16 or 32 Columns
Increase number of
columns by connecting
through rows
