Low Frequency Multiplexer Switch Modules 4
34980A User’s Guide 111

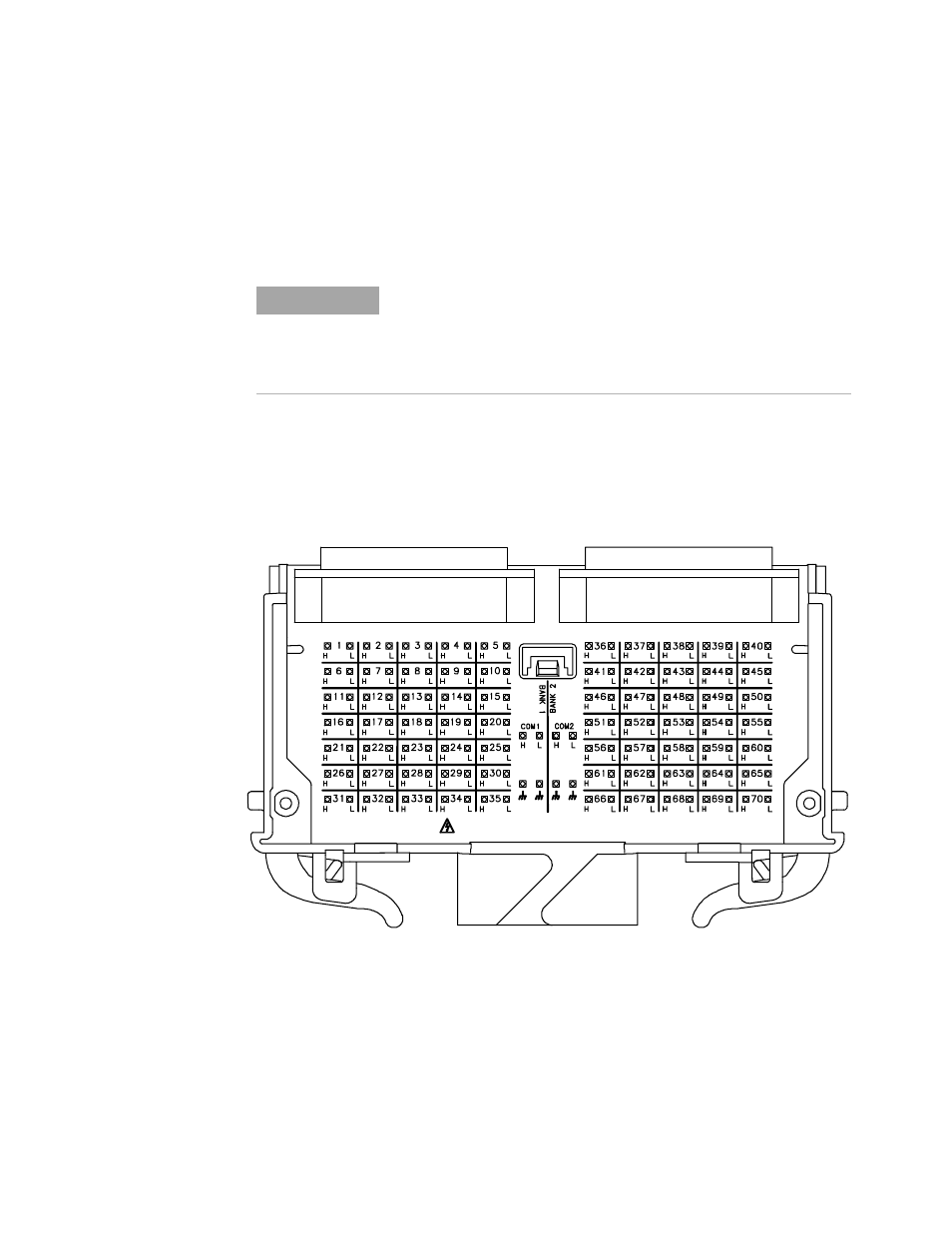

34922T Terminal Block
This terminal block with solder- type connections is labeled with the
model number and the abbreviated module name. In addition, space is
available on the label for you to write the slot number.
The 34980A Product Reference CD (shipped with the instrument)
contains a the 34922T Wiring Log for you to document your wiring
configuration for this module. You can open the wiring log file in
Microsoft® Excel® or Adobe® Acrobat® format.
N O T E
All modules that connect to the internal DMM are interlock
protected. This means that when an installed module is exposed (no
terminal block or cable is connected), the Analog Bus relays are
open and disconnected from the Analog Buses. See
page 96 for
further information.
