EN - English - I
nstruc
tions manual
7
06. GOST-R certification:
• GOST-R certificate number
• Classification of the area type, protection
method and temperature class for which this
product can be used according to the GOST-R
STANDARDS
Label on the electronic card:
• Model identification code;
• IP Grade;
• Voltage (Volt);
• Frequency (Hertz);
• Maximum current (Ampere);
• Product serial number.
h Before installation, make sure the power
supply and protection specifications of the
device correspond to those in the original
order. Use of unsuitable appliances can
cause serious hazards, risking the safety of
personnel and of the installation.
5 Preparing the product
for use
h Any change that is not expressly approved
by the manufacturer will invalidate the
guarantee.
5.1 Contents and unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
Keep the packaging in case you need to send the
product for repairs.
Check the contents to make sure they correspond
with the list of materials as below:
• EXDTRX3 / EXDTRX324 receiver
• 2 3/4" NPT IP66 IECEX-ATEX-GOST screws plugs
• Instructions manual
4.2 Product markings
j On the receivers
there are 4 labels.
Labels on the packaging:
• Model identification code;
• Product description;
• IP Grade;
• Voltage (Volt);
• Frequency (Hertz);
• Maximum current (Ampere);
• Product serial number (Extended 3/9 bar code).
Labels on the explosion-proof box:
• Box code (CORTEM);
• Voltage (Volt);
• Frequency (Hertz);
• Power (Watt);
• Maximum current (Ampere);
• Box certificate number (CORTEM);
• Box serial number (CORTEM).

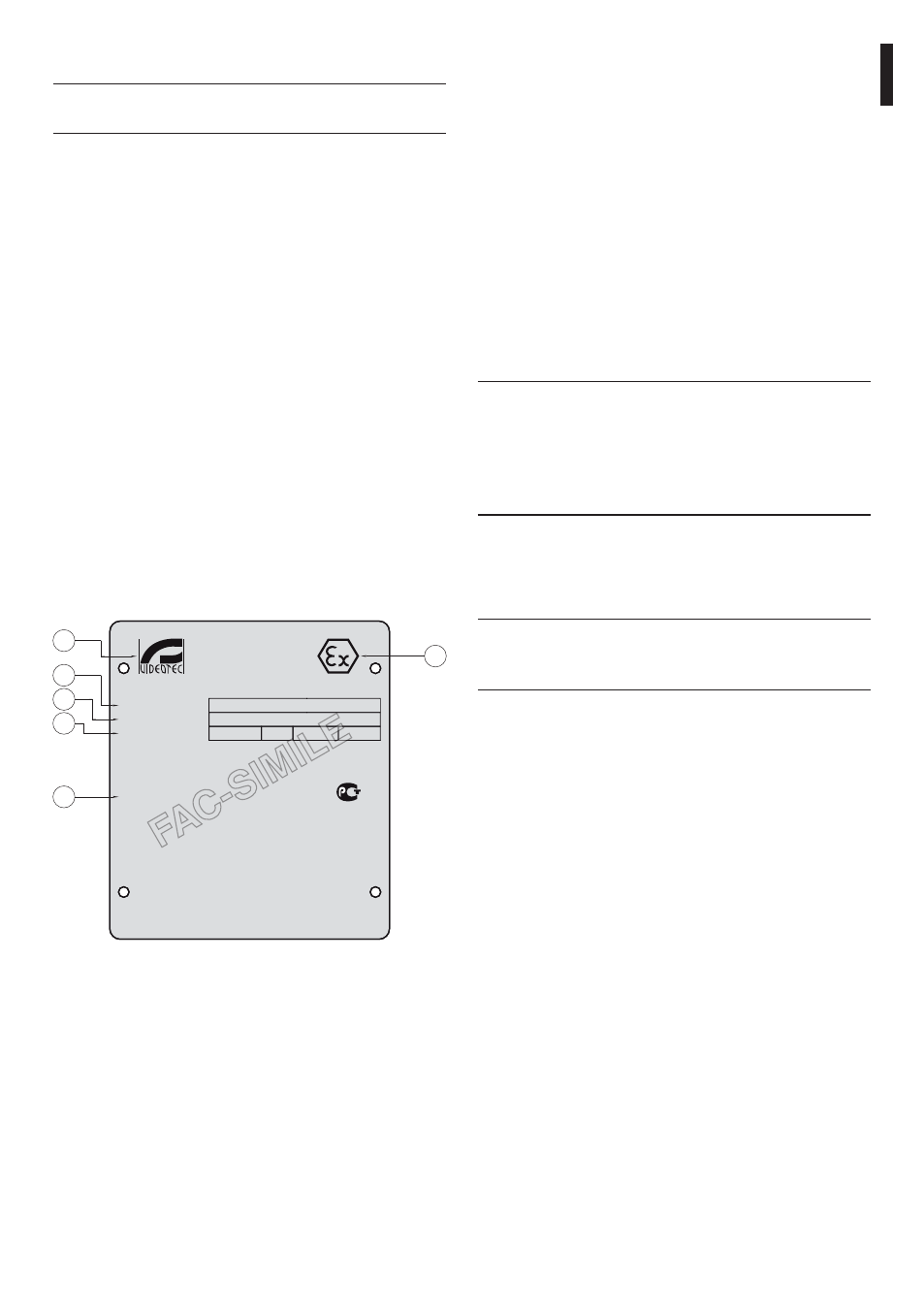

Label on the explosion-proof box:
Serial N°/Сер. №:
Camera/Камера:
WARNING! HEATING RESISTOR POWERED:
DO NOT OPEN WHEN POWERED
ПРЕДУПРЕЖДЕНИЕ! ОТКРЫВАТЬ,
ОТКЛЮЧИВ ОТ СЕТИ (24V/220V)
VIDEOTEC S.p.A.
Via Friuli, 6 - 36015 Schio (VI) - ITALY
www.videotec.com
50/60 Hz
20 W
max
Model/Модель:
USE STAINLESS STEEL SCREWS, TYPE A2 UNI 5931, DIN 912
01
02
03
04
05
06
EXDTRX324
6 A 40 W
max
24 V
ГБ05
1ExdeeCT6 и DIP A21 Т
А
Т85°C
РОСС IT.ГБ05.В02787
Housing/Оболочка:
Fig. 01
01. EX symbol
02. Manufacturer’s name and address
03. Model identification code
04. Serial number
05. Housing
• Power voltage (V)
• Absorbed current (A)
• Frequency (Hz)
• Housing consumption (W)
