Operating and installation instructions
Thrust actuator ARI-PREMIO-Plus
5.7.4 Integrated temperature controller dTRON 316
The integrated temperature controller controls temperatures, which are measured by input-
connected temperature sensors, to a manual given setpoint by means of a three-step
output connected with the actuator.
5.7.4.1 Installation of the dTRON 316
The dTRON 316 can be mounted in the ARI-PREMIO as a complete unit with a mounting
kit.
To install the dTRON 316 proceed as follows:
In addition to “5.4 Electrical connection”, the electrical connection of the dTRON 316 has to
be done in the following way:
- Mount the temperature controller on the gear plate by using the specific installation kit
(Fig. 26).
- Plug in the connector X25 of the dTRON 316 to the plug-in connector X59 (0V / L ↓ / L↑) of
the actuator terminal.
- Connect the signal input and the individual wanted additional functions according the
wiring diagram to the dTRON 316.
- Connect the power supply L1 and N to the dTRON 316.
- For changing the working direction to heating signal = extending driving spindle, just
change the wires on the connectors L ↓ and L↑.

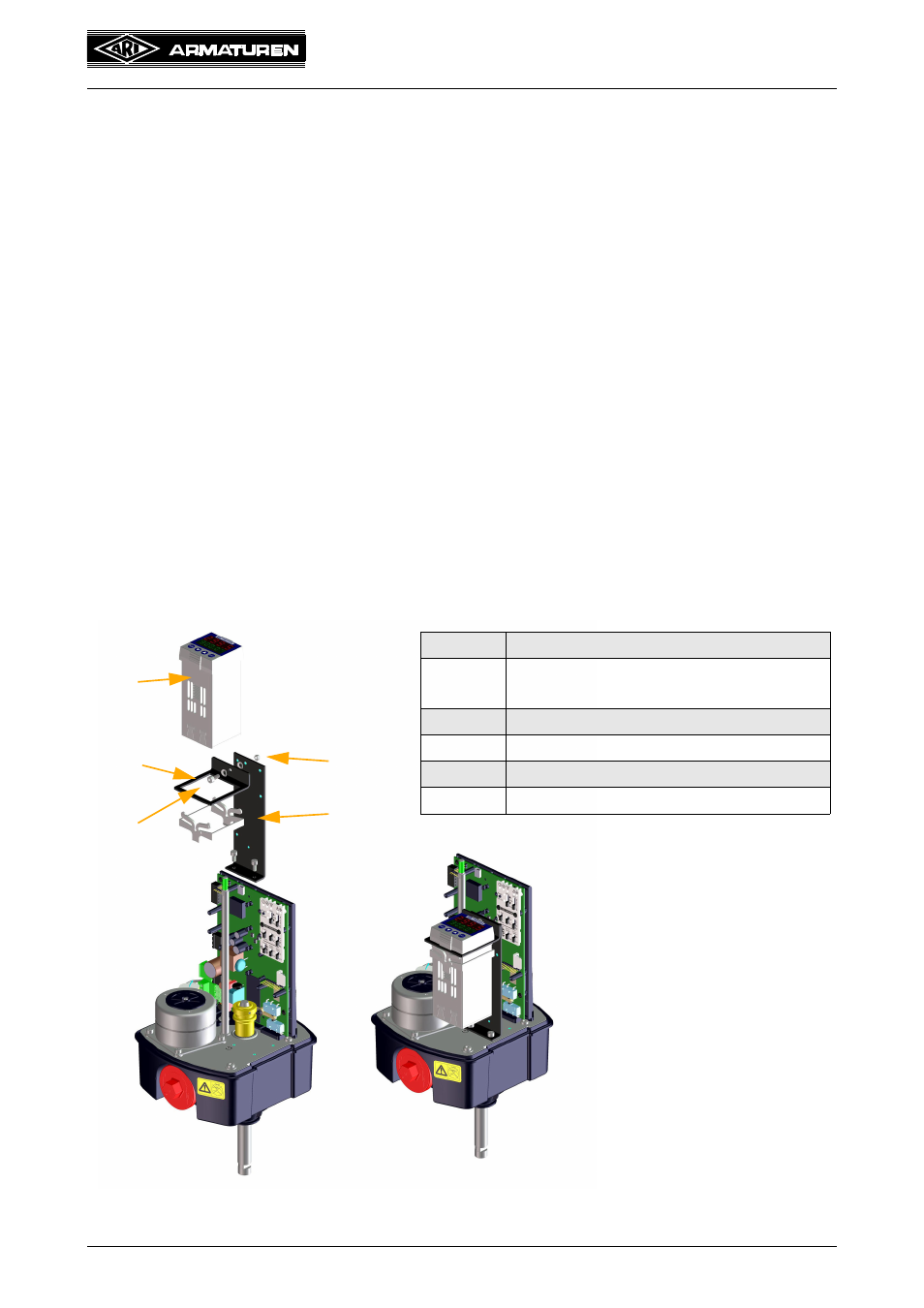

Fig. 26: Installing dTRON 316 ARI-PREMIO 2.2 – 5 kN
50.97
50.99
50.100
50.98
50.81
Pos. Designation
50.81 Head cap screw
DIN EN ISO 4762 - M4x8
50.97 Temperature controller dTRON 316
50.98 Fixing bracket (option dTRON)
50.99 Holding bracket (option dTRON)
50.100 Self-locking nut (option dTRON)
