Operating and installation instructions
Thrust actuator ARI-PREMIO-Plus
5.3.2 Mounting for valve lift over 30 mm to 65 mm (column version)
- Screw coupling (pos. 50.27) out of torsion safety feature (pos. 50.32) of thrust actuator
(not illustrated).
- Position valve cone approximately in mid lift position.

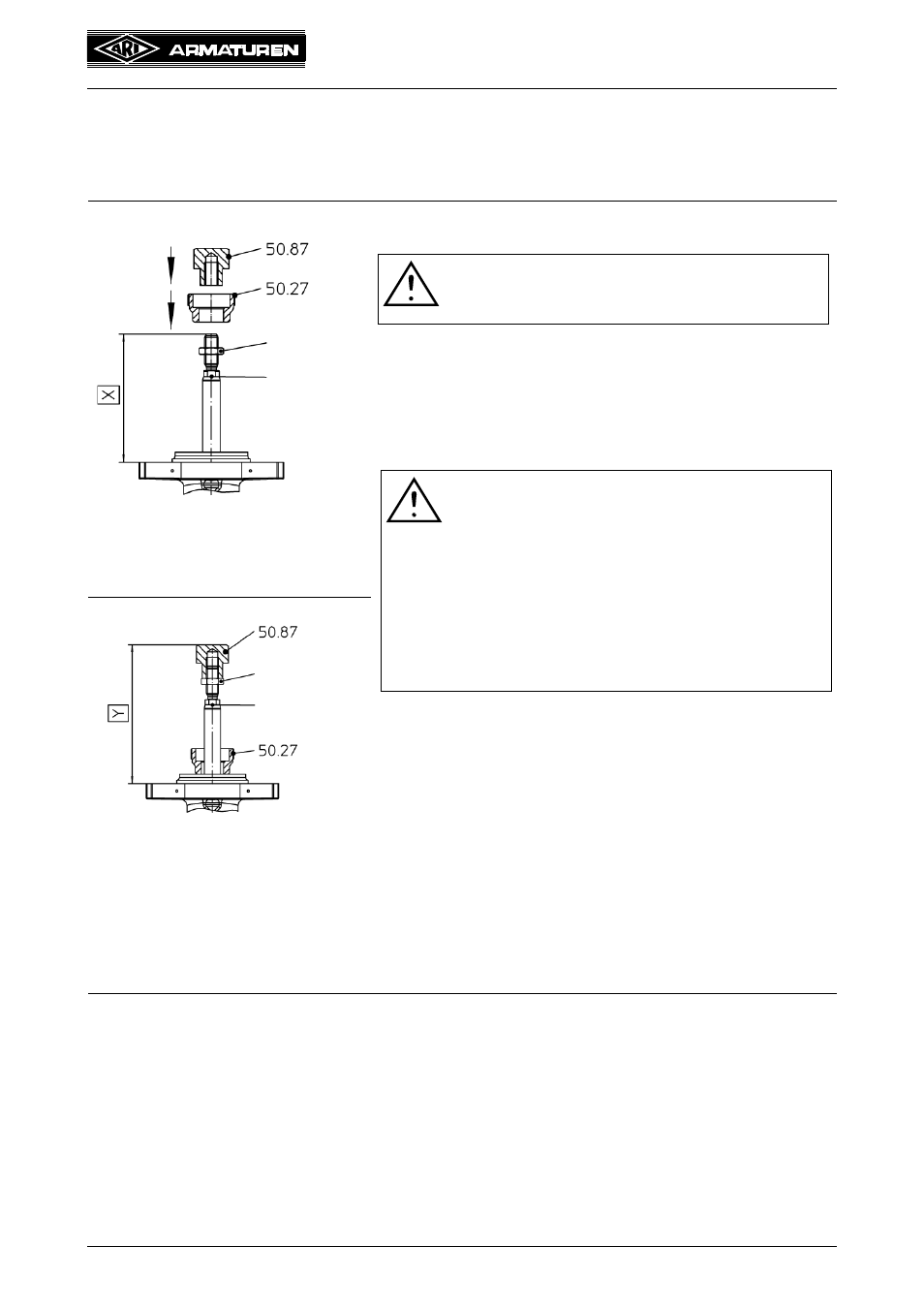

Bild 9-A
Fig. 9-A:
- Turn flat hexagon nut if not present on valve stem.
Fig. 9-A/B:
- Slip coupling (pos. 50.27) over valve stem.
- Screw threaded bush (pos. 50.87) matching the valve onto
the valve stem in accordance with setting dimension (Y)
and lock with hexagon nut.
- Setting dimension (Y) for fitting-projection (X) 83mm =
102mm.
- Setting dimension (Y) for fitting-projection (X) 98mm =
116mm.
Bild 9-B
Hexagon nut
Valve stem
ATTENTION !
X = 60/83mm --> Y = 102mm
(+2mm)
X = 98mm --> Y = 116mm
(+2mm)
ATTENTION !
Setting dimension (Y) and fitting-projection (X)
are measured with inserted valve stem. This
means for
- 2-way valves at closed valve,
- 3-way valves with mixing plug at closed way B,
- 3-way valves with diverting plug at closed way
A
After measuring put the valve plug back in the
mid lift position!
Hexagon nut
Valve stem
