Operating and installation instructions
Thrust actuator ARI-PREMIO-Plus
5.7.2 Analogue output card – Y
out
Scope of supply:
5.7.2.1 Operating principle
The actual position of the driving spindle can be signalled with the analogue output card.
The connector for the output signal is already mounted on the motherboard.
The feedback signal (4 to 20 mA, 0 to 10 V or inverted) corresponds to the switch
configuration on the motherboard.
The characteristic correction function has no effect on the output signal.
5.7.2.2 Technical data
Pcs. Designation
1 Analogue output card
2 PT screws

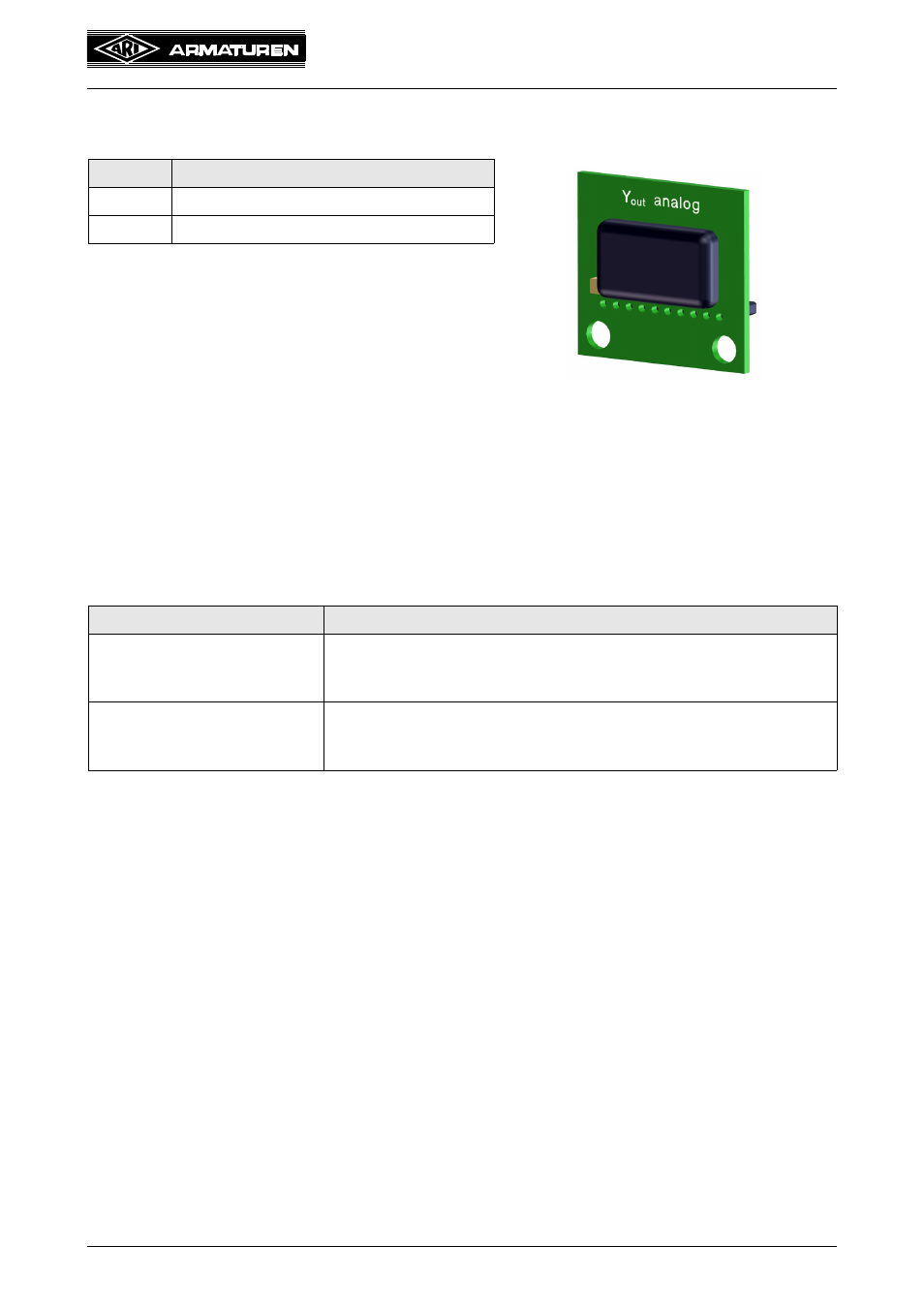

Fig. 21
Type Analogue output card – Y
out
Output control signal Y
U
0 to 10 V DC
- Measuring resistance (load): max. 2 kohm
- Signal resolution: 8 bit
Output control signal Y
I
4 to 20 mA DC
- Measuring resistance (load): max. 500 ohm
- Signal resolution: 8 bit
