Operating and installation instructions
Thrust actuator ARI-PREMIO-Plus

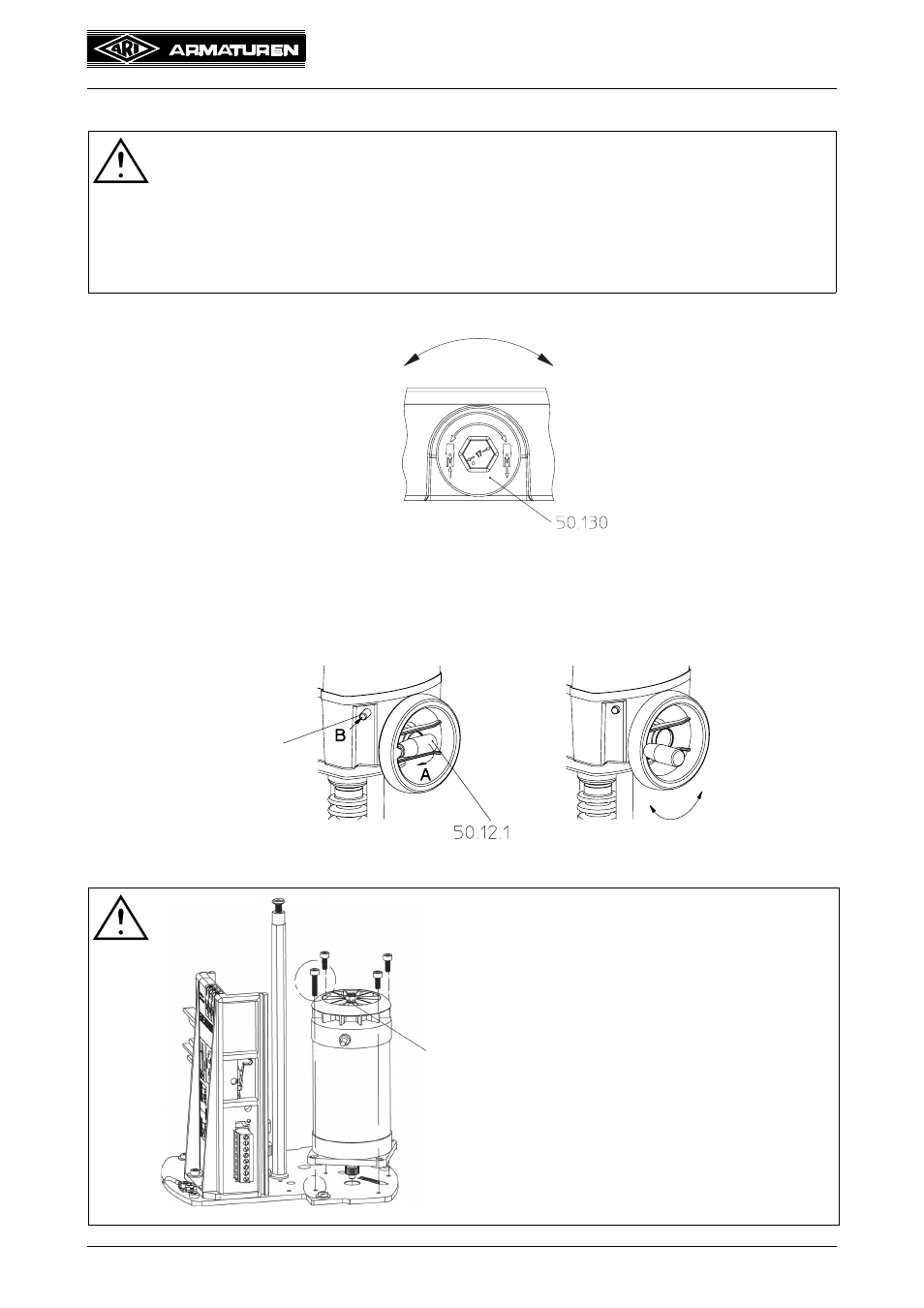

5.2 Manual operation
5.2.1 ARI-PREMIO 2.2 - 5 kN
Fig. 5
5.2.2 ARI-PREMIO 12 - 15 kN
The motor is no longer in mesh when the handwheel is engaged. The handwheel is
automatically disengaged when the motor starts and the motor is once more in mesh.
Fig. 6
ATTENTION !
- The manual operating device always rotates during motor-driven operation
(running indicator). Never activate the manual operating device while the motor
is running. Injury hazard!
- In the manual operating mode pay careful attention in the final positions that the
manual operating device is only turned to the point where the torque switch
trips (audible click) as otherwise damage will be caused to the thrust actuator!
Fig. 7
ATTENTION !
When changing the motor, it’s necessary to
observe for a correct function of the manual
operating device, that the head-cap screw
M4x18 is screwed in the right place.
retracting spindle extending spindle
Engaging button
for manual mode
extending
retracting
