8
5.0 f
rOnT
p
anel
K
eys
a
nd
d
isplay
O
vervieW

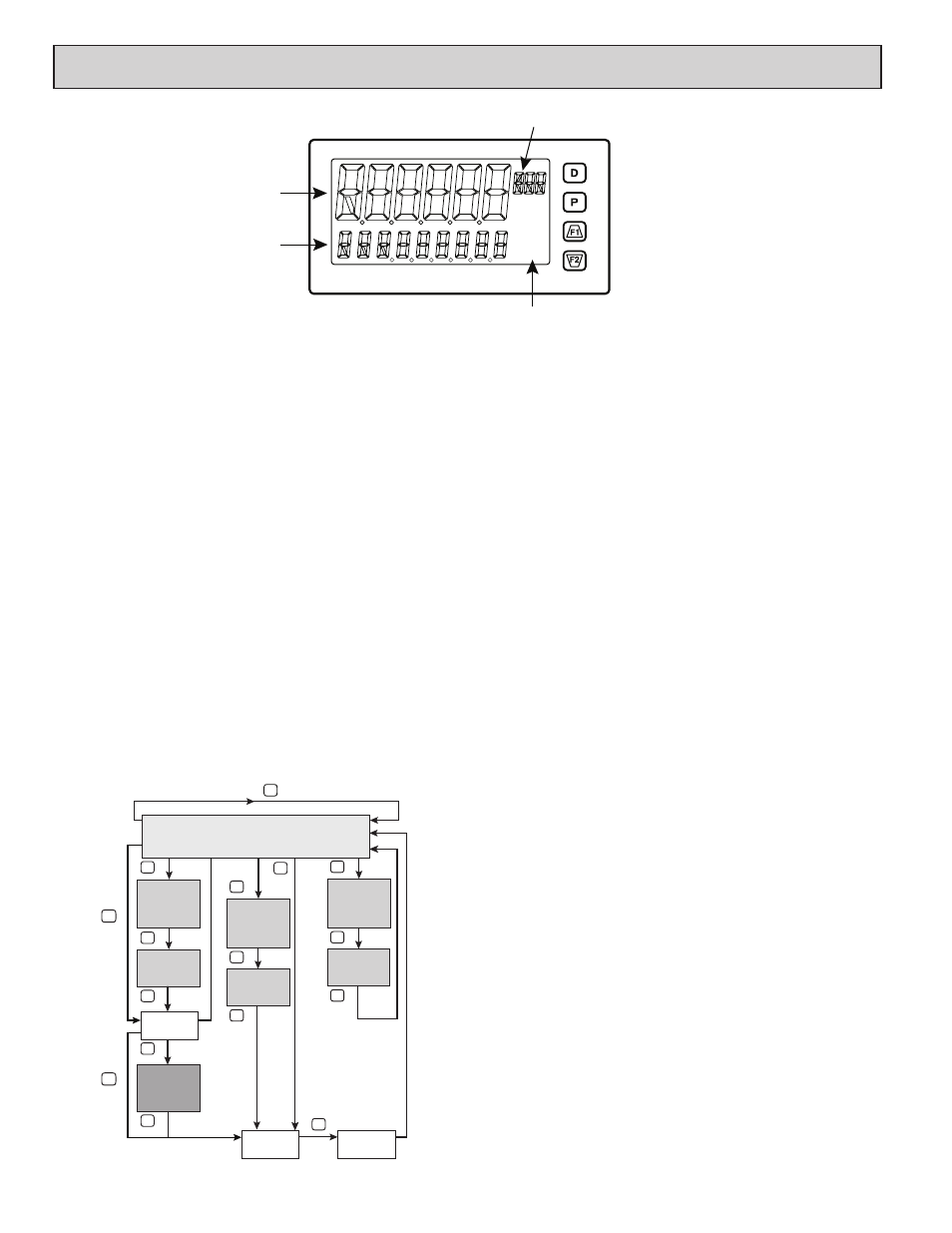

Programmable Units Display
Display Line 1
Display Line 2
1
3
2
4
Setpoint Annunciators
KEY DISPLAY MODE OPERATION PROGRAMMING MODE OPERATION
D Index Line 2 through enabled Line 2 display values Return to the previous menu level (momentary press)
Quick exit to Display Mode (press and hold)
P Enter full programming mode or access the parameter and
hidden display loops; Press and hold to skip parameters and
go directly to Code or Programming Menu
Access the programming parameter menu, store selected parameter
and index to next parameter
! User programmable Function key 1; hold for 3 seconds for
user programmable second function 1*
Increment selected parameter value; Hold ! and momentarily press
@ key to increment next decade or D key to increment by 1000’s
@ User programmable Function key 2; hold for 3 seconds for
user programmable second function 2*
Decrement selected parameter value; Hold @ and momentarily press
! key to decrement next decade or D key to decrement by 1000’s
*Factory setting for F1/F2 and second function F1/F2 is no mode
DISPLAY LINE 1
Line 1 is the large, 6-digit top line display. Values such as, Input, Gross, Tare,
Max(HI), Min(LO), Total and setpoints, can be shown on Line 1. The 3-digit
Units mnemonic characters can be used to indicate which Line 1 display value
is shown. Standard or custom mnemonics are available for the Line 1 values.
See Line 1 parameters in the Display Parameters programming section for
configuration details.
DISPLAY LINE 2
Line 2 is the smaller, 9-digit bottom line display. Values such as Input, Gross,
Tare, Max(HI), Min(LO), Total, setpoints, and parameter List A/B status can all
be shown on the Line 2 display. The display loops described below are used to
view, reset and modify the selected display values, based on the Line 2 Value
Access setting programmed for each available value. See Line 2 parameters in
the Display Parameters programming section for configuration details.
The PAX2S offers three display loops to allow users quick access to needed
information.
Main Display Loop
In the Main display loop, the D key is pressed to sequence through the
selected Line 2 values. A left justified 2, 3 or 4-character mnemonic indicates
which Line 2 value is currently shown. When in the Main display loop, the
Function keys ! and @ perform the user functions programmed in the User
Input parameter section.
Parameter and Hidden Parameter Display Loops
Display loops provide quick access to selected parameters that can be viewed
and modified on Line 2 without having to enter Full Programming mode. These
values include Parameter List A/B selection, setpoints, and display (color,
intensity and contrast) settings. To utilize the Parameter or Hidden Parameter
display loops, a security code (1-250) must be programmed. (See Programming
Security Code in the Display Parameters programming section for details.)
The Parameter display loop is accessed by pressing the P key. The selected
Parameter display loop values can be viewed and/or changed per the Line 2
Value Access setting programmed for each available value. The Hidden
Parameter display loop follows the Parameter display loop, and can only be
accessed when the correct security code is entered at the Code prompt.
Combining the two parameter loops provides an area for parameters that require
general access and/or protected or secure access depending on the application
needs.
While in the Parameter and Hidden Parameter loops, pressing the D key will
return the meter to the Main display loop. To directly access the Code prompt,
press and hold the P key. This can be done from the Main display loop or at any
point during the Parameter display loop. Also, to directly access Full
Programming mode while in the Hidden Parameter loop, press and hold the P
key to bypass any remaining Hidden Parameter loop values.
line 2 display lOOps
Pro
NO
P
COdE
1-250
Pro
End
HIDDEN
PARAMETER
DISPLAY
LOOP
PARAMETER
DISPLAY
LOOP
P
P
P
P P
MAIN DISPLAY LOOP
D
Code 0
PLOC Disabled
Code 1-250
PLOC N/A
Full Programming Mode
P
P
Held
Held
Code 0
PLOC Enabled
DISPLAY
VALUE
dEnt
CHANGE
P
Wrong
code
entered
PARAMETER
DISPLAY
LOOP
P
P
DISPLAY
VALUE
dEnt
CHANGE
P
PARAMETER
DISPLAY
LOOP
P
P
DISPLAY
VALUE
dEnt
CHANGE
P
Held
