17
LINE 1 DISPLAY COLOR
GrEEN rEd OrANGE
Enter the desired Display Line 1 and programmable Units Display color.
DISPLAY INTENSITY LEVEL
0 to 4
Enter the desired Display Intensity Level (0-4) by using the arrow keys. The
display will actively dim or brighten as the levels are changed. This parameter
can also be accessed in the Parameter display loop when enabled.
DISPLAY CONTRAST LEVEL
0 to 15
Enter the desired Display Contrast Level (0-15) by using the arrow keys. The
display contrast / viewing angle will actively adjust up or down as the levels are
changed. This parameter can also be accessed in the Parameter display loop
when enabled.
LINE 1 DISPLAY VALUE SELECT/ENABLE
NO YES
Enter YES to select which values will be shown on the Line 1 display. A sub-
menu provides Yes/No selection for each available Line 1 value. Values set to
YES
in the sub-menu will be displayable on Line 1.
DISPLAY DESCRIPTION FACTORY
INPUt Input YES
GrOSS Gross (absolute) NO
tArE Tare NO
tOtAL Total NO
HI Max value NO
LO Min value NO
S1 Setpoint 1 NO
S2 Setpoint 2 NO
S3 Setpoint 3 NO
S4 Setpoint 4 NO
LINE 1 DISPLAY SCROLL ENABLE/TIME
NO 1 to 15 seconds
If Line 1 Display Scrolling is desired, set the scroll time in seconds.
LINE 1 UNITS MNEMONIC(S)
OFF LAbEL CUSt FACt
Select the mode for Line 1 Units Mnemonic(s). See LINE 1 UNITS
MNEMONIC DIAGRAM for programming details.
SELECTION MODE DESCRIPTION
OFF OFF No Line 1 mnemonic shown.
LAbEL LABEL Single programmable mnemonic
shown for all Line 1 values.
CUSt CUSTOM Custom programmable mnemonics
shown for each Line 1 value.
FACt FACTORY Factory default mnemonics shown for
each Line 1 value.
The characters available for the programmable modes include:
A b C d E F G H I J K L M N O P Q R S t U V W Y Z 0 1
2 3 4 5 6 7 8 9
a c e g h i m n o q r u w - = [ ] / ° _ blank
Color
GrEEN
Ln1
d-LEV
4
dSP
d-Cont
7
dSP
SELECt
NO
Ln1
ScroLL
NO
Ln1
UNItS
OFF
Ln1
Two character spaces are required to display this character.
d
isplay
p
arameTers
(dISPLY)

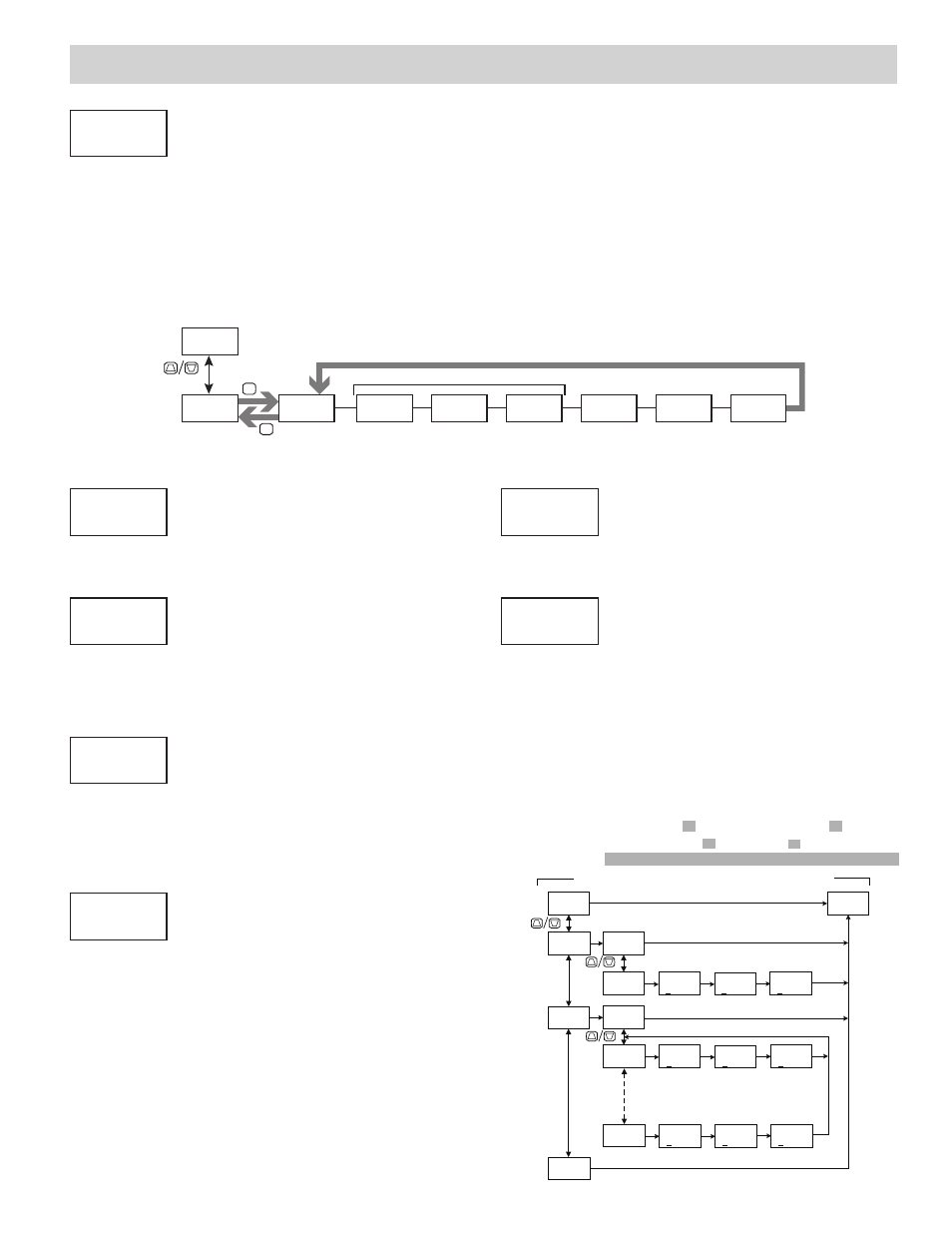

LINE 1 PARAMETERS (LINE 1)
This section details programming for the Line 1 (Top Line) Display. The Input, Gross, Tare, Total, Maximum (HI) and Minimum (LO) capture values and setpoints
can be shown on the Line 1 display. The 3-digit Units mnemonic characters can be used to indicate which Line 1 display value is shown. Standard mnemonics are
available for Setpoints 1-4. Standard or custom mnemonics are available for all other Line 1 values.
Main Display Loop
In the Main display loop, the selected values can be consecutively read on Line 1 by activating a user input or function key programmed as SEL L1. Each time the
user input/function key is activated, Line 1 display will change to the next enabled Line 1 display value. Line 1 can also be programmed for Scroll, which will cause
Line 1 to automatically scroll through all of the selected Line 1 display values.
DISPLAY SELECT
LINE 1 LINE 2 SCNdrY tOtAL
Select the Display to be programmed.
dISPLY
LINE 1
Color
GrEEN
Ln1
Line 1 Display
Color
d-LEV
4
dSP
Display
Intensity
SELECt
NO
Ln1
Line 1
Display Values
d-Cont
7
dSP
Display
Contrast
ScroLL
NO
Ln1
Line 1 Scroll
Enable/Time
UNItS
OFF
Ln1
Line 1 Units
Mnemonics
dISPLY
LINE 1
Selected Line 1 Color Displayed
Pro
dISPLY
Pro
NO
F1 F2
P
D
P
LINE 1 UNITS MNEMONIC DIAGRAM (3-DIGITS)
Edit 123
NO
P Edit Ln1
NO
P
123 = Current Units Mnemonic
P UNItS Ln1
OFF
dISPLY
LINE 1
UNItS Ln1
LAbEL
Edit 123
YES
UNItS Ln1
CUSt
UNItS Ln1
FACt
Edit 123
INPUt
Unit 1 123
1
Unit 2 123
2
Unit 3 123
3
Edit 123
LO
P P P P
Unit 1 123
1
Unit 2 123
2
Unit 3 123
3
P P P P
P
P
Unit 1 123
1
Unit 2 123
2
Unit 3 123
3
P P P P
(returns to currently selected value)
F1 F2
F1 F2
F1 F2
GrOSS
tArE
tOtAL
HI
