Chapter 4 ________________________________________________________________ Installation
1006-079

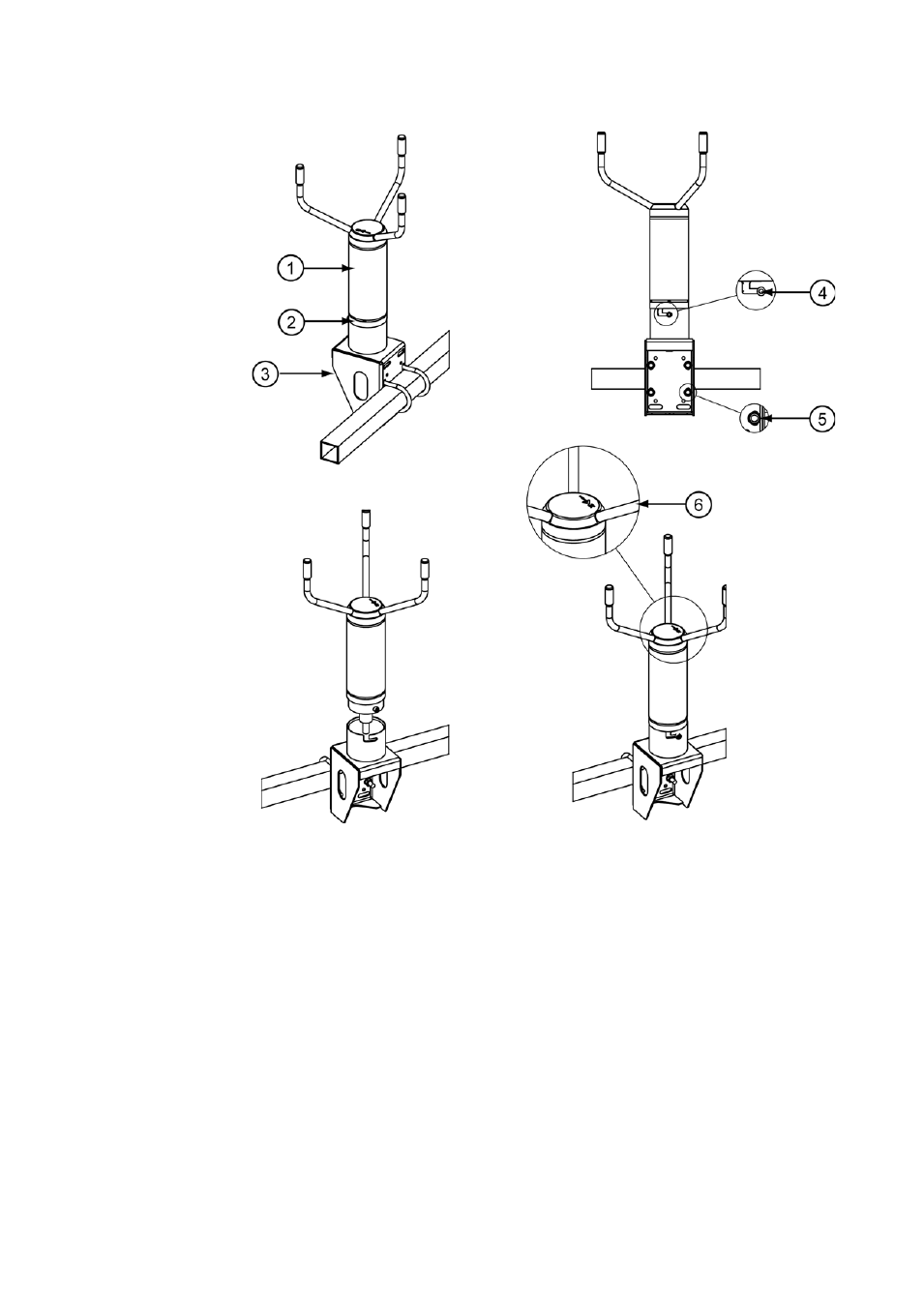

Figure 28 WMT700 on Cross Arm with Array Facing Up
The following numbers refer to Figure 28 above:
1 = WMT700 wind sensor
2 = Mounting adapter
3 = FIX70 mounting kit
4 = Mounting screw in final position
5 = U-bolt and nut (M8DIN934-A4) in vertical slot
6 = North arrow
VAISALA ________________________________________________________________________ 69
