Chapter 3 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 23
CHAPTER 3
INSTALLATION
This chapter provides you with information that is intended to help you
install this product.
Mounting
A horizontal mounting position is recommended in order to minimize the
problems caused by possible condensation.

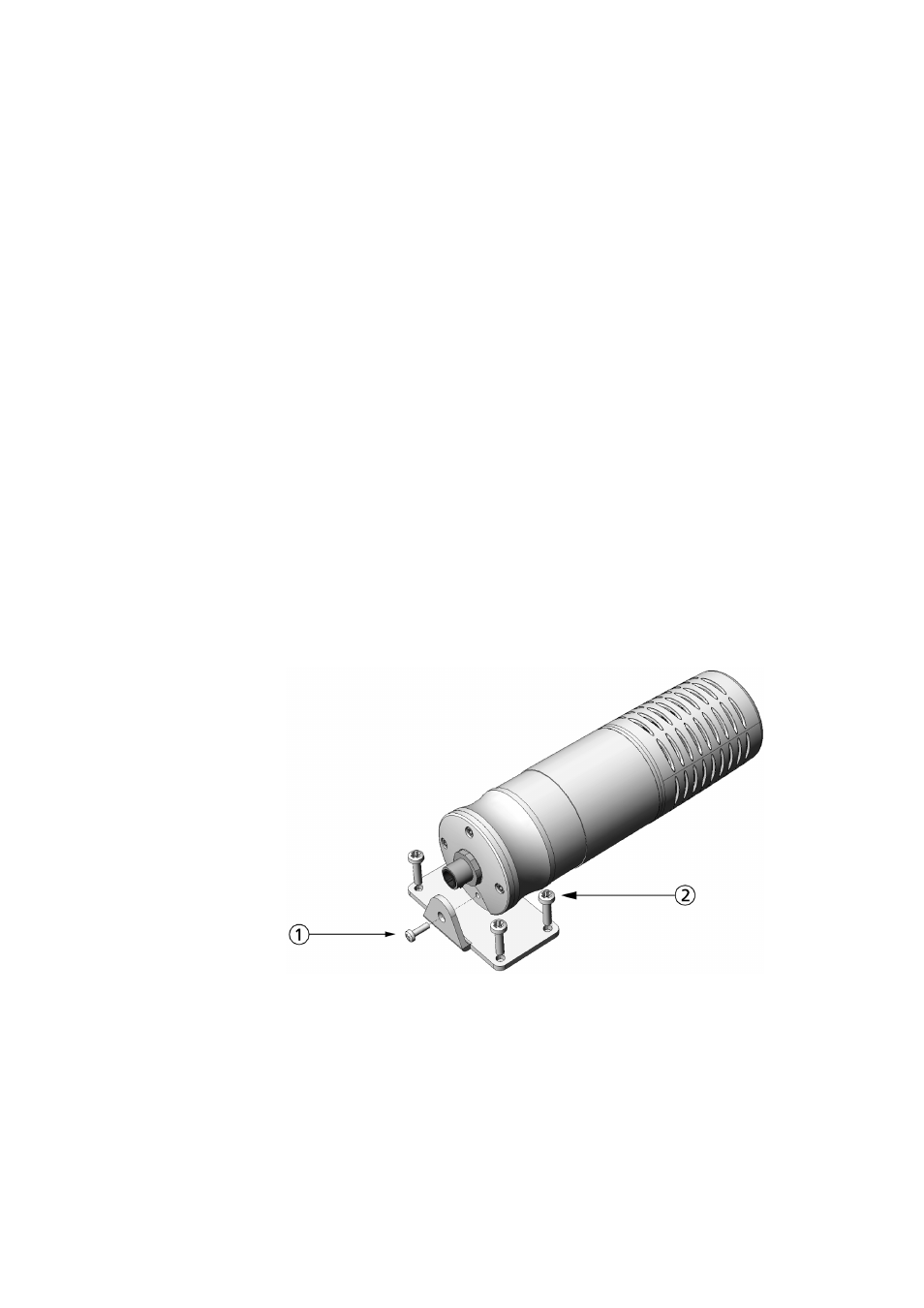

0704-020
Figure 7
Mounting GMP343
1.
Fasten the GMP343 to the mounting bracket by using the screw
provided.
2.
Mount the mounting bracket with 4 screws (on corners of the plate).
