3-9
CORRECTIVE MAINTENANCE - Continued
Replace White Light Lens Cap
NOTE
This procedure is easier to accomplish with the
Reflector Assembly Cover and reflector assembly
o-ring removed.
1. If applicable, remove the old Lens Cap by pulling it off the
MIPIM housing.
2. Remove the Reflector Assembly Cover by turning it
counterclockwise until it comes free of the MIPIM
housing.
3. Use the fingers of one hand to squeeze the reflector
assembly o-ring while simultaneously pushing it out of its
groove. Grasp the o-ring with fingers of the other hand
and pull it off the reflector assembly.
4. Stretch the looped end of the replacement Lens Cap
around the reflector assembly.

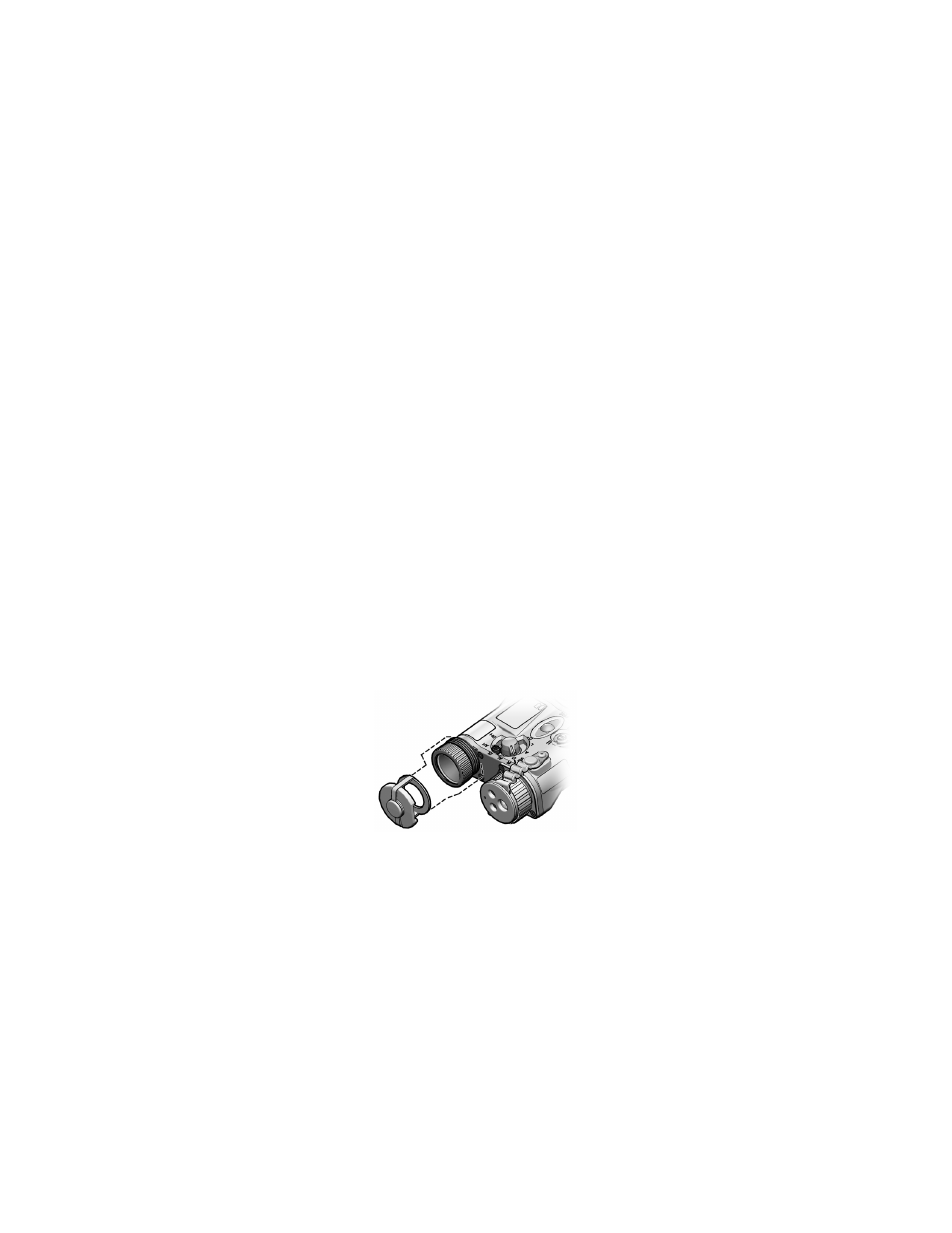

Figure 3-4 Replacing White Light Lens Cap
