2.7 MODES OF OPERATION - Continued
Safety Screw
A removable safety screw installed in the lockout position
prevents the Mode Selector from being turned to the high
power laser settings (i.e., AH, DH). This configuration is
appropriate for a training environment or when the MIPIM is
being stored. A 3/32” hex head wrench is used to remove
the safety screw when, for tactical reasons, access to the
high power laser settings is desired (see paragraph 3.3.5).
The safety screw storage location allows for secure storage
of the safety screw after it has been removed from the
lockout position.

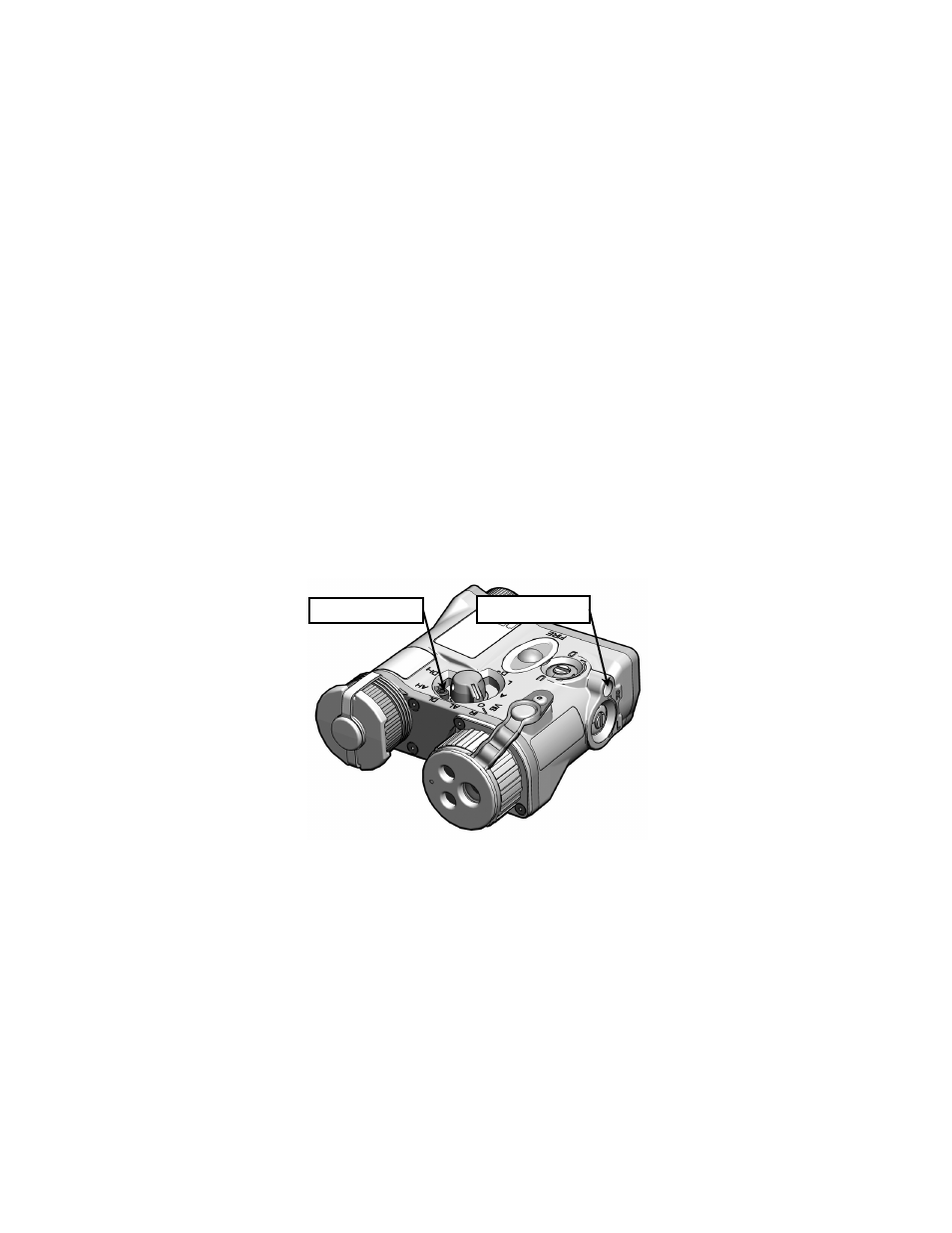

Figure 2-7 Safety Screw Shown Lockout Position
SAFETY SCREW
LOCKOUT POSITION
SAFETY SCREW
STORAGE LOCATION
