3.3 CORRECTIVE MAINTENANCE - Continued
Replacing Battery Cap / Battery Cap Lanyard
1. Turn the battery cap counterclockwise until it comes free
of the battery compartment threads.
2. Use the fingers of one hand to squeeze the battery cap
o-ring while simultaneously pushing it out of its retaining
groove. Grasp the o-ring with fingers of the other hand
and pull it off the battery compartment threads.
3. Simultaneously stretch and pull the larger eye of the
battery cap lanyard off the battery compartment threads.
4. Pull the smaller eye of the battery cap lanyard off the
battery cap post.

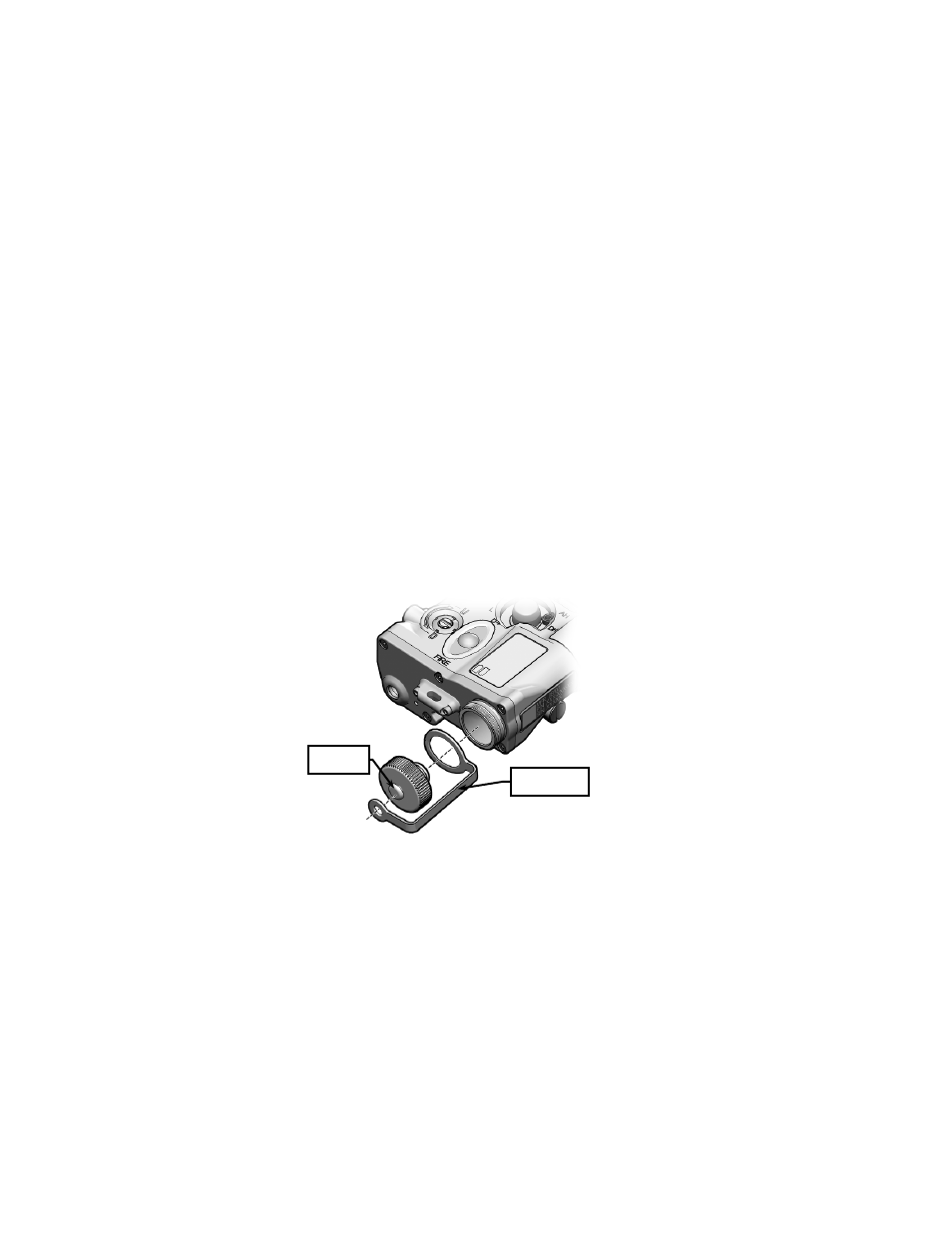

Figure 3-2 Replacing Battery Cap / Battery Cap Lanyard
B AT T E R Y
C AP P OS T
B AT T E R Y C AP
L ANY AR D
