CORRECTIVE MAINTENANCE - Continued
2. Remove the Reflector Assembly Cover by turning it
counterclockwise until it comes free of the MIPIM
housing.
3. Use the fingers of one hand to squeeze the reflector
assembly o-ring while simultaneously pushing it out of its
retaining groove. Grasp the o-ring with fingers of the
other hand and pull it off the reflector assembly.
4. Apply a light coating of fluorinated grease to the
replacement o-ring.
5. Stretch the replacement o-ring over the threaded portion
of the reflector assembly and slip it into its retaining
groove.
6. Reinstall the Reflector Assembly Cover; press down, and
rotate the reflector assembly clockwise to thread it onto
the MIPIM housing.

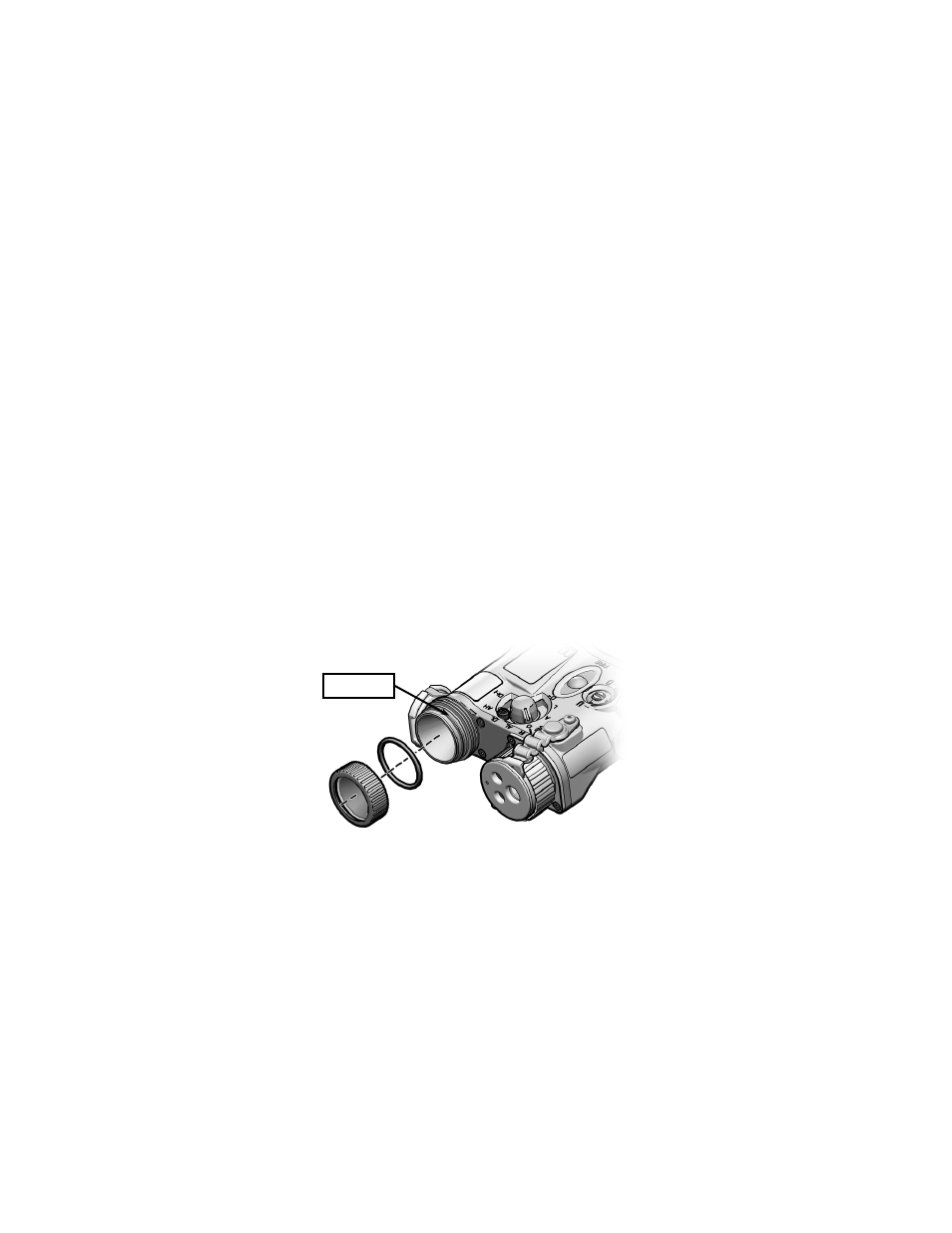

Figure 3-3 Replacing Reflector Assembly O-Ring
RETAINING
GROOVE
