2.3 MOUNTING CONFIGURATIONS / PROCEDURES
Rail Grabber Bracket
The MIPIM is equipped with an integral rail grabber bracket
(Figure 2-2) that is designed for direct attachment to
weapons with a MIL-STD-1913 rail.

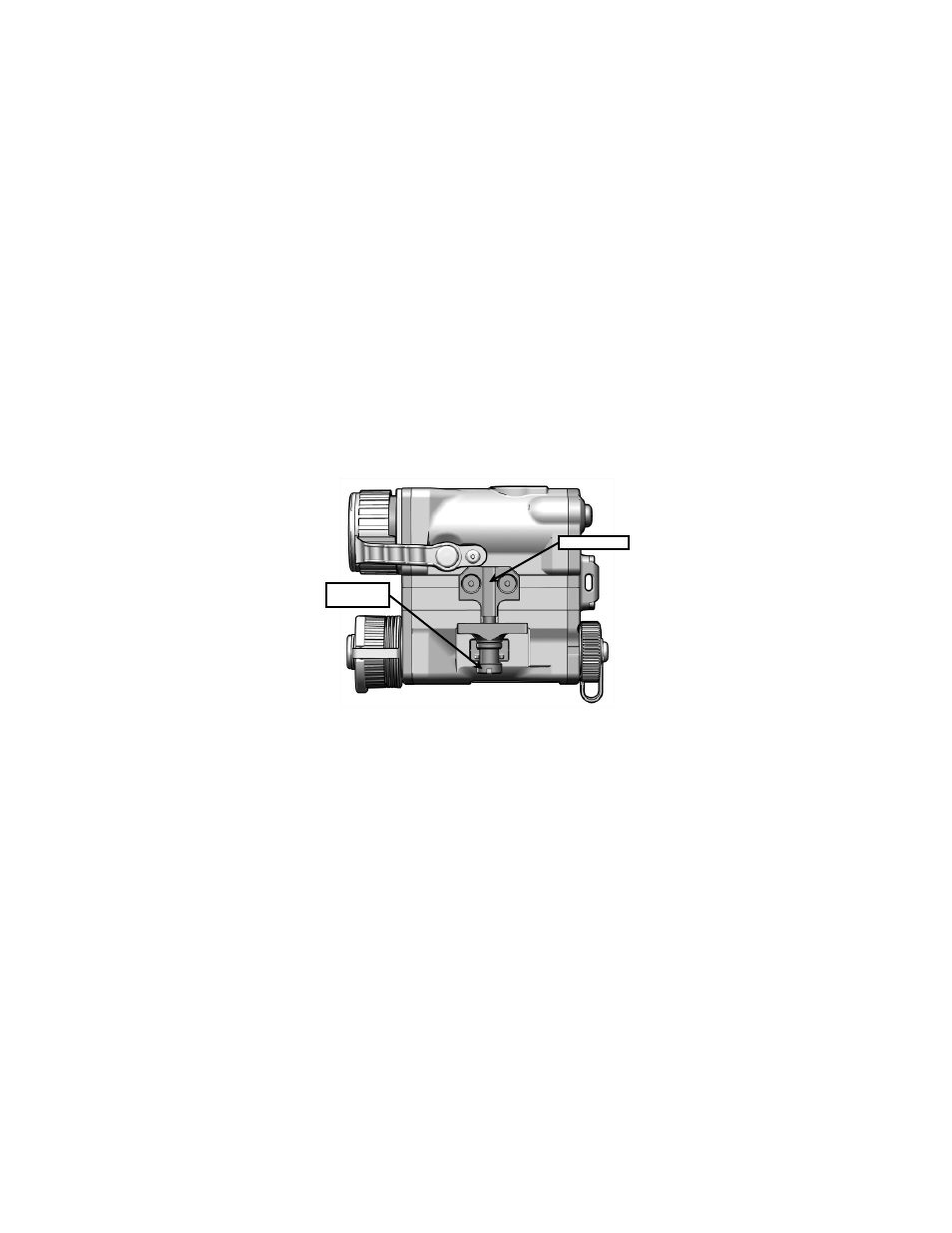

Figure 2-2 Rail Grabber Bracket
Mounting Configurations
The MIPIM can be mounted on either the top or side rails of
the host weapon.
MOUNTING
SCREW
RECOIL LUG
