2.4 BORESIGHT ADJUSTERS - Continued

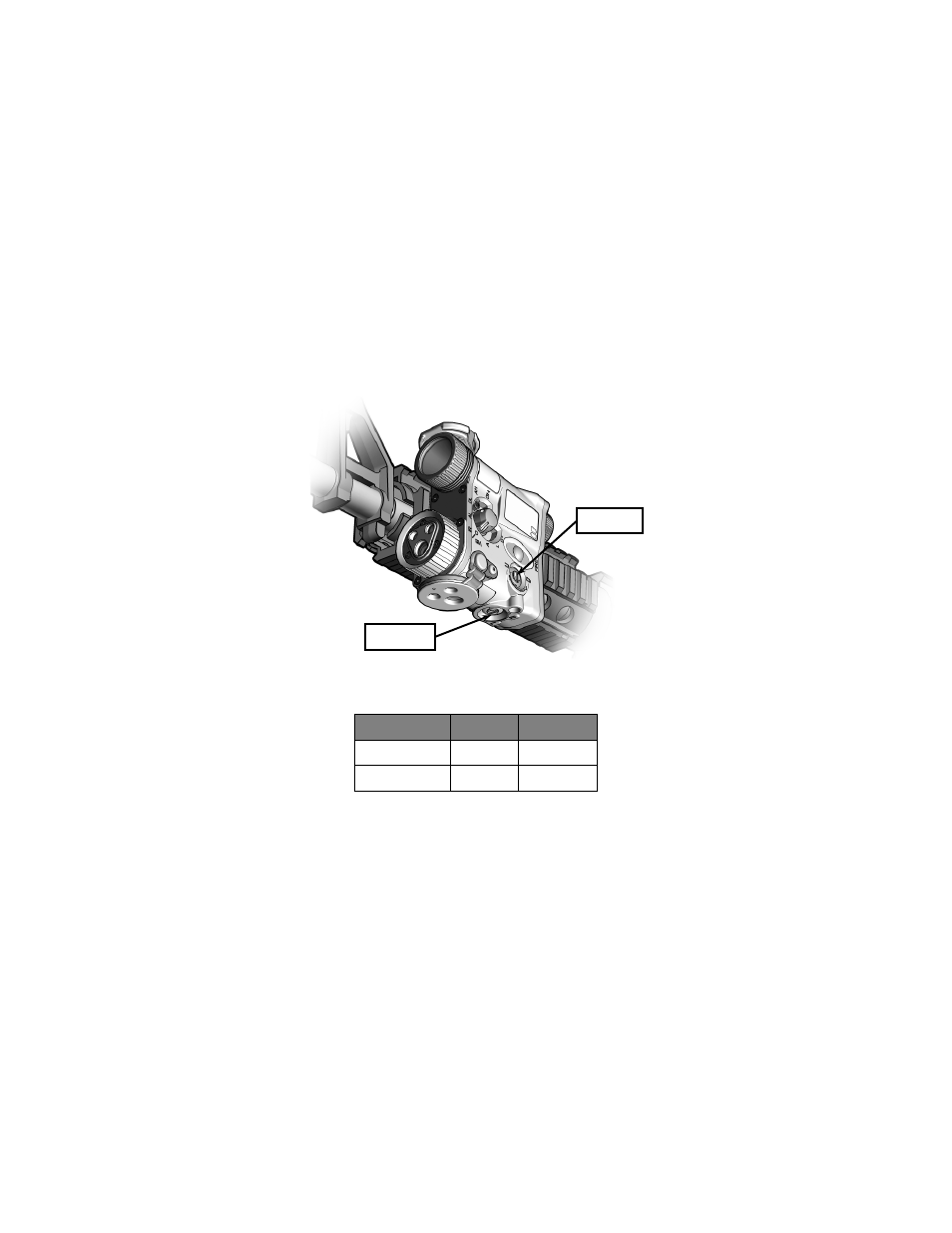

Figure 2-4 Boresight Adjusters (Left Side Mounted)
Table 2-2 Shot Group Movement (Left Side Mounted)
Adjuster Rotation
Shot Group
Movement
Side Adjuster
Windage
CW
CCW
Left
Right
Bottom Adjuster
Elevation
CW
CCW
Down
Up
SIDE
ADJUSTER
BOTTOM
ADJUSTER
