2-21
2.8 USING THE LASERS - Continued

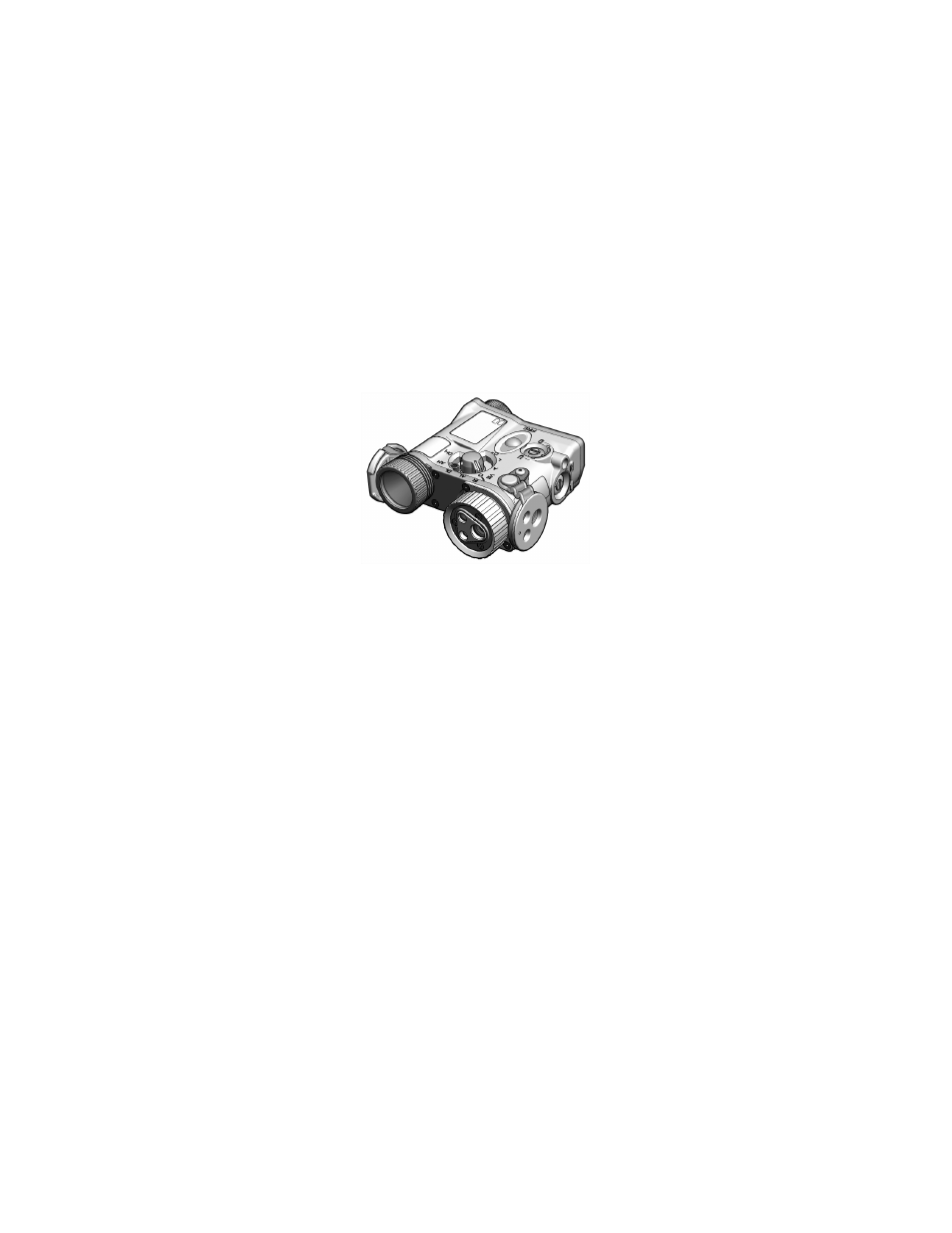

Figure 2-11 Lens Caps Uninstalled
Pattern Generator / Illuminator Diffuser Lens Cap
Five different Pattern Generator / Illuminator Diffuser Lens
Caps are supplied with the MIPIM for command and control
purposes. Each incorporates an Illuminator Diffuser and one
of five different Aim Laser Pattern Generators (i.e., circle,
square, triangle, T-shape, cross). Only one Pattern
Generator / Illuminator Diffuser Lens Cap may be used at a
time and may not be used in conjunction with the Tri-
Function Lens Cap. When installed, the lens cap serves the
following purposes:
