7. Screen buttons 1 and 2: The screen buttons allow you to quickly

enter menu functions such as “back” or “edit” when prompted
on the screen. Button one is the button on top, button two is on
the bottom.

8. Digital  L.E.D.s:  These  programmable  LEDs  are  designed  for  use

with the virtual tree function.

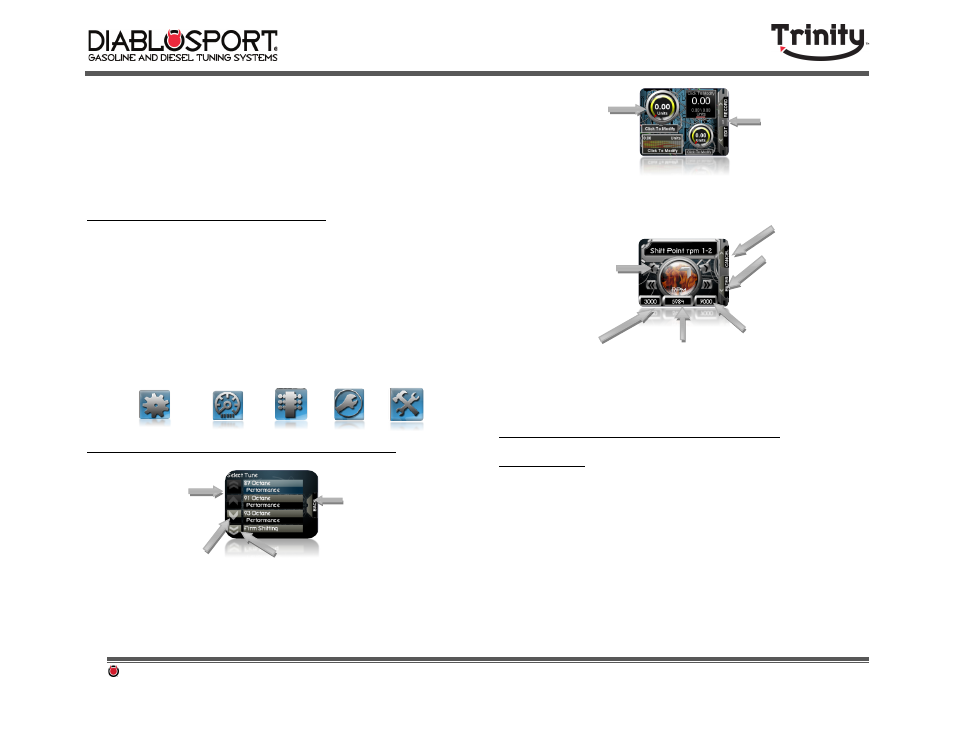

Trinity Menu Navigation

As one of the most advanced tuning devices on the market one can only expect
the Trinity to have one of the most advanced user interfaces on the market as
well. The Trinity allows several ways for the user to navigate through it’s menus
and make selections. In this section we will go over some basic information about
some of the Trinity’s touch screen features.  NOTE: Your Trinity’s physical buttons
can always be used to navigate through menus using the up, down, left right and
enter  keys  or  the  Screen  Button  1  &  2  which  correspond  to  right  screen  menu
items.



Trinity selection menu buttons:















Section 2:Trinity tuning
options

The Trinity’s tuning options vary depending on the vehicle being tuned.,
If you have a 2008 Chrysler 300C  your options in the performance tune
menu  might  be: 93 Octane Performance tune or 91 Octane Performance
Tune versus  a 2007 F‐350 with a 6.0L PowerStroke which might have the
options    like  40  HP  Towing  Tune,  65  HP  Economy  Tune,  and  100  HP
Extreme Tune.

Note: These options may vary based on the vehicle application and the Trinity’s
software version.





A Blue Flashing Light on
a  screen  object  means
that  it’s  the  current
selection.    To  enter  it
either  tap  the  Trinity
Screen  on  it,  or  press
the

round

physical

enter key.

The  Single  Arrow  on  the  Trinity
Screen  moves  the  selection  up  or
down by one.

The Double Arrow moves the selection
up  or  down  by  an  entire  page,  or
group of options.

When  the  back  button  is
present  on  the  right  side
of the screen, press it go
back  to  the  previous
menu  screen.  Note  you
may  be  prompted  to
make

decision

depending on what menu
you are in.

Tap  a  gauge  while  on  the
screen  to  modify  what
parameter

it

is

monitoring.  You  will  be
prompted  to  choose  from

list

of

available

parameters. A Detailed list
is  available  later  in  this
manual.

Other  buttons  on  the  right
hand  side  of  the  screen  will
access

addition

menu

options for the current mode
the  Trinity  is  in.  This  can  be
anything  from  edit,  record,
modify, or back.

A Single Arrow is referred to as
a  “Fine”  adjustment  in  the
modify  parameters  menu
while  a  Double  Arrow  is
referred  to  as  a  course
adjustment.  Fine  adjustments
modify  a  parameter  by  the
smallest

increment

and

likewise a course adjustment is
a larger increment.

The  number  on  the
bottom  left  represents
the  lowest  possible
increment

for

an

adjustable parameter.

The  number  in  the  center
represents  the  current
setting  for  an  adjustable
parameter.

The number on the
bottom right represents
the maximum setting for
an adjustable parameter.

The  buttons  on  the
right  side  of  the
screen are enter and
cancel  respectively.
These  will  either
enter  your  selection
for  a  parameter,  or
cancel any changes.

Performance

 Tune

Monitoring

Mode

Racing

Mode

Options

 Menu

Vehicle

Diagnostics
