DiabloSport
Trinity
Comprehensive
User
Manual
Ver.
2.04


Page
19




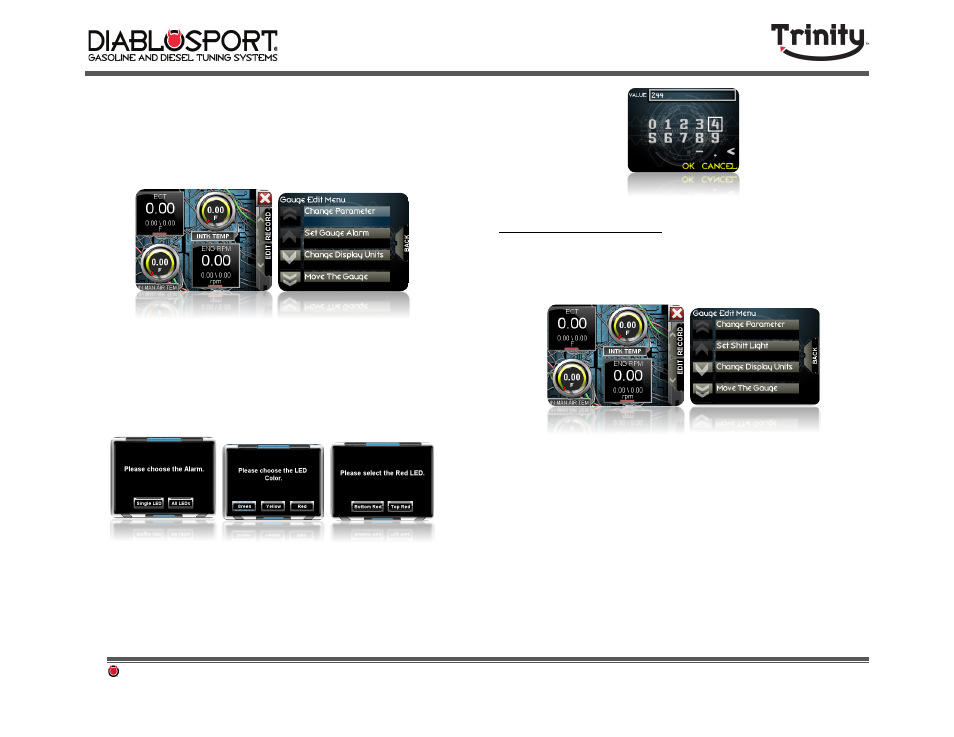

Let’s look at how to set up an Alarm in your setup:

Step 1: From
the
logging
menu,
tap
a
gauge
that
you
would
like
to
set
an

alarm
for,
bringing
up
the
“gauge
edit”
menu.





Step 2: Select
“Set
Gauge
Alarm”
and
choose
an
Alarm
type.
You
have
the

choice
to
make
all
the
LEDs
light
or
just
one
LED.
Select
“Single
LED”
and

you
will
be
prompted
to
choose
which
color
(Green,
Yellow,
or
Red).
For

this
exercise
we
will
choose
the
Red
LED,
next
you
will
choose
which
Red

LED
you
would
like
to
set
the
alarm
for
(top
or
bottom).






Step 3: Now
enter
the
value
at
which
you
would
like
the
Gauge
Alarm
to

be
triggered.
Press
“OK”
and
the
gauge
alarm
is
now
set.


Example: you would like to set an alarm for your engine temp to go off at
244 degrees to avoid over heating.





4.6- Setting A Shift Light

Step 1: From
the
logging
menu,
tap
a
gauge
that
is
set
to
“Engine
Speed”

or
RPM
in
order
to
enable
the
shift
light
function
in
the
“Gauge
Edit

Menu.”





Step 2: Select
“Set
Shift
Light”
and
choose
a
Shift
Light
Type.
You
will
have

the
option
to
choose
between
a
single
LED
shift
light,
All
the
LEDs,
or
a

Progressive
display
(the
lights
“count‐down”
incrementally
to
your

specified
shift
point
from
green
to
red
to
prepare
you
to
shift).
Note
that

setting
all
LEDs
or
Progressive
may
affect
the
display
of
other
alarms
you

have
set.
If
you
are
using
in
conjunction
with
gauge
alarms
you
may
want

to
set
it
for
a
single
LED.
