DiabloSport
Trinity
Comprehensive
User
Manual
Ver.
2.04


Page
17


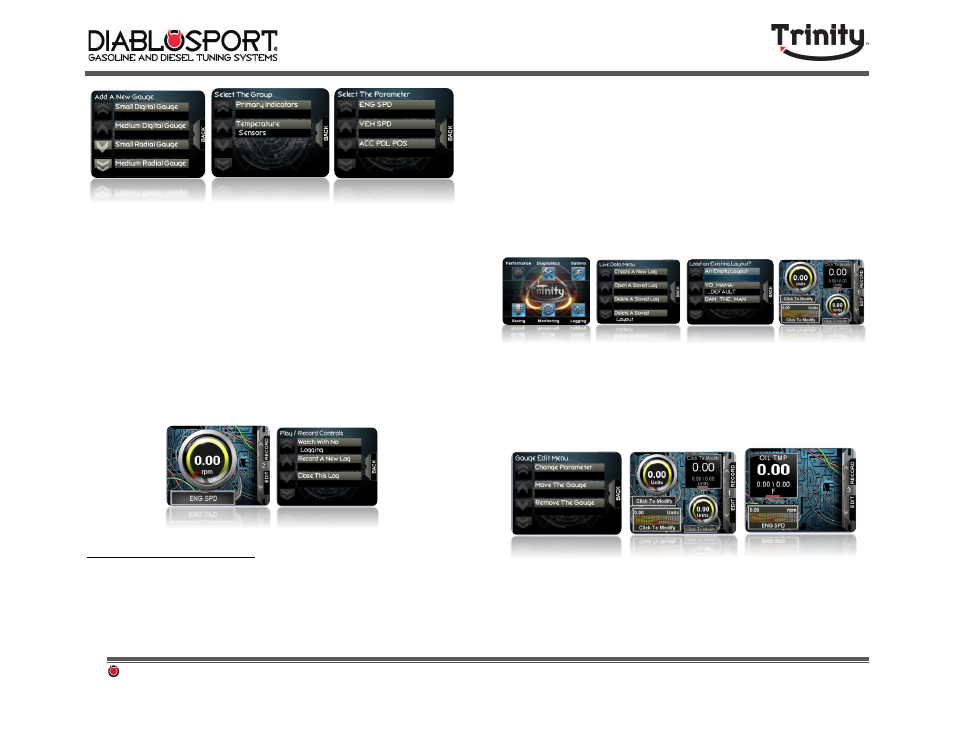

Step  7:
 You
 will
 now
 see
 your
 large
 radial
 gauge
 on
 screen

displaying
 engine
 speed.


Repeat
 steps
 2
 through
 6
 until
 you
 are


satisfied
with
your
Gauge
page
then
enter
the
Log
Play/Record
menu
to

start
recording
your
custom
gauges!!!


4.3- Working with Gauges

In the last section, we worked on creating a new gauge layout, now
we will look at how to modify this setup to allow for multiple gauges,
how to move gauges on the screen, and working with gauge pages.

At this point your may be asking, how will I monitor everything I need
with  a  maximum  of  5  gauges  on  the  screen  simultaneously?  This  is
where  gauge  pages  come  in  to  play!  The  Trinity  can  hold  dozens  of
custom gauge pages per log file. This means you can monitor several
gauges  at  once  with  the  pages  switchable  on  the  fly  using  the
directional buttons or by tapping the touch screen!



Step 1:
Press
the
“Logging”
button
on
the
Trinity
Main
Menu
and
“Open
a

Saved
Log
File”.
Choose
your
log
file
and
touch
a
gauge
on
screen
to
bring

up
the
Gauge
Edit
Menu.


Step 2:
Select
“Move
Gauge”
from
the
“Gauge
Edit”
menu.
You
can
now

use
the
Trinity’s
directional
buttons
to
the
right
of
the
screen
to
move
the

gauge
up,
down,
left
or
right
depending
on
your
desired
position.
Tap
the

gauge
 on
 the
 screen
 to
 lock
 it
 in
 place
 when
 you
 are
 happy
 with
 its

location.


Step  3:
 Now
 Press
 the
 “EDIT”
 button
 on
 the
 right
 side
 of
 the
 screen
 to

enter
 the
 Live
 Data
 Edit
 menu.
 From
 the
 Live
 data
 Edit
 Menu
 select

manage
gauge
pages
and
then
“add
a
new
gauge
page”.
This
will
bring
up
a

new
empty
gauge
page.
