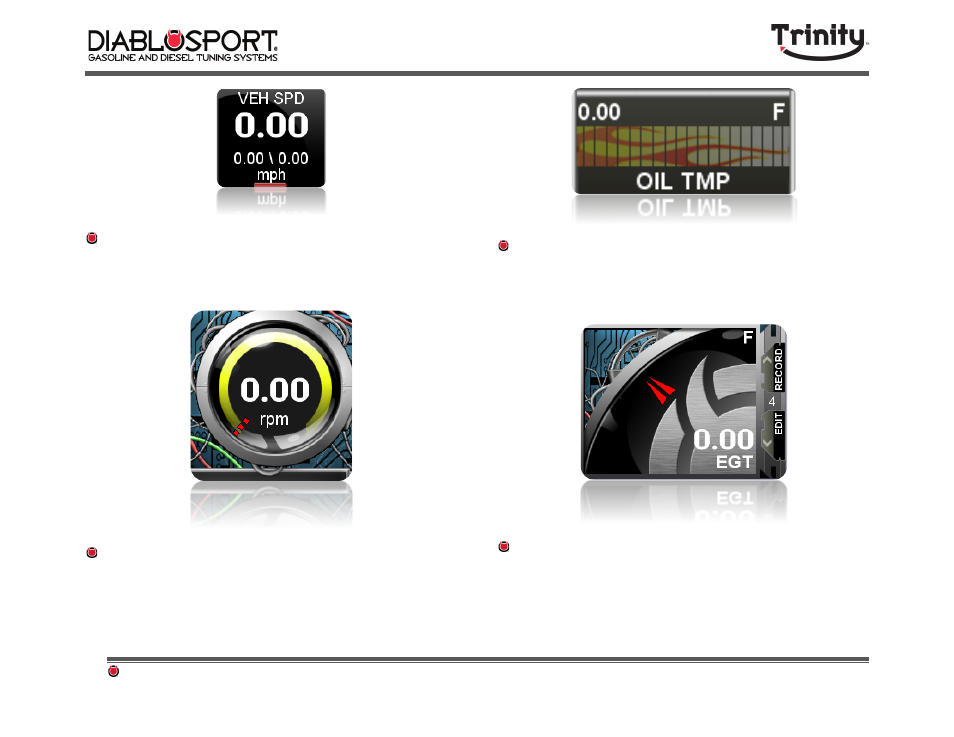

Small/medium/large Radial Gauge: a
270
degree
sweeping
style
gauge
similar
to
most
standard
analog
gauges.
Horizontal Slider: This
Gauge
type
is
designed
to
monitor
from
zero
to
peak
values.
As
you
begin
using
this
gauge
it
will
flutter
until
the
Trinity
finds
a
peak
parameter
value.
Once
Trinity
has
found
a
high
and
low
value
the
gauge
will
settle
and
flow
normally
left
to
right
as
data
increases
or
decreases.
Small/Medium/Large Wiper Gauge:
The
wiper
gauge
is
a
90
degree
sweeping
gauge
similar
to
the
radial
gauge,
but
with
less
total
movement.
This
is
an
excellent
choice
for
monitoring
engine
fluid
levels
or
EGTs.
Playback Timer:
A
digital
read
out
of
the
time
passed
while
recording
a
data
log.
This
is
useful
while
tuning
because
it
will
tell
you
at
what
point
in
your
log
certain
events
happen.
It’s
always
wise
to
use
this
option
while
logging
data.
