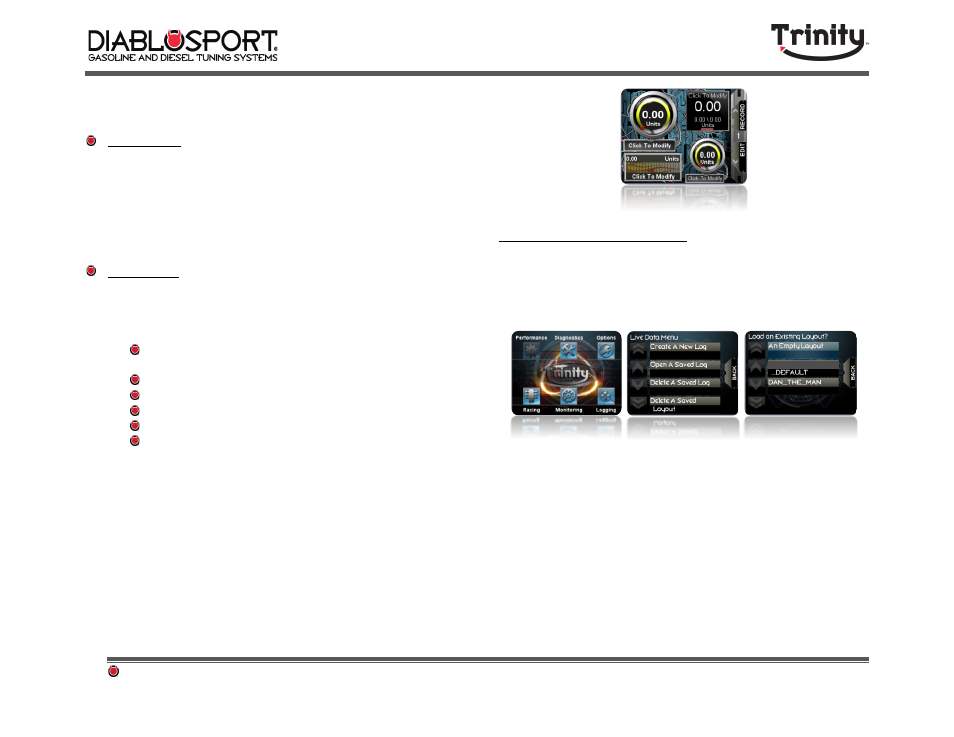

DiabloSport
Trinity
Comprehensive
User
Manual
Ver.
2.04


Page
15


monitoring
 10‐15
 parameters
 at
 once,
 but
 the
 Trinity
 has
 the

capability
of
logging
many,
many
more.



Gauge  layouts:  The
 Gauge
 layout
 is
 the
 actual
 setup
 you
 create
 for

your
gauges
on
the
screen.
It
exists
independently
of
any
parameters

you
have
selected
to
log,
and
can
be
set
to
view
different
parameters

at
 any
 time.
 A
 gauge
 layout
 with
 pre‐selected
 parameters
 will
 be

helpful
when
you
are
in
monitor
mode
since
you
can
immediately
view

the
 parameter
 data
 when
 you
 start
 the
 vehicle.
 You
 can
 save
 your

gauge
setup
as
a
separate
file
from
the
log
you
created
it
with.


Gauge  Pages:  Trinity
 Gauge
 pages
 allow
 for
 a
 few
 different
 basic

setups
 that
 you
 can
 customize.
 The
 following
 guidelines
 that
 should

help
 you
 create
 your
 own
 gauge
 layouts,
 the
 Trinity
 will
 fit
 the

following
options
on
screen
at
once:


4 small style gauges (Small Radial, Small Wiper, Small Digital, or a
playback timer)



1 medium style gauge,  2 small style gauges and a horizontal slider



4 horizontal sliders



2 small style gauges and 3 horizontal sliders



1 large style gauge



Your own Custom layout!





Your
placement
of
these
gauges
on
the
screen
will
determine
how
many

gauges
are
available.
Each
Trinity
Gauge
page
allows
only
so
much
space

on
the
screen
to
display
your
virtual
gauge,
if
you
overlap
gauges
on
the

screen,
they
will
not
display
properly.





4.1- Logging with the Trinity

Step 1:
To
access
the
Trinity’s
logging
features
touch
the
“Logging”
button

from
the
main
menu.
Choose
“Create
A
New
Log”.
Choose
a
layout
for
the

log
file
you
are
opening.
Remember
that
the
log
file
and
the
gauge
layout

are
independent
and
can
be
saved
separately.


Step 2:
You
are
now
in
the
“Log
Play/Record”
menu
and
should
see
gauges

present
on
the
screen.
Press
the
“RECORD”
button
on
the
right
hand
side

of
the
Trinity
screen,
or
use
button
1.
You
can
now
choose
if
you
would
like

to
 monitor
 real
 time
 data,
 or
 record
 the
 data
 you
 are
 viewing.
 Select

“Record
a
New
Log”
and
drive
your
vehicle.



Step  3:
 When
 you
 have
 completed
 your
 test
 drive
 you
 will
 need
 to
 save

your
 log
 file
 if
 you
 would
 like
 to
 view
 later.
 See
 Section  4.8
 later
 in
 this

manual
for
more
information
on
saving
a
log
with
Trinity.
