DiabloSport
Trinity
Comprehensive
User
Manual
Ver.
2.04


Page
4


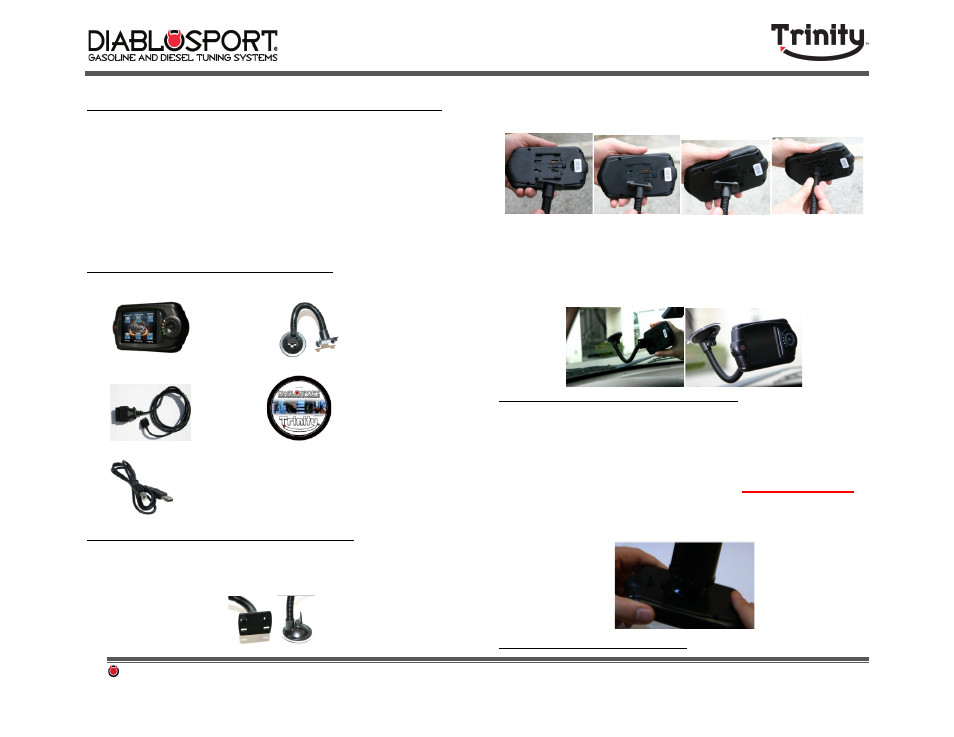

Section 1: Setup & Installation

Thanks for your purchase of the DiabloSport Trinity! You now have one
of the most powerful tuning and diagnostic tools on the planet! No other
device on the market brings you the features like tuning, monitoring, a
color touch screen, cutting edge graphics, data logging, and custom
tuning options like the Trinity. Now that you’ve opened your box to see
what’s inside, let’s make sure you got everything that’s supposed to be
there:

1.1-What You Should Have in the Box

1. Your New Trinity                 4. Trinity Suction Cup Mount


































2. Trinity OBD‐II Connector        5. Trinity Drivers CD for Windows






























3. USB Cable

1.2- Installing Trinity Suction Cup Mount

The Trinity comes with a suction cup mount designed specifically for
windshield mounting of the device.



Step 1: Installation couldn’t be easier, just line up the 4 points on the
suction cup to the 4 slots on the back of the Trinity and you’re in!



For an extra stable connection that will avoid “wobble” on the mount, try
bending a “U” into the bendable section of the mount so the Trinity sits
its weight on it on the dash. You will point the open end of the “U”
toward the windshield and the bottom toward the dash.

1.3- Installing Optional Gauge Mount

In certain states ,such as California, having any item mounted to your
windshield may be considered an obstruction‐ additionally some Trinity
users may already have an A pillar pod (for analog gauges). DiabloSport
offers an optional gauge mount system for Trinity that allows the unit to
be installed into and 2 1/16th  A‐pillar pod. Visit

www.diablosport.com

for more information on this accessory and where it is available for
purchase.

1.4- OBD-II Cable Connection
