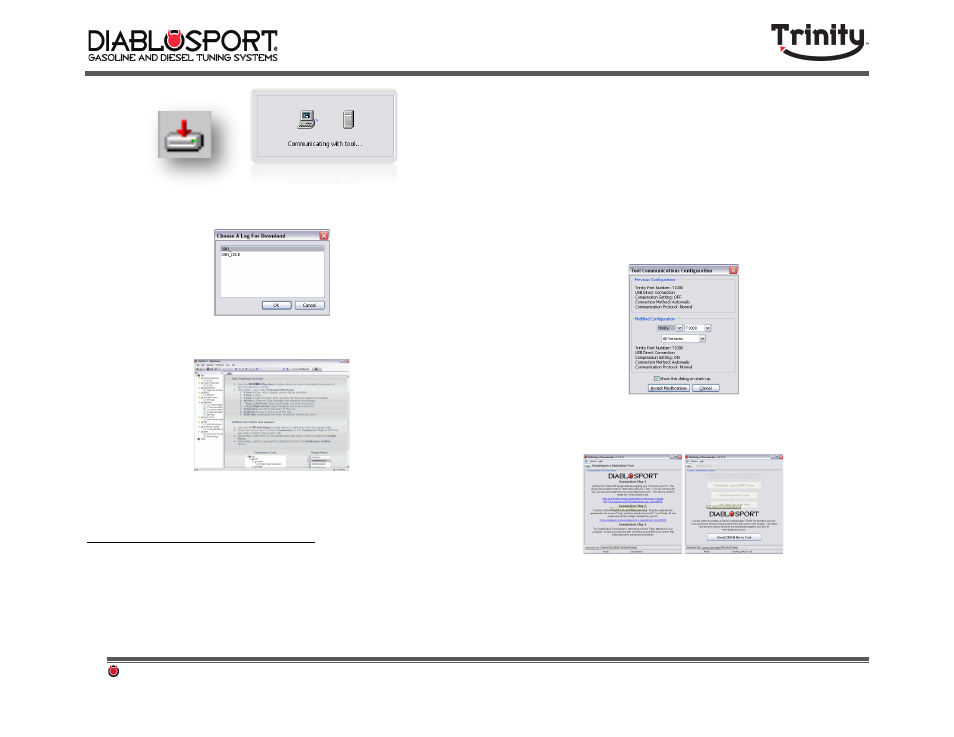

Step 4:
Choose
the
log
you
wish
to
upload
(choose
log
pic)



Step 5:
Carefully
read
the
instructions
displayed
on
screen.



Step 6:
Click
play
and
select
the
parameters
you
wish
to
view.
You
will
see

something
similar
to
playback
picture.


7.6- Uploading/Downloading Tunes

The DiabloSport Trinity allows users to install custom tuning options for
any bolt on setup they may have (on gasoline applications). In order to
do this the Trinity must have a backup file already saved into its memory.
Make  sure  that  the  Trinity  has  saved  an  “Original  Backup”  from  your
vehicle before starting this process.

If you are getting a custom tune via mail order the CMR dealer making
the tune will always require an original backup from your vehicle before
they can make the program. This is where we will start the custom tune
loading process.

Step 1:
Plug
your
Trinity
into
the
USB
port
on
your
PC
and
then
open
the

DS
 Downloader
 by
 double
 clicking
 the
 desktop
 icon.

 Under
 “Modified

Configuration”
select
Trinity
and
then
part
number
T1000,
“All
Versions”
is

the
 default
 in
 the
 lower
 pull
 down
 menu.
 Now
 press
 “Accept

Modifications”.


Step 2:
Now
Click
“Get
Tune
File
from
Tool”.
The
DS
Downloader
prompts

you
to
select
if
you
would
like
to
upload
the
“Original
Backup”.



Step  3:

 The
 DS
 Downloader
 needs
 you
 to
 name
 the
 file
 as
 it
 comes
 in.

Make
 sure
 to
 choose
 a
 location
 where
 you
 will
 find
 it
 (such
 as
 the

DiabloSport
folder
where
DS
downloader
is.
DS
Downloader
automatically

chooses
the
proper
file
type
this
when
the
file
is
saved.
