SECTION 5: Clearing Trouble
Codes

Sometimes your vehicle may throw a check engine light. The Trinity will
not  only  allow  you  to  view  the  OBD‐II  Trouble  code  (engine  codes  are
generally  “P”  in  OBD‐II  Designation)  but  you  can  also  view  the  full  text
code  description.  At  this  point  you  have  the  choice  to  leave  the  code
active  in  your  vehicle’s  PCM  or  you  can  clear  them.  The  Clear  trouble
codes  feature  clears  ALL  trouble  codes  found  in  the  PCM,  you  cannot
select which. Follow these easy steps to access these functions:

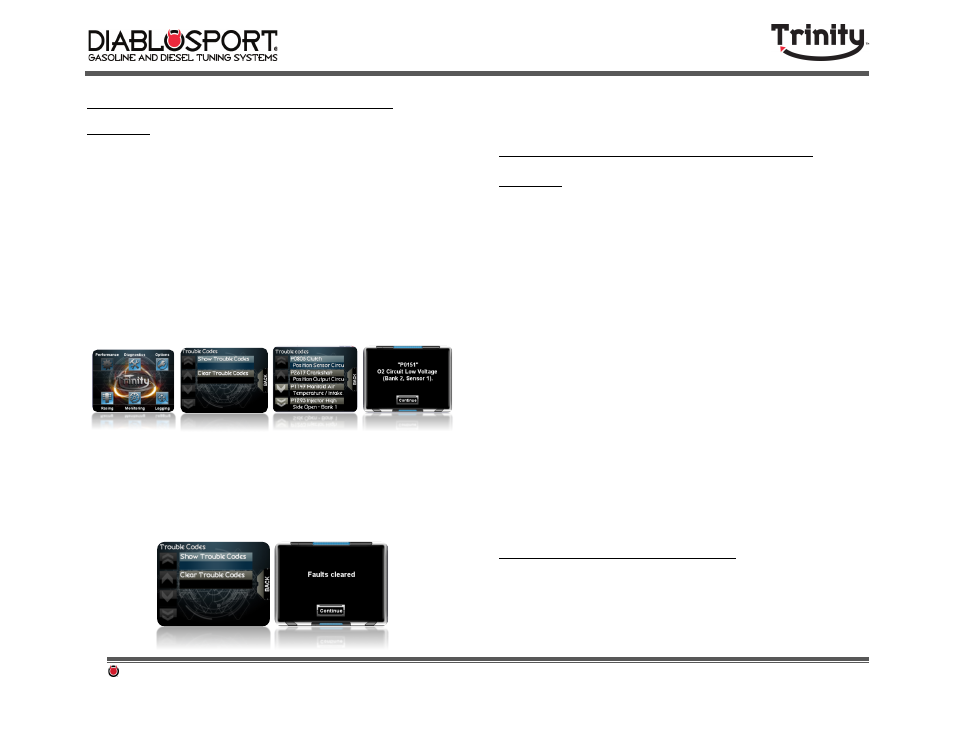

Step  1:  Select
 “Diagnostics”
 from
 the
 main
 menu
 then
 “Show
 Trouble

Codes”.
This
will
show
the
last
trouble
codes
your
vehicle’s
PCM
displayed.

Press
the
desired
trouble
code
to
see
a
full
text
description
of
that
code.



Step  2:  Once
 you
 have
 seen
 the
 trouble
 codes
 listed
 in
 your
 vehicles

computer,
you
may
want
to
clear
them.
In
order
to
do
this,
press
the
back

button
 on
 the
 right
 hand
 side
 of
 your
 Trinity’s
 screen
 and
 select
 “Clear

Trouble
Codes”
from
the
trouble
codes
menu.
The
Trinity
has
cleared
your

trouble
codes!
Press
continue…





Step  3:  You
 have
 now
 cleared
 all
 trouble
 codes
 from
 your
 vehicles

computer!



SECTION 6: Trinity Racing
Menu

In  section  2  we  discussed  the  Trinity’s  virtual  gauge  system  and  how
vehicle sensors can be displayed on the screen in real time‐ but did you
know that there is information coming from your vehicle that can allow
the Trinity to approximate all kinds of interesting read outs? One of the
most  intriguing  is  the  Virtual  Drag  Tree!  Using  parameters  like  vehicle
speed  the  Trinity  is  able  to  give  you  an  estimated  quarter  mile,  eighth
mile or 0‐60/0‐100 time trials. Keep in mind that these numbers may or
may  not  be  accurate  depending  on  variables,  but  they  sure  are  fun  to
see!

The Trinity’s virtual tree allows users to choose whether they would like
to see their reaction time (like a real world race track tree) or have the
time  trial  start  when  they  press  the  gas  from  a  stop.  There  are
advantages  to  both‐  If  you  are  using  reaction  time,  you  will  gain
experience  for  the  track  when  launching  off  the  line  while  the  motion
start will show you the time with no human error but is easier to do on
the street at a stop light or highway on‐ramp.

Let’s look at how you can access your Trinity’s virtual Drag Tree and the
different options it has for you racers out there!

6.1- The 0-60/0-100 MPH Drag Tree

The  0‐60/0‐100  Drag  tree  calculates  your  vehicle’s  0‐60  or  0‐100  MPH
time  respectively.  Let’s  explore  some  of  the  options  you  have  in  this
mode and how to use it:
