DiabloSport Trinity Comprehensive User Manual Ver. 2.04 Page 10

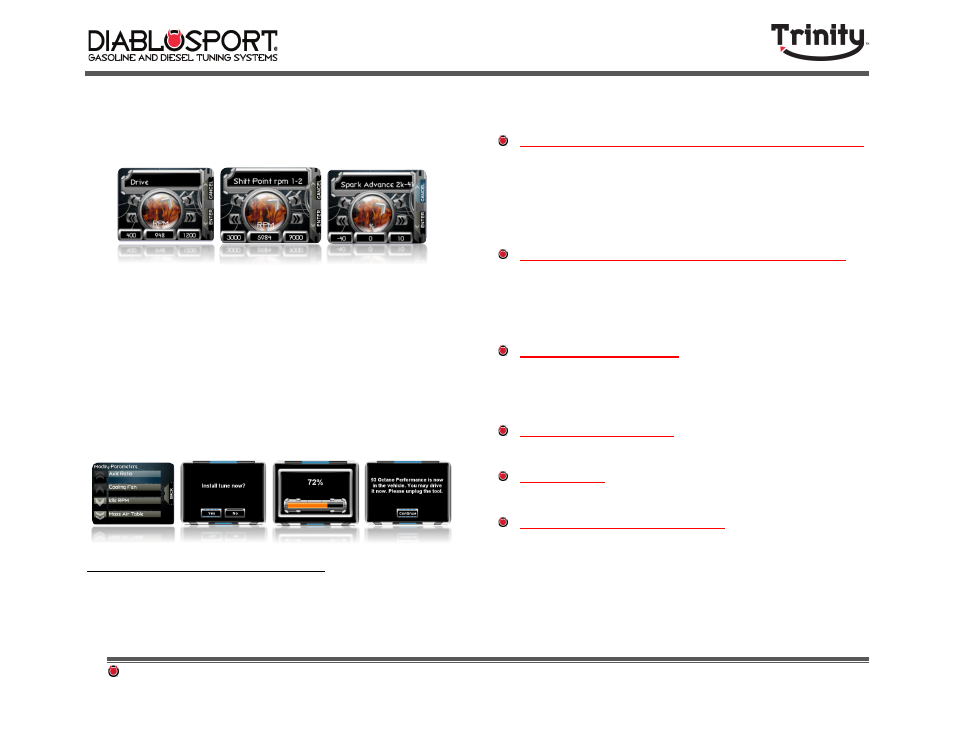

and the bottom left the minimum value‐ you can find your current setting
on the bottom center. Move the parameter to the desired location and
confirm your modification by either touching the enter button on the right
side of Trinity touch screen, pressing Button 1, or using the center button.
Step 4: Continue the process in step 3 until you are satisfied with your
modifications. When you are finished, press the “back” button on the right
hand side of the Trinity’s screen. The Trinity will ask “Install Tune Now”?
Select “yes” and the Trinity will flash your vehicle with the new modified
program. The Trinity may prompt you to “turn your key on, but don’t start
engine” and then ask you to turn the button on/off a few times. It will
begin flashing your vehicle with your modified tune. When the flash
process is complete, the Trinity will prompt you to reboot. Simply unplug
your Trinity from the OBD‐II port and plug it back in and drive your vehicle
with the new tune!
2.3- Tuning/Parameter Descriptions
The DiabloSport Trinity has the largest bank of adjustable parameters on
the market today. This list of parameters may not be available for all
applications. For more information on what is available for your vehicle,
check www.diablosport.com for a detailed list of adjustable parameters
by vehicle year/make/ model.
Spark Advance (Multiple RPM bands) ‐ Gas vehicles only:
The Trinity allows you to alter you spark advance at WOT. Depending
on your application, you will be asked to raise or lower the value in
either degrees (°) or based on a percentage (%) of total timing. To
calculate a change in percent, log the total timing at WOT. If you have
25° of timing, and need to remove 2.5°, you would pull 10%.
Fuel Tables/WOT fuel (Multiple RPM bands) ‐ Gas vehicles only this
parameter modifies your fuel delivery at WOT (Wide Open Throttle)
based on a percentage of your vehicle’s total fuel. This function works
the same way as your spark advance settings. Most incremental
changes in this setting yield a 1% increase/decrease.
Cooling Fans‐ Gas vehicles only: Cooling fan settings allow you to turn
the vehicles cooling fans on and off at different temperatures or adjust
their operation temperatures. Use this parameter with an aftermarket
thermostat.
Idle RPM‐ Gas vehicles only: Allows you to raise or lower your
vehicle's idle RPM based on RPM in drive and neutral.
Gear/Axle Ratio: Calibrates the PCM/TCM to take non‐stock rear end
gears into consideration.
Mass Air Table‐ Ford Gas vehicles only: Allows users to raise/lower
the global mass air curve from current MAF readings based on
percentage.
NOTE: If you are unsure on how to use this parameter do not modify it
without consulting DiabloSport or a CMR tuning shop.
