Page 9: Start
9
VT Quick Reference Guide
Quick Reference Guide
AL: 2006300 - ENG Rev C
OEM BUS
or Ag Leader ISOBUS
Retrofit Cable?

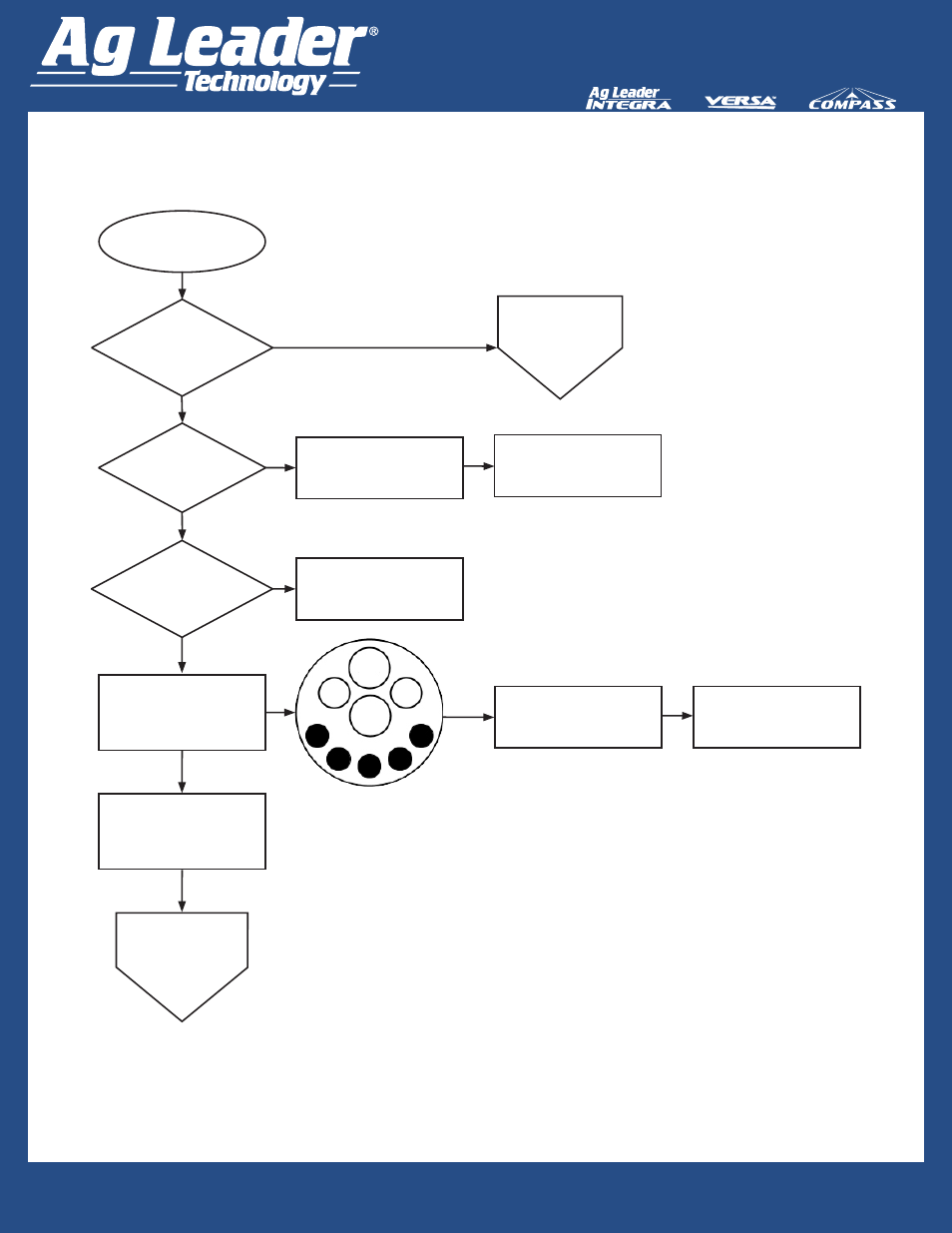

Troubleshooting Step 2: Cables and Power
Start
Connect display cable to
OEM BUS.
Is
Ag
Leader display
cable T’d into OEM
cable?
Go to Step 8:
Reload Implement
Object Pools
OEM
No
Go to Step 3:
ISOBUS Retrofit
Cable
Ag Leader ISOBUS Retrofit Cable Kit
Using voltmeter, check for
12VDC across pins 2 and 4;
and across pins 1 and 3 of
ISOBUS module plug.
Is
the
implement
plugged into the ISO plug
on the rear of the
tractor?
Yes
No
4/J
3/B
2/C
1/A
Check fuses and relays in
cab.
No
Reconnect ISO Connector.
Yes
Have Ag Leader dealer
consult ISOBUS System
Reference for support.
Contact your Tractor Dealer
for further diagnosis of tractor
circuitry.
Plug implement into the ISO
plug on the rear of the tractor.
